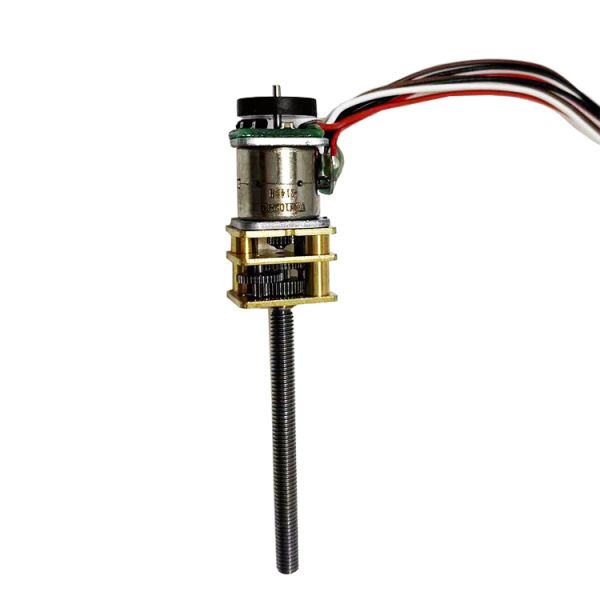

10mm micro Gear stepper motor with encoder

The motor consists of a miniature stepper motor with a diameter of 10mm and a 10 * 12 precision metal gearbox. The motor is equipped with an encoder that can accurately feedback the position to meet customer requirements. The encoder signal can also be customized according to customer needs, such as single channel/dual channel and signal
Traditional gear ratios include 1:5, 1:10, 1:20, 1:30, 1:50, 1:63, 1:89, 1:100, 1:120, 1:150, 1:210, 1:250, 1:298, 1:380, 1:420, 1:500, 1:600, 1:1000. Customers can match speed ratios according to different torque and speed requirements, and provide appropriate driving frequencies. Stepper motors can achieve the goal of determining speed and torque.
If you are unable to accurately determine the required output speed, you can send us the approximate required speed and load weight, and we can recommend similar gear ratios for testing
The motor is usually connected with wires, but can also be customized with FPC and bare pins

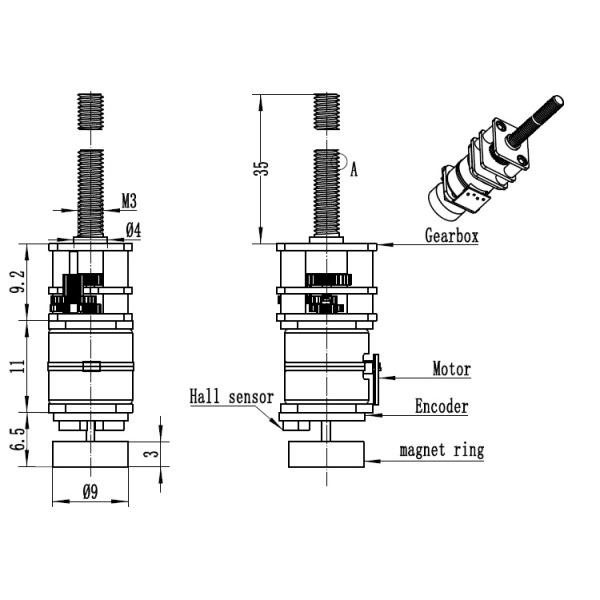

Mechanical Dimension:MM

Technical Features

This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.
The power input part and standard stepper motor can be used as probe structure, FPC, FFC, PCB cable and other forms.
Part of the output of the motor can be used in a variety of output structure, such as the circular axis, D axis, and the wire rod!

Typical Applications

• Saliva Analyzer
• Blood Analyzer
• Welding Machine
• Intelligent Security Products
• Fiber Fusion Splicer
• Digital Electronics

Specifications

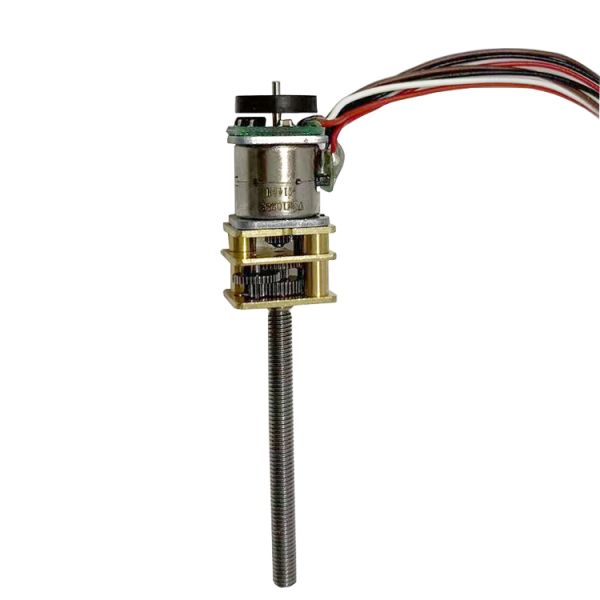

Product Detail Presentation
