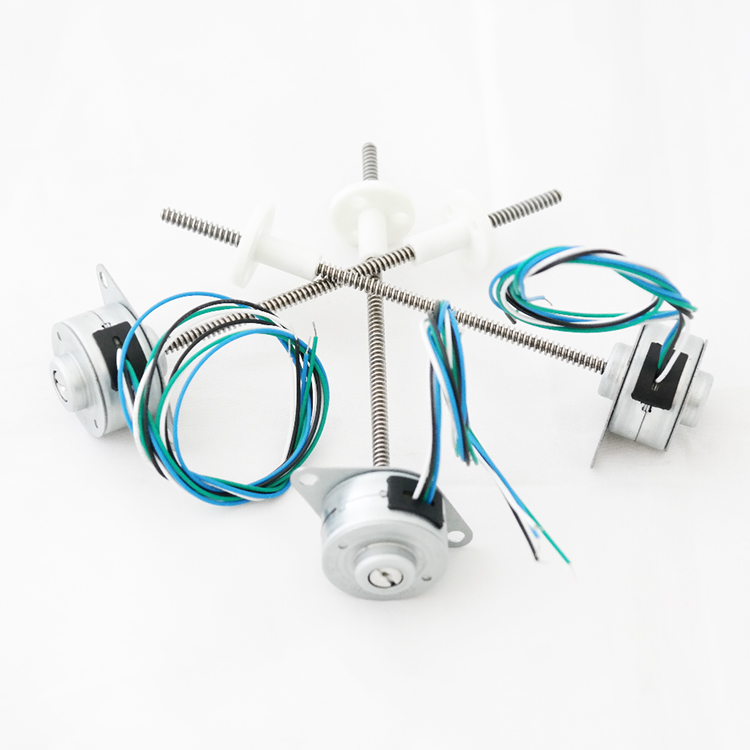

12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw
12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw
12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw
12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw
12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw
12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw
12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw
12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw
12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw
12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw
12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw
12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw
Specifications
Phase :
2
Torque :
75gf*cm
Type :
Permanent Magnet
Model Number :
25BYT48-12Q
Brand Name :
Vic-Tech
Place of Origin :
Jiangsu, China
Current / Phase :
140 mA/phase
Nema Frame Size :
25mm
Voltage :
12 V DC, 12v
Warranty :
Other
Certification :
Rohs
lead pitch :
3.5mm
push force :
5N
MOQ :
1
Price :
$12-28
Description

25BYT48-12Q micro linear stepper motor high torque 2 phase stepper motor with lead screw

12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw

Mechanical Dimension:MM

12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw

Typical Applications

  • Medical Equipment

  • Automatic Control

  • Precision Calibration

  • Precision Fluid Measurement

  • Precise Position Movement

Specifications

Product Name

25BYT48-12Q linear stepper motor

Model

 25BYT48-12Q
Excitation 2-2
Rated Voltage 12V
Phase 2
Step Angle 7.5 degree

Resistance

84Ω±10%
Current Per Phase 0.143A

Travel Per Step Avail

Holding Torque

150g.cm

Inductance Per Phase

48±20% (mH) At 1KHz(Ref)

After All Journey

98mm

Life

3000h MIN At 20℃ 100pps
Operating Temp Range -10℃~40℃
Storage Temp Range -30℃~80℃

Insulation Class

class E
Insulation Resistance >100MΩ MIN At DC 500V

lead wrie

UL1061 28#
Weight 42g

OEM & ODM Srvice

Available

Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Product Detail Presentation

12V High Torque 25mm Small Dc Motor Micro Linear Stepper Motor 2 Phase Linear Drive Motor with Lead Screw
