SM15-80-T is a 15mm diameter stepper motor attached with a M3 lead screw, bracket and brass slider.

Lead screw is regular M3 screw with 0.5mm pitch.

About the slider, it’s brass slider made from CNC.(We also have plastic slider option, which is cheaper, and customer can choose plastic slider if they want to save cost)

This biggest advantage of brass slider is that it has two linear bearing holding it and these two bearings provide strong support to the slider, make sure the slider moves smoothly even when load is high.

Thus brass slider have better stability, and the price is higher for a good reason.

If customers think the stroke(travel distance) is too long, we also have other stroke for options.

(Stroke/travel distance is determined by lead screw length)

Paremeters:

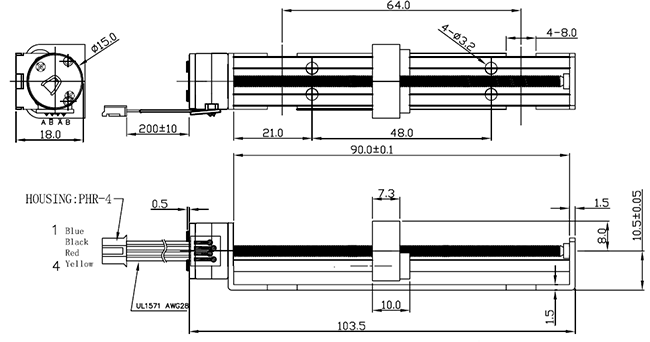

Design drawing:

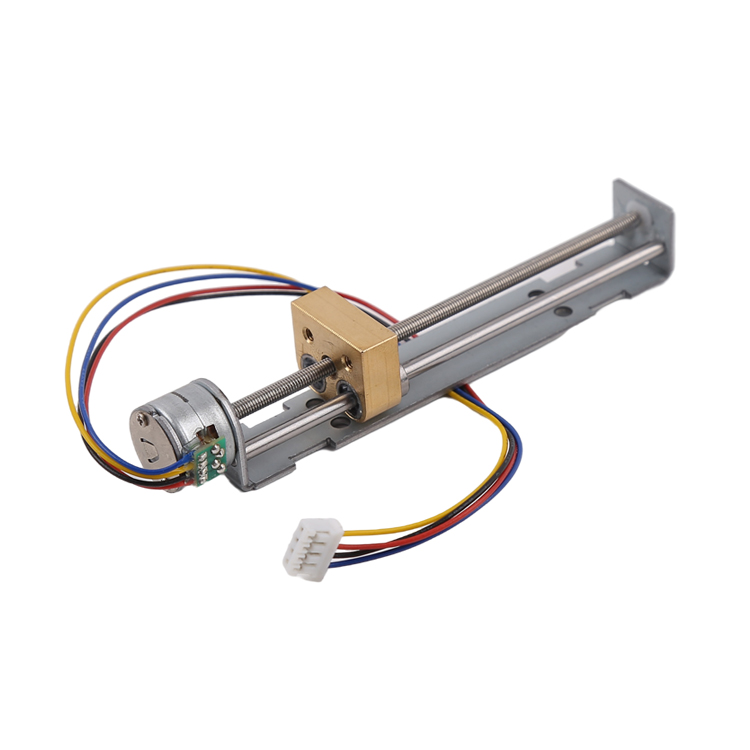

Product display:
