Long Life 3V DC 8mm Diameter Micro Stepper Motor 2 Phase 4 Wire for Camera Rotation Focus
Long Life 3V DC 8mm Diameter Micro Stepper Motor 2 Phase 4 Wire for Camera Rotation Focus
Long Life 3V DC 8mm Diameter Micro Stepper Motor 2 Phase 4 Wire for Camera Rotation Focus
Long Life 3V DC 8mm Diameter Micro Stepper Motor 2 Phase 4 Wire for Camera Rotation Focus
Long Life 3V DC 8mm Diameter Micro Stepper Motor 2 Phase 4 Wire for Camera Rotation Focus
Long Life 3V DC 8mm Diameter Micro Stepper Motor 2 Phase 4 Wire for Camera Rotation Focus
Long Life 3V DC 8mm Diameter Micro Stepper Motor 2 Phase 4 Wire for Camera Rotation Focus
Long Life 3V DC 8mm Diameter Micro Stepper Motor 2 Phase 4 Wire for Camera Rotation Focus
Long Life 3V DC 8mm Diameter Micro Stepper Motor 2 Phase 4 Wire for Camera Rotation Focus
Long Life 3V DC 8mm Diameter Micro Stepper Motor 2 Phase 4 Wire for Camera Rotation Focus
Long Life 3V DC 8mm Diameter Micro Stepper Motor 2 Phase 4 Wire for Camera Rotation Focus
Long Life 3V DC 8mm Diameter Micro Stepper Motor 2 Phase 4 Wire for Camera Rotation Focus
Specifications
Model Number :
VSM08133
Brand Name :
Vic-Tech
Place of Origin :
Jiangsu, China
Certification :
RoHS
MOQ :
1
Price :
$2-5
Phase :
2
Type :
Permanent Magnet
Current :
150 mA
Voltage :
3.3V
Resistance :
40Ω±7%
Inductance :
4.0mH25%
Exciting method :
2-2 Phase exciting
Exciting mode :
Bipolar
Rotation :
CW CCW
Outer diameter :
8MM
Body length :
8.2MM
Shaft diameter :
1MM
Step angle :
18 degrees
Starting frequency :
1000 PPS min.
Slewing frequency :
1200 PPS min.
Description
Product Overview

Long Life 3V Dc Diameter 8mm Dc mini stepper motor 2 Phase 4 Wire Micro Stepper Motor for Camera Rotation Focus

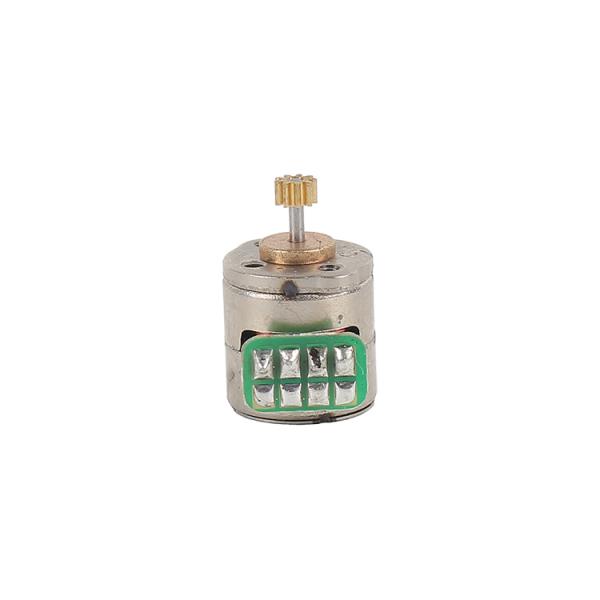

VSM08133 is a precision micro stepping motor with 8MM outer diameter, 8.2MM body length, 1MM outer shaft diameter, and 4.1mm and 3.5mm output shaft lengths. The shaft length can be changed as needed. It can be equipped with gears, pulleys, Corresponding output devices, such as worm and screw, can be customized according to customer needs The basic step angle of the motor is 18 degrees, and the motor runs 20 steps per week. Due to its small size, high precision and easy control, this miniature stepping motor is widely used in cameras, optical instruments, lenses, flashlights, precision medical equipment, automatic door locks and other fields. The input part of the motor is a PCB and a connecting wire, but it can be changed into a connecting wire needle, FPC and other forms according to customer needs. Mounting brackets can be replaced according to customer requirements. Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers! Customer needs are our efforts, please feel free to contact us!
FEATURES AT A GLANCE
VSM08133 is a precision micro stepping motor with 8MM outer diameter, 8.2MM body length, 1MM outer shaft diameter, and 4.1mm and
3.5mm output shaft lengths. The shaft length can be changed as needed. It can be equipped with gears, pulleys,
PRODUCT SPECIFICATIONS
PRODUCT NAME
8 MM MICRO STEPPER MOTOR
MODEL
VSM08133
MAX. STARTING FREQUENCY
1000 PPS min. (AT 3.3 V DC)
MAX. SLEWING FREQUENCY
1200 PPS min. (AT 3.3 V DC)
PULL IN TORQUE
0.8gf-cm min. (AT 900PPS , 3.3V DC)
PULL OUT TORQUE
1.0gf-cm min. (AT 900 PPS , 3.3V DC)
INSULATION CLASS
CLASS E FOR COILS
INSULATION STRENGTH
3.0mA (max.)100V AC FOR ONE SECOND
INSULATION RESISTENCE
1MΩ (DC 100V)
OPERATING TEMPERATURE RANGE
-30~+70 ℃
OEM & ODM SERVICE
AVAILABLE
Successful Project
Project in Thailand
Project in India
Project in Russia

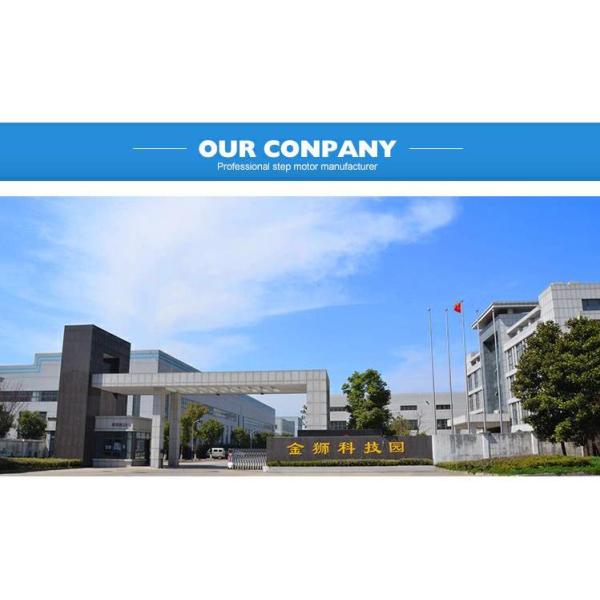

Changzhou Vic-Tech Motor Techology Ltd. is a professional manufacturers and scientific research institution, dedicated in
brushless motor development, motor application overall solutions, and motor processing and manufacturing. Our company is located
in ‘City of Chinese Micro Motor’ Changzhou, Jiangsu Province. With beautiful scenery and convenient traffic, only 1 km away from
expressway, 2 km away from railway station, 15 km away from airport. Changzhou is between two cosmopolises, Shanghai and Nanjing,
only 100km away from both cities. Convenient logistics and timely information provide conditions for our high efficient and
satisfying service. Our company has experience of researching and developing motor over sereval decades, and we have our own
developing team with experienced professional engineers and electric experts. With capacity to design new products, provide ralted
solutions based on customers’ specific requirements (including mechanical structure, drive control, motor parameters etc.) At the
same time, we have 4 manufacturer in Shenzhen, Changzhou and Dongguan to produce stepper motors, permanent-magnet motors, micro
motors, and DC motors, and all of them have passed ISO9001:2008 international quality system authentication. We have enough
capability for your big orders.
