Specifications
Model Number :
VSM10-816G
Brand Name :
Vic-Tech
Place of Origin :
Jiangsu, China
Certification :
ISO9001
MOQ :
1
Price :
$3.45-7
Phase :
2
Type :
Permanent Magnet
Current per Phase :
150 mA
Voltage :
3.3V~12V
Resistance :
40Ω±7%
Exciting method :
2-2 Phase
Gear Ratio :
1:2~1:1000
Speed :
3~1500rpm
Step angle :
18°
Lead pitch :
0.5
Shaft :
M3 screw
Rotation :
CW CCW
Motor diameter :
10mm
Resolution angle :
0.05~6 degrees
Description
Product Description


10mm dia10 mini gear motor 5V micro geared steppr motor 2 phase stepper motor and gearbox

Motor basic step angle is 18 degrees, that is, 20 steps per turn, plus the deceleration box deceleration effect, the final motor rotation angle resolution can reach 0.05~6 degrees, can be used in many requirements Precise control of the rotating position of the field. The motor is made of precious metal brushed DC motor and precision metal reducer.gear reduction ratios are: 1:2 1:5 1:10 1:15 1:20 1:30 1:36 1:50 1:63 1:67 1:89 1:100 1:110 1:150 1:172 1:210 1:250 1:275 1:298 1:380 1:420 1:500 1:600 ​​1:1000, according to your speed and torque Requires selection of the right motor for the application This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability. The power input part and standard stepper motor can be used as probe structure, FPC, FFC, PCB cable and other forms. Part of the output of the motor can be used in a variety of output structure, such as the circular axis, D axis, and the wire rod!
Specification
Model Number
VSM10-816G
Phase
2
Type
Permanent Magnet
Current / Phase
150 mA
Voltage
3.3V~12V
Resistance
40Ω±7%
Exciting method
2-2 Phase
Gear Ratio
1:2~1:1000
Certification
ISO9001
Speed
3~1500rpm
step angle
18°
lead pitch
0.5
Shaft
M3 screw
Rotation
CW CCW
Company Profile
GM12-10BY 10mm 2 phase 4 wire mini stepper motor dc Stepper geared motor for ip camera 40 Ohm DC 5.0V for medical equipment

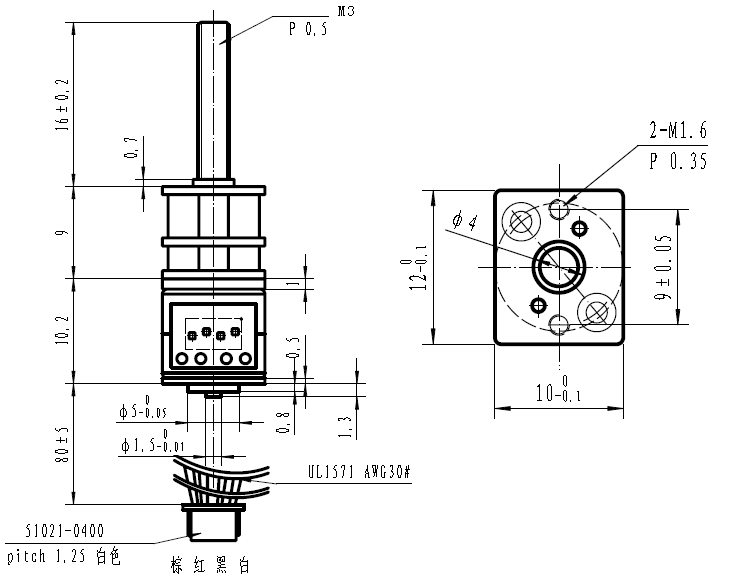

SHAFT TYPES:
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
10mm Mini Gear Motor with 150 mA Current 3.3V~12V Voltage and 40Ω±7% Resistance 2 Phase Stepper Motor
10mm Mini Gear Motor with 150 mA Current 3.3V~12V Voltage and 40Ω±7% Resistance 2 Phase Stepper Motor
10mm Mini Gear Motor with 150 mA Current 3.3V~12V Voltage and 40Ω±7% Resistance 2 Phase Stepper Motor
Changzhou Vic-Tech Motor Techology Co., Ltd has been specializing in producing micro motors and accessories since 2011.Our main products:Micro stepper motor,geared motor,underwater thruster and motor drivers and controllers. We have a R & D team with 20 years of experience in motor development, providing customers with design and development custom services. By leveraging our honesty, dependability and quality, Vic-Tech Motor aims to continue as a pioneer in the sales overseas by seeking global partners.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Domestic Market(35.00%),North America(25.00%),Northern Europe(20.00%),Southeast Asia(10.00%),Western Europe(10.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
stepper motor,linear motor,geared motor,micro motor,BLDC motor

4. why should you buy from us not from other suppliers?
Vic-Tech Motor has been specializing in producing micro motors since 2011.Our main products:Micro stepper motor,geared motor,underwater thruster and motor drivers and controllers.We provide customers with design and development custom services.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Cash;
Language Spoken:English,Chinese
