86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder
86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder
86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder
86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder
86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder
86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder
86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder
86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder
86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder
86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder
86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder
86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder
Specifications
Brand Name :
VIC-TECH
Model Number :
SM86C0905
Certification :
RoHS, ISO9001
Place of Origin :
China
MOQ :
2 Unit
Price :
$180~$150/Unit
Payment Terms :
Western Union,T/T,L/C,MoneyGram
Supply Ability :
100000 Units/year
Delivery Time :
15-30 work days
Packaging Details :
Standard export package in corrugated carton (Mass production).
Resistance :
0.45Ω/phase
Phase :
2 phases, 4 steps
Type :
Hybrid linear stepper motor
Step angle :
1.8°
Thrust :
Over 50 KG
Weight :
2.6KG
Encoder type :
Optical encoder
Encoder resolution :
1000 PPR
Encoder channels :
3 channels （A, B, Z）
Description

86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder

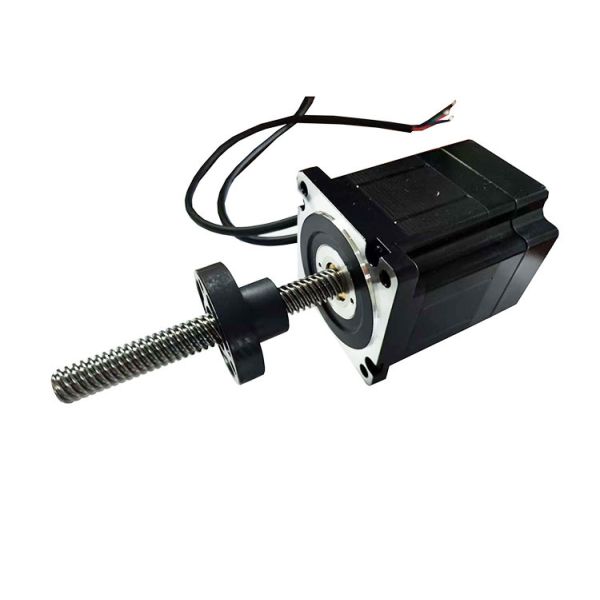

This is a NEMA34 86mm size hybrid stepper motor with Tr lead screw.

Lead screw diameter is 15.875mm and screw lead is 12.7mm.

We have different lead screw diameter and lead for you to choose, based on your project requirement on linear speed and pushing force.

With bigger lead, motor’s linear speed is faster, while pushing force will be smaller.

The lead screw length is customizable.

For the encoder, it’s optical encoder with 3 channels (Channel A, B and Z)

Channel Z is index channel.

If you don’t need Channel Z, we can make the encoder with 2 channels.

The encoder resolution is 1000 PPR, 1000 PPR means when the motor rotate one round, the encoder will generate 1000 pulse signals.

We also have different resolution for you to choose:

200 PPR / 500 PPR / 1000 PPR / 2500 PPR

Also if you don’t need encoder, we can remove it, and the unit price of the motor will be lower.

If you want to do more design change, please feel free to contact us, and provide full customization service.


Typical applications:

* Medical Equipment

* Linear Robotic Control

* Precision Calibration

* High Precision Valve

* Other Precise Position Movement

Design Layout (Unit:mm)

86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder

Parameter sheet:

Product Model No.

86C0905-EN

Motor type

Hybrid stepper motor

Motor size

86mm (NEMA34)

Screw diameter type

Tr15.875*12.7mm

Encoder type

Optical encoder

Encoder resolution

1000 PPR

Step angle

1.8°

Pushing force (300PPS)

50KG


Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Product Detail Presentation


86mm NEMA34 trapezoidal Tr lead screw linear hybrid stepper motor with optical encoder
