Specifications
Brand Name :
VIC-TECH
Model Number :
SM15-80L-T
Certification :
RoHS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 unit
Price :
$7-$15/unit
Payment Terms :
Western Union,MoneyGram，Credit Card
Supply Ability :
1000000 units/year
Delivery Time :
15-30 work days
Packaging Details :
Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box.
Type :
Permanent Magnet
Step Angle :
18°
Phase :
2 phases
Current / Phase :
800mA/PHASE
Rated Voltage :
6 V
Coil Resistance :
15±10%Ω
Thrust :
over 1 KG
Description

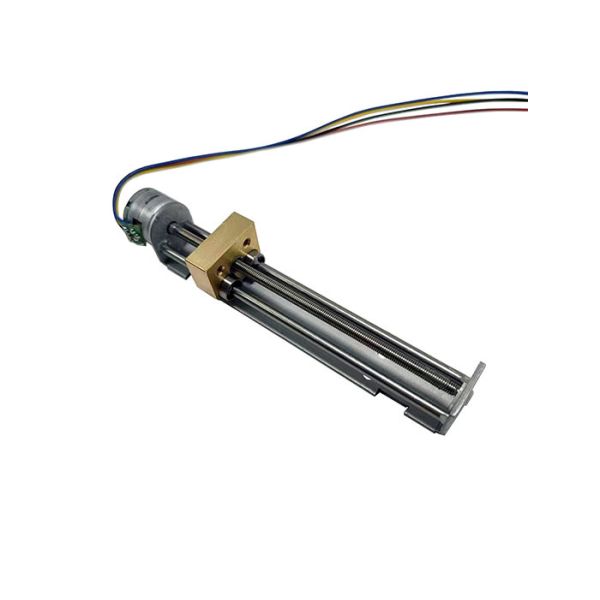

SM15-80L-T Metal Slide Linear Stepper Motor, 15mm Diameter, 2-Phase Stepper Motor, 1kg Thrust


SM15-80L-T Metal Slide Linear Stepper Motor, 15mm Diameter, 1kg Thrust


This is a 15mm linear motor. It features a copper slide and two linear bearings, significantly improving slide stability.
A plastic slide is also available.


The motor has an 18-degree step angle, with the slide rotating once every 20 steps. The step size is 0.025mm.


It uses a traditional M3*0.5P threaded lead screw shaft, so the slide moves one pitch (0.5mm) for each motor rotation.
This motor has an 80mm travel range.


This SM15-80L-T motor is ideal for precise linear control, with a slide thrust of up to 1kg (over 10N).




Mechanical Dimension:MM



SM15-80L-T Linear Stepper Motor with 800mA/Phase 6V Rated Voltage and 15±10%Ω Coil Resistance for Precision Control

Parameters:


Model No.

SM15-80L-T

Current Per Phase

400 mA/Phase

Coil Resitance

15±10% ohm/PHASE(20℃)

Rated voltage

6 V

No. of phases

2 Phases

Step Angle

18 degrees

Excitation Method

2 Phases Excitation

Drive Mode

Bipolar Drive

Pull-out Thrust

More Than 230 g AT 500PPS

Max Response frequency

More Than 1200 PPS

Max Starting Frequency

More Than 900 PPS

Insulation Class

CLASS E FOR COILS

Insulation Strength

100 V AC FOR ONE SECOND

Insulation Resistance

50mΩ DC 500 V

Operating Temperature

-0~55℃

Motor Surface Temperature

80℃ or less


1) CameraMain Application

2) Optical instruments

3) Lenses

4) Precision medical devices

5) Automatic door locks


Product Detail Presentation


SM15-80L-T Linear Stepper Motor with 800mA/Phase 6V Rated Voltage and 15±10%Ω Coil Resistance for Precision Control




Type Of Wire Connect For Reference

The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
