Specifications
Model Number :
VSM46-
Price :
$11~$30/Unit
Step angle :
7.5°
Certification :
RoHS, ISO9001
MOQ :
1Unit
Delivery Time :
15-30 work days
Coil resistance :
5Ω/phase
Payment Terms :
Western Union, T/T, L/C, MoneyGram
Motor diameter :
46 mm
Phase number :
2 phases (Bipolar)
Phase current :
1000 mA
Place of Origin :
China
Supply Ability :
100000 Units/year
Motor type :
Permanent Magnet Linear stepper motor
Brand Name :
VIC-TECH
Packaging Details :
Standard export package in corrugated carton (Mass production).
Description

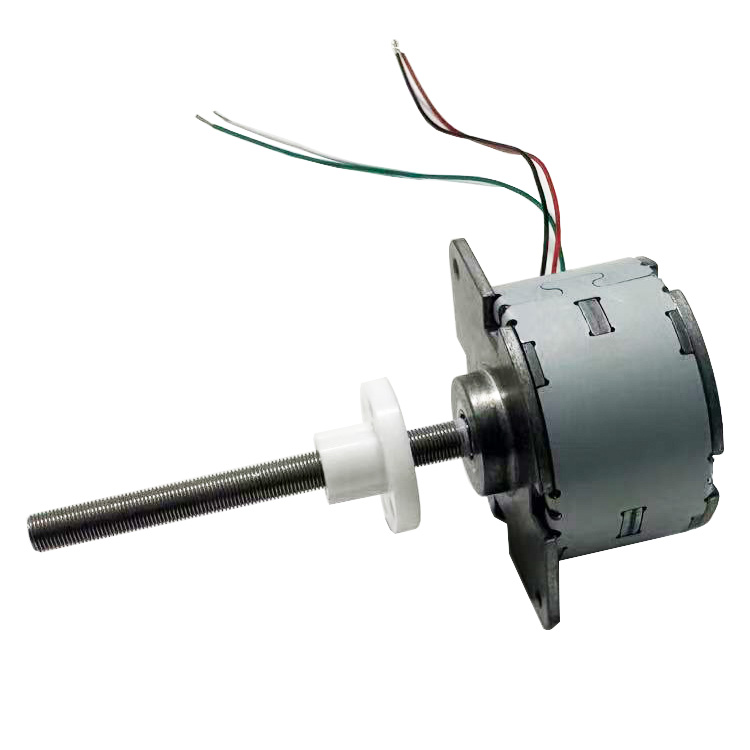

46mm diameter external drive long screw permanent magnet linear stepper motor, voltage 5V


This is a linear screw stepper motor with a diameter of 46mm, and the length of the screw is adjustable.


Due to the fact that the lead of the screw determines the linear velocity and thrust of the motor, the longer the lead, the higher the linear velocity, and the lower the linear thrust/force.


Optional screw diameter: 6.35mm, 4.77mm


Customers can customize parameters according to their own needs.

46mm diameter external drive long screw permanent magnet linear stepper motor, voltage 5V

Typical applications:

* Medical Equipment

* Linear Robotic Control

* Precision Calibration

* High Precision Valve

* Other Precise Position Movement

Plus tt has extra low noise and high stability.

46mm diameter external drive long screw permanent magnet linear stepper motor, voltage 5V

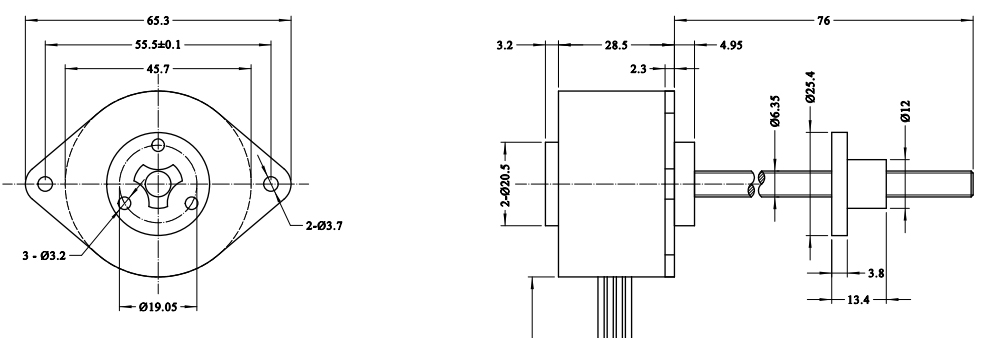

Design Layout (Unit:mm)

46mm diameter external drive long screw permanent magnet linear stepper motor, voltage 5V

Parameter sheet:

Motor type Linear stepper motor
Motor diameter 46mm
Rated voltage 5V
Phase current 1000mA
Phase resistance 5Ω/phase
Phase inductance 9mH/phase
Step angle 7.5°
Screw lead 0.6096mm (customizable)
Step length 0.0127mm/step
Screw Length 76 mm (customizable)
Phase No. 2 phases
Insulation resistanc 100MΩ(DC 500V)
Insulation chass B
Operating temp range -20~﹢55℃
Storang temp range -40~﹢100℃
Mass 220g

Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.
