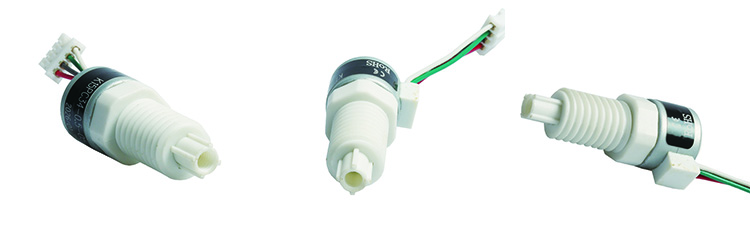

15mm diameter fixed axis linear motor

This is a 15mm diameter linear stepper motor designed specifically for high-precision linear motion. Fixed axis linear motor, with an effective stroke of 13mm for the lead screw, and the motor can also be customized according to customer needs
This motor is a 2-phase 4-wire bipolar stepper motor that can precisely control linear operation. The effective stroke of the screw can be customized according to the specific length requested by the customer
This motor has a step angle of 18 ° and a step size of 0.025 millimeters, which means that for every step taken by the motor, its stroke is 0.5 millimeters. This is crucial for high-precision control,

If you want to customize parameters such as coil resistance, cable length, travel, voltage, etc., please feel free to contact us at any time.

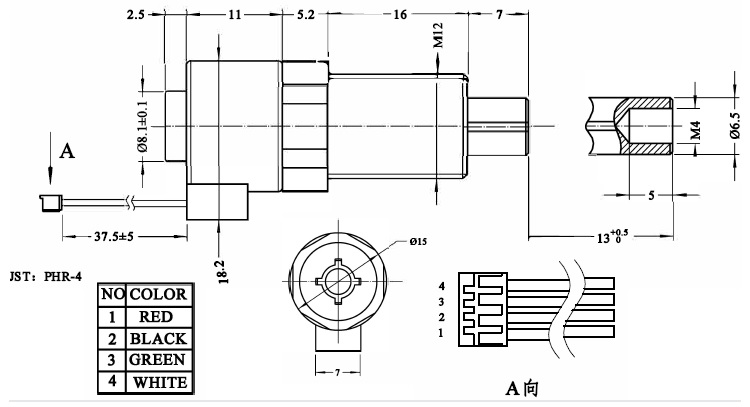

Mechanical Dimension:MM

Technical Features

This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative

movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile

machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc.

according to customer requirements.
The output part is linear.

Typical Applications

• Medical Equipment

• Automatic Control

• 3D Printer

• Precision Calibration

• Precision Fluid Measurement

• Precise Position Movement

Specifications

Customization service

The motor can customize the normal screw stroke,

Connectors and outlet boxes can be customized according to customer requirements

Competitive Advantage

• High quality and the best price.

• Fast deliver,storage company and rich inventory

• Near Shanghai port, the traffic is very convenient.
