Plastic Slider Linear Stepper Motor 2 phase stepper motor Dia 15mm With 1kg Thrust
Plastic Slider Linear Stepper Motor 2 phase stepper motor Dia 15mm With 1kg Thrust
Plastic Slider Linear Stepper Motor 2 phase stepper motor Dia 15mm With 1kg Thrust
Plastic Slider Linear Stepper Motor 2 phase stepper motor Dia 15mm With 1kg Thrust
Plastic Slider Linear Stepper Motor 2 phase stepper motor Dia 15mm With 1kg Thrust
Plastic Slider Linear Stepper Motor 2 phase stepper motor Dia 15mm With 1kg Thrust
Plastic Slider Linear Stepper Motor 2 phase stepper motor Dia 15mm With 1kg Thrust
Plastic Slider Linear Stepper Motor 2 phase stepper motor Dia 15mm With 1kg Thrust
Plastic Slider Linear Stepper Motor 2 phase stepper motor Dia 15mm With 1kg Thrust
Plastic Slider Linear Stepper Motor 2 phase stepper motor Dia 15mm With 1kg Thrust
Plastic Slider Linear Stepper Motor 2 phase stepper motor Dia 15mm With 1kg Thrust
Plastic Slider Linear Stepper Motor 2 phase stepper motor Dia 15mm With 1kg Thrust
Specifications
Brand Name :
VIC-TECH
Model Number :
SM15-80L
Certification :
RoHS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 unit
Price :
$7-$15/unit
Payment Terms :
Western Union, MoneyGram，Credit Card
Supply Ability :
1000000 units/year
Delivery Time :
15-30 work days
Packaging Details :
Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box.
Type :
Permanent Magnet
Step Angle :
18°/step
Phase :
2 phases
Current / Phase :
800mA/PHASE
Rated Voltage :
12 V DC
Coil Resistance :
15±10%Ω/PHASE(20℃)
Thrust :
over 1 KG
Description

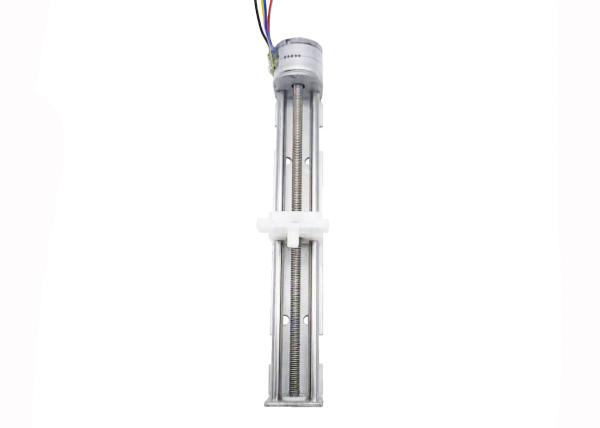

SM15-80L 2 Phases Plastic Slider Linear Stepper Motor Dia 15mm With 1kg Thrust

This is 20mm linear motor. It has a copper slider with two linear bearing, with the help of linear bearings, the stability of slider is greatly improve.

The lead screw is regular M3*0.5P thread, so when the motor rotate one turn, slider will move one pitch (0.5mm). Step angle of the motor is 18 degree, so when the motor takes 20 steps, it will rotate one turn. Step length of this motor is 0.025mm.

This motor is very useful for precise linear control, and the thrust of the slider can reach over1 KG (over 10N of thrust)

The stroke of this motor is 21mm.(stroke means how much distance it can travel from both ends)

Plastic Slider Linear Stepper Motor 2 phase stepper motor Dia 15mm With 1kg Thrust

Mechanical Dimension:MM

Plastic Slider Linear Stepper Motor 2 phase stepper motor Dia 15mm With 1kg Thrust

Parameters:

Model No.

SM15-80L

Current Per Phase

800 mA/Phase(1000pps)

Coil Resitance

15±10% ohm/PHASE(20℃)

Rated voltage

12 V DC

No. of phases

2 phases

Step Angle

18°/STEP

Excitation Method

1-2 Phases Drive

Drive Mode

Bipolar Drive

Pull-out Thrust

More Than 500 g AT 125PPS

Max Response frequency

More Than 1600 PPS

Max Starting Frequency

More Than 1100 PPS

Insulation Class

CLASS E FOR COILS

Insulation Strength

100 V AC FOR ONE SECOND

Insulation Resistance

50mΩ(DC 500 V)

Operating Temperature

-0~55℃

Motor Surface Temperature

80℃ or less


1) CameraMain Application

2) Optical instruments

3) Lenses

4) Precision medical devices

5) Automatic door locks

Product Detail Presentation

Plastic Slider Linear Stepper Motor 2 phase stepper motor Dia 15mm With 1kg Thrust

Plastic Slider Linear Stepper Motor 2 phase stepper motor Dia 15mm With 1kg Thrust

Type Of Wire Connect For Reference

The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.

Plastic Slider Linear Stepper Motor 2 phase stepper motor Dia 15mm With 1kg Thrust
