Specifications
Brand Name :
VIC-TECH
Model Number :
SM20-21L-T
Certification :
RoHS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 unit
Price :
$12-$23/unit
Payment Terms :
Western Union, MoneyGram，Credit Card
Supply Ability :
1000000 units/year
Delivery Time :
15-30 work days
Packaging Details :
Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box.
Type :
Permanent Magnet
Step Angle :
18°
Phase :
2
Current / Phase :
800mA
Rated Voltage :
12V
Coil Resistance :
30 Ω±10%
Thrust :
over 1.5 KG
Description

SM20-63L Heavy duty 63mm stroke linear actuator stepper motor with 1.5 KG thrust

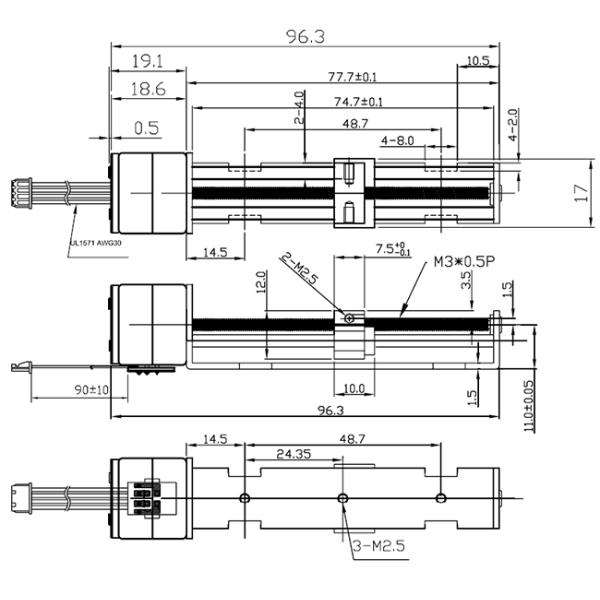

Mechanical Dimension:MM

Heavy Duty 63mm Stroke Linear Actuator Stepper Motor With 1.5 KG Thrust

Parameters:

Motor type Linear stepper Motor
Model number SM20-63L
Coil resistance 30 Ohm/phase
Step angle 18 degrees/step
Rated voltage 9~12V DC
Phase number 2 phases
Lead screw type M3 lead screw
Maximum thrust 1.5 KG
Motor diameter 20mm
Effective stroke 63mm

Main Application

1. Camear

2. Optical instruments

3. Lenses

4. Precision medical devices

5. Automatic door locks

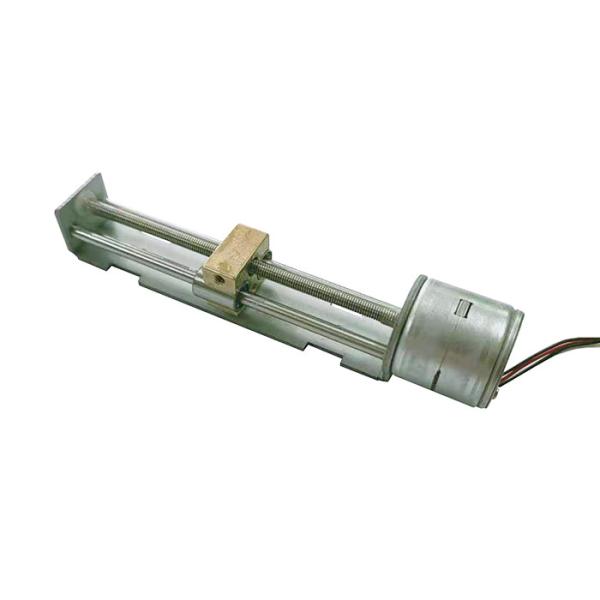

Product Detail Presentation

Heavy Duty 63mm Stroke Linear Actuator Stepper Motor With 1.5 KG Thrust

Heavy Duty 63mm Stroke Linear Actuator Stepper Motor With 1.5 KG Thrust

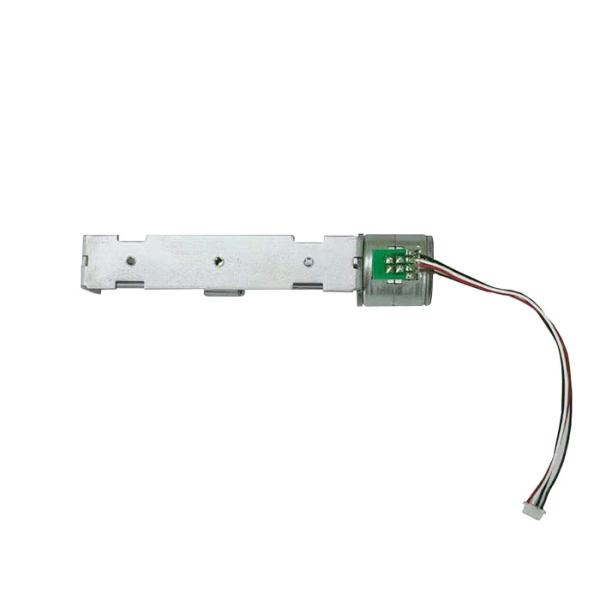

Type Of Wire Connect For Reference

The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.

Heavy Duty 63mm Stroke Linear Actuator Stepper Motor With 1.5 KG Thrust
