Specifications
Brand Name :
SECORE
Model Number :
BLS-4537
Certification :
ISO9001, RoHS
Place of Origin :
Shenzhen
MOQ :
50
Price :
Negotiated The Price
Payment Terms :
T/T, L/C, D/P
Supply Ability :
13000PCS / month
Delivery Time :
10-12 working days
Packaging Details :
100pcs per carton or as request
Working voltage :
22.2V
KV value :
400KV
Max current :
30A
Rated power :
340W
motor size :
44.7*35mm
Max torque :
1.1N.m
Max power :
900W
Application :
precision device, power tools, robotics
Description

22.2V 400KV Brushless Motor Robotics Bldc Motor For Precision Power Tool

Secore outrunner bushless motor 4537 Main parameters for reference:

Model number VOLTAGE KV NO LOAD AT MAXIMUM EFFICIENCY Stall Weight
Nominal constant rpm/v SPEED CURRENT POWER CURRENT TORQUE POWER
Volts rpm/v ±10% r/min mA w A N.m W kg
BLS-4537 22.2 400 8880 1330 340 30 1.1 900 0.15
BLS-4537 22.2 330 7330 1100 280 25 0.9 750 0.15

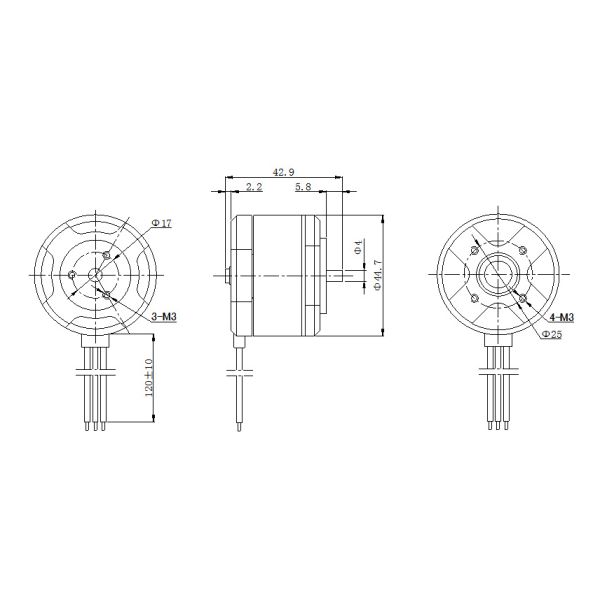

Outline drawing for model BLS-4537 robot motor:

22.2V 400KV Brushless Motor , Robotics Bldc Motor For Precision Power Tool

22.2V 400KV Brushless Motor , Robotics Bldc Motor For Precision Power Tool
