Specifications
Brand Name :
SECORE
Model Number :
BLS3640I-GB
Certification :
CE ROHS
Place of Origin :
China,Guangdong
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
15-18 working days
Packaging Details :
100pcs per carton or as request
Speed :
85rpm or customized
Rated voltage :
12V 18V 24V
Rated Torque :
1.09-1.73（NM）or as request
Model number :
BLS3640I-GB
Dimension :
∮36*40（mm）
Commutation :
brushless
Type :
brushless motor with gearbox, planetary gear motor,
Typical application :
electric vehicle, electric toy, sex toy, home automation
Description

High Torque Gear BLDC Motor With 36mm Diameter 40mm Length And 10mm Shaft

Main features:

Size: φ36.0*69mm-36.0*94mm

Reducer ratio:1:3.6~1:1608

PWM pulse wide speed range

Clockwise/counter-clockwise rotation

FG speed feedback signal

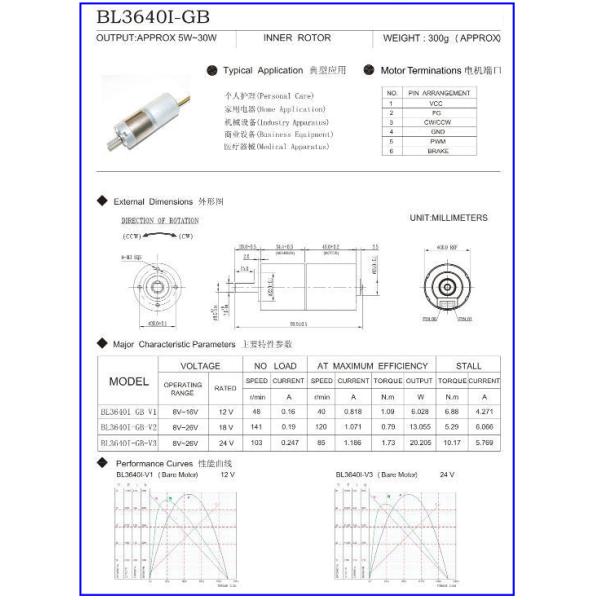

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE		 RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A N.m W N.m A
BLS3640I-GB-V1 8V~16V 12V 48 0.16 48 0.818 1.09 6.028 6.88 4.271
BLS3640I-GB-V2 8V~26V 18V 141 0.19 120 1.071 0.79 13.055 5.29 6.066
BLS3640I-GB-V3 8V~26V 24V 103 0.247 85 1.186 1.73 20.205 10.17 5.769

High Torque Brushless DC Gear Motor 24V ROHS Certificated Speed 85rpm

How many types of gear motor?

For low-speed, high-load applications, a motor(AC/DC/BLDC) with a specific reduction ratio gearbox is an inevitable choice.

There are four main types of gearboxes: planetary gearbox, worm gearbox, helical gearbox and spur gearbox . Each gearbox has its advantages and disadvantages. You will have to choose the one that's the most adapted to your motor . For example, if you are looking for a good level of efficiency, perhaps you should consider a planetary gearbox rather than a helical gearbox.

We could design the motor for you according to your actual needs.

Motor designer –ANSOFT Finite element analysis

High Torque Brushless DC Gear Motor 24V ROHS Certificated Speed 85rpmHigh Torque Brushless DC Gear Motor 24V ROHS Certificated Speed 85rpmHigh Torque Brushless DC Gear Motor 24V ROHS Certificated Speed 85rpm

Advantage of ANSOFT electromagnetic software :

Optimize motor performance and efficiency
Optimize the electromagnetic field distribution of the motor
Reduce motor cogging torque, vibration and noise
Significantly improve the reliability of the motor

Typical Application:

-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder
• Sphygmomanometer

- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors,
• Fascia gun, massage chair, treadmill
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler
• Blender, sweeper, window cleaner, small household appliances
