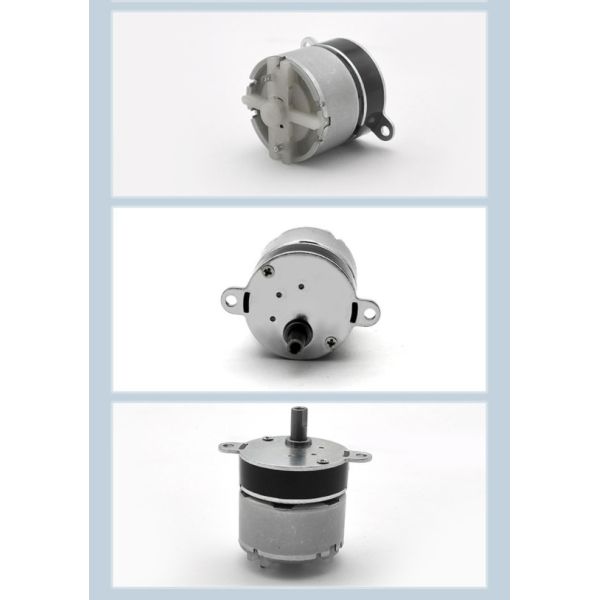

0.4W 12V 24V Robot Gear Motor 50rpm Gear Reduction Motor
0.4W 12V 24V Robot Gear Motor 50rpm Gear Reduction Motor
0.4W 12V 24V Robot Gear Motor 50rpm Gear Reduction Motor
0.4W 12V 24V Robot Gear Motor 50rpm Gear Reduction Motor
Specifications
Brand Name :
SECORE
Model Number :
SC500C
Certification :
CE ROHS
Place of Origin :
China
MOQ :
10
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
7-10 working days
Packaging Details :
50pcs per carton or as request
Speed RPM :
50RPM
Rated Voltage :
12V
Rated Power :
0.4W
Rated Torque :
2.1 g.cm
Commutation :
Brush commutating
Construction :
pernanent magnet
Product Type :
robot arm gear motor
Typical application :
Robot, robot toy, robot arm
Description

12V 24V Robot Gear Motor, 50rpm Robot Arm Metal Gear Reducing Motor

Specifications :

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
Rated voltage SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
RPM A RPM A mN.m g.cm W N.m kg.cm A
SC-500C 3.0V 52 0.12 42 0.32 0.098 1.1 0.43 0.393 3.93 1.7
6.0V 62 0.13 52 0.26 0.098 1.1 0.63 0.491 4.91 2.2
12.0V 52 0.12 46 0.22 0.197 2.1 1.22 1.276 12.76 3.2
24.0V 62 0.053 56 0.12 0.197 2.1 1.22 1.568 15.68 3.2


Dimensions:

0.4W 12V 24V Robot Gear Motor 50rpm Gear Reduction Motor

0.4W 12V 24V Robot Gear Motor 50rpm Gear Reduction Motor

What is gear motor?

A gear motor is a combination of a motor and gearbox. The addition of a gear head to a motor reduces the speed while increasing the torque output. The most important parameters in regards to gear motors are speed, torque and efficiency (%). In order to choose the most proper gear motor for your application, you must first compute the load, speed and torque requirements for your application. Secore offers a variety of spur gear motors, planetary gear motors and worm gear motors to meet different application requirements. Most of our DC motors can be complimented with one of our gearbox, to provide a highly efficient gear motor solution.
