Ventilating Fan Outer Rotor BLDC Motor D54mm 5000RPM Round 20W
Ventilating Fan Outer Rotor BLDC Motor D54mm 5000RPM Round 20W
Ventilating Fan Outer Rotor BLDC Motor D54mm 5000RPM Round 20W
Ventilating Fan Outer Rotor BLDC Motor D54mm 5000RPM Round 20W
Ventilating Fan Outer Rotor BLDC Motor D54mm 5000RPM Round 20W
Ventilating Fan Outer Rotor BLDC Motor D54mm 5000RPM Round 20W
Ventilating Fan Outer Rotor BLDC Motor D54mm 5000RPM Round 20W
Ventilating Fan Outer Rotor BLDC Motor D54mm 5000RPM Round 20W
Specifications
Brand Name :
SECORE
Model Number :
BLS-5034O
Certification :
CE ROHS
Place of Origin :
China
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
50pcs per carton or as request
No-load speed :
5000RPM
Rated Speed :
4200rpm
Rated voltage :
12V
Rated current :
1A
Rated torque :
0.02N.m
Commutation :
outerl rotor brushless
product name :
50mm round bldc motor, dc fan motor
Typical application :
exhaust fan, ventilating fan, ventilator
Description

Ventilating Fan Bldc Motor Round Brushless Dc Motor D54mm For Exhaust Fan

Specification of this Brushless DC out runner Motors :

•Model #: BLS5034O
•Voltage: 12V
•Rated Torque: 0.02N.m
•Rated Power: 12-20W
•Speed: 5000RPM

•Low Noise, long life, high durability

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED
RPM		 CURRENT
A		 SPEED
RPM		 TORQUE
gf.cm		 CURRENT
A		 TORQUE
gf.cm		 CURRENT
A
BLS-5034O 12V 5000 0.3 4200 200 1 1250 4.6

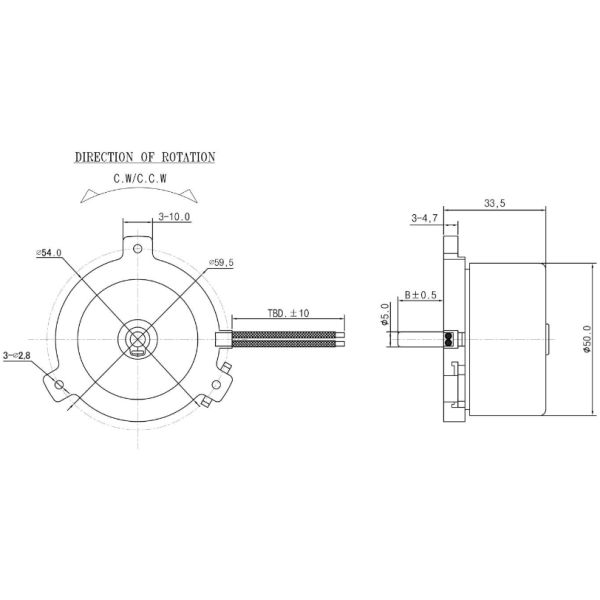

Dimension:

Ventilating Fan Outer Rotor BLDC Motor D54mm 5000RPM Round 20W

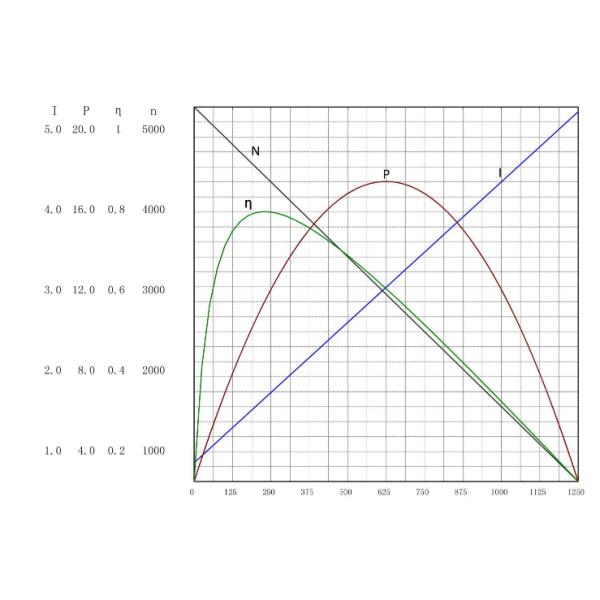

Performance curve:

Ventilating Fan Outer Rotor BLDC Motor D54mm 5000RPM Round 20W

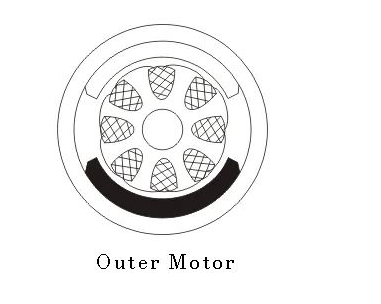

Outer rotor design

Ventilating Fan Outer Rotor BLDC Motor D54mm 5000RPM Round 20W

In an outer rotor design, the rotor surrounds windings located in the motor core. The magnets in the rotor trap the heat of the motor internally and do not allow it to escape from the motor. Motors of this design operate at lower current ratings and have low cogging torque.
