20RPM 36mm DC Brushless Gear Motor Bldc Robot Head Arm High Torque
20RPM 36mm DC Brushless Gear Motor Bldc Robot Head Arm High Torque
20RPM 36mm DC Brushless Gear Motor Bldc Robot Head Arm High Torque
20RPM 36mm DC Brushless Gear Motor Bldc Robot Head Arm High Torque
20RPM 36mm DC Brushless Gear Motor Bldc Robot Head Arm High Torque
20RPM 36mm DC Brushless Gear Motor Bldc Robot Head Arm High Torque
20RPM 36mm DC Brushless Gear Motor Bldc Robot Head Arm High Torque
20RPM 36mm DC Brushless Gear Motor Bldc Robot Head Arm High Torque
Specifications
Brand Name :
SECORE
Model Number :
BLS3650-GB
Certification :
ISO9001
Place of Origin :
Guangdong
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
12-20 working days
Packaging Details :
500pcs per carton or as request
No-load Speed :
20RPM
Rated voltage :
24V
Rated Torque :
28kg.cm
Rated current :
1.8A
Rated speed :
18rpm
motor size :
36*50mm
gearhead diameter Length :
36mm * optional L
motor type :
36mm planetary brushless gear motor
item :
mini bldc motor with reduction, high torque brushless 24v motor
Usage :
electric window, intelligent robot, automative device, robot head
Description

36mm DC Brushless Gear Motor Robot Head Arm Rotating Bldc Motor

Main features:

-Voltage: 12V 24V

-Size: φ36*50mm motor --36mm OD * optional length gearhead

- Shaft diameter: 6mm

- Shaft length: 14mm

Parameters for motor:

Model # RATED Voltage NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED CURRENT SPEED TORQUE CURRENT Out. Power TORQUE CURRENT
VDC ±10% r/min mA ±10% r/min g.cm mA W g.cm A
BLS-3650-12 12 6499 251 5299 199 1401 11.1 1051 4.1
BLS-3650-24 24 3999 81 3399 199 419 7.1 1301 2.41

Parameters with gearbox:

gear ratio 4 19 51 100 139 189 264 369 516 720
no-load Speed ( rpm ) 12V 1600 340 125 63 45 34 25 18 12 9
rated Torque (kg.cm ) 0.7 3 8 15 20 28 30 30 30 30
rated Speed ( rpm ) 1320 280 100 53 38 28 20 14 10 8
no-load Speed ( rpm ) 24V 1000 200 78 40 28 20 15 11 8 5
rated Torque (kg.cm ) 0.7 3 8 15 20 28 30 30 30 30
rated Speed ( rpm ) 850 180 65 34 24 18 13 9 7 4

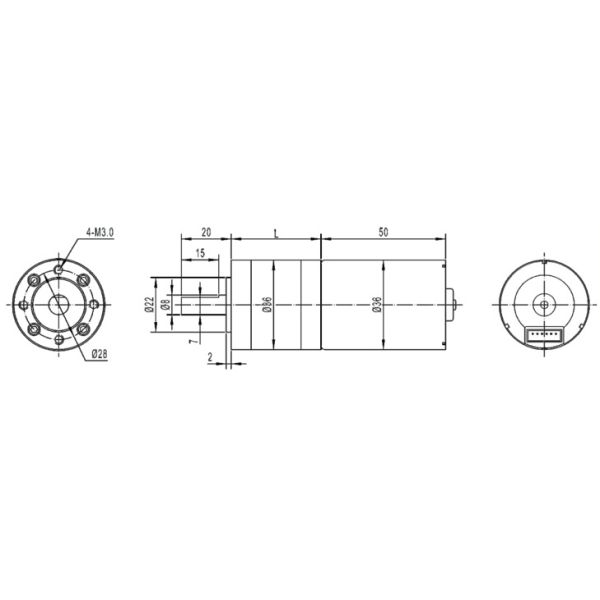

Motor mounting sizes:

20RPM 36mm DC Brushless Gear Motor Bldc Robot Head Arm High Torque

20RPM 36mm DC Brushless Gear Motor Bldc Robot Head Arm High Torque
