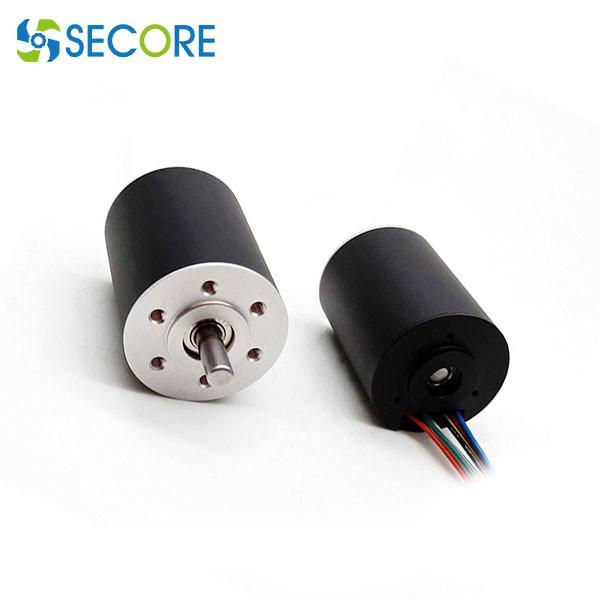

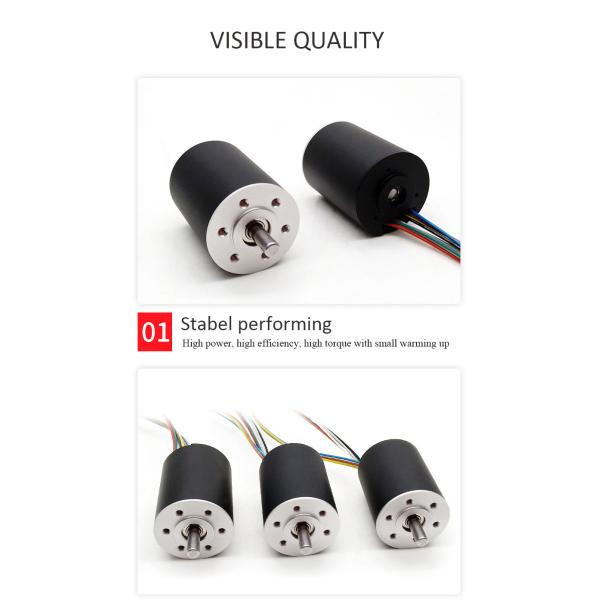

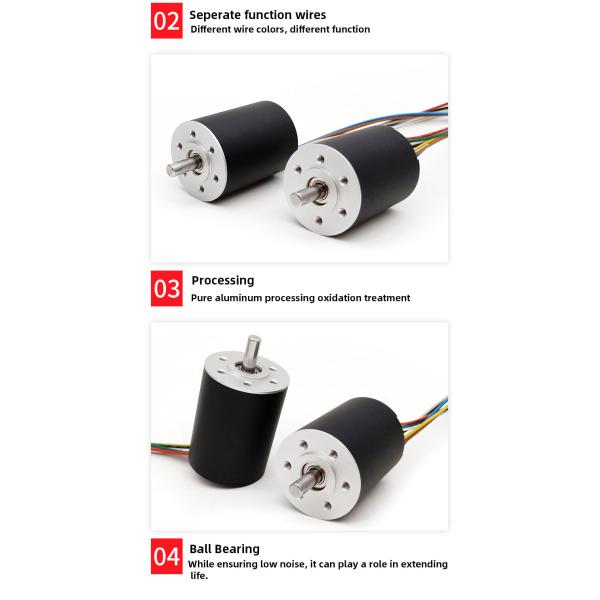

4000rpm Bldc Brushless Motor 12V 24V 36mm Scarcely Noise For Electric Lock
4000rpm Bldc Brushless Motor 12V 24V 36mm Scarcely Noise For Electric Lock
4000rpm Bldc Brushless Motor 12V 24V 36mm Scarcely Noise For Electric Lock
4000rpm Bldc Brushless Motor 12V 24V 36mm Scarcely Noise For Electric Lock
4000rpm Bldc Brushless Motor 12V 24V 36mm Scarcely Noise For Electric Lock
4000rpm Bldc Brushless Motor 12V 24V 36mm Scarcely Noise For Electric Lock
4000rpm Bldc Brushless Motor 12V 24V 36mm Scarcely Noise For Electric Lock
4000rpm Bldc Brushless Motor 12V 24V 36mm Scarcely Noise For Electric Lock
Specifications
Brand Name :
SECORE
Model Number :
BLS-3242
Certification :
CE ROHS
Place of Origin :
Shenzhen, Guangdong
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
20pcs per carton or as request
Rated voltage :
24V
No load Speed :
6466rpm
Rated speed :
3912rpm
Rated Torque :
625g.cm
Continuous current :
1.9mA
Size measure :
32*42mm ( diameter * length)
Product name :
DC bldc motor, brushless motor for door lock
Application :
electric lock, door lock, lawn mower, smart home, robot
Description

12V 24V 36mm 4000rpm Electronic Commutated Bldc Motor For Electric Lock

DC Brushless inner rotor Motors :

Size: diameter 32*42mm length

Model # RATED Voltage NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED CURRENT SPEED TORQUE CURRENT Out. Power TORQUE CURRENT
VDC ±10% r/min mA ±10% r/min g.cm mA W g.cm A
BLS-3242-12 12 5540 102 5709 942.67 4.6 45.5 616.3 3.1
BLS-3242-24 24 6466 114 3912 624.56 1.9 25.2 155.07 4.7

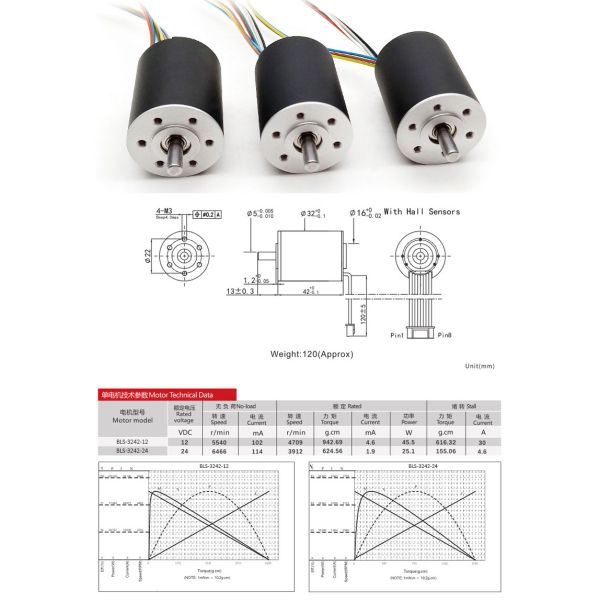

Motor dimensions


4000rpm Bldc Brushless Motor 12V 24V 36mm Scarcely Noise For Electric Lock
4000rpm Bldc Brushless Motor 12V 24V 36mm Scarcely Noise For Electric Lock

4000rpm Bldc Brushless Motor 12V 24V 36mm Scarcely Noise For Electric Lock

Questions & Answers
Q: Do you accept customization?
A: Yes, in fact, most of our products are customized according to customer needs.
Q: What can be customized?
A: Generally, you can customize the parameters of the motor such as voltage, speed and torque, as well as the length of the output shaft. It can also control the noise of the motor and enhance the life of the motor according to the special needs of customers.
Q: Can your motor be forward and reverse rotation (CW/CCW)?
A: Yes, the exchange electrode motor will rotate in the opposite direction.
Q: Is there a charge for samples?
A: Our samples are generally charged, but our purpose is not to make a profit.
Q: How long does it take to make a sample?
A: Usually about 1-2 weeks.
Q: How long does it take for mass production?
A: Generally about 4-5 weeks, please communicate with us if you need to expeditiously deal with special circumstances.
Q: What is the minimum order quantity?
A: There is no limit on the number of samples, the minimum order quantity for bulk goods is 500 units if no stock available, and the limit can be relaxed if trial production is appropriate.
Q: I don’t know how to choose a suitable motor.
A: Please contact our business and tell us the specific purpose of the motor. It is best if you can caculate the voltage, speed and torque of the motor.
