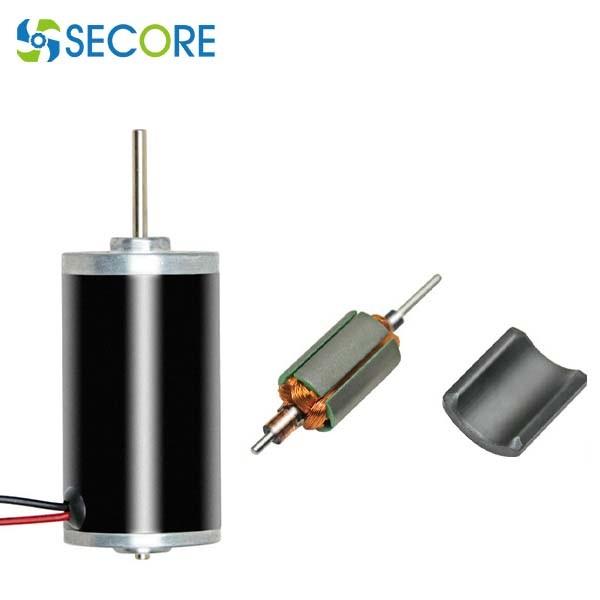

31mm Stainless Brush Dc Motor 12V Electric Curtain 3160 With Reducer
31mm Stainless Brush Dc Motor 12V Electric Curtain 3160 With Reducer
31mm Stainless Brush Dc Motor 12V Electric Curtain 3160 With Reducer
31mm Stainless Brush Dc Motor 12V Electric Curtain 3160 With Reducer
31mm Stainless Brush Dc Motor 12V Electric Curtain 3160 With Reducer
31mm Stainless Brush Dc Motor 12V Electric Curtain 3160 With Reducer
31mm Stainless Brush Dc Motor 12V Electric Curtain 3160 With Reducer
31mm Stainless Brush Dc Motor 12V Electric Curtain 3160 With Reducer
Specifications
Brand Name :
SECORE
Model Number :
DC3160
Certification :
CE ROHS
Place of Origin :
Guangdong
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
9-12 working days
Packaging Details :
500pcs per carton or as request
Product name :
31mm steel tube DC brushed motor
Model number :
DC3160
Nominal voltage :
12V
Commutation :
carbon brush / machenical
Motor size :
31mm OD * 60mm Length
No load speed :
8000rpm
Rated speed :
7100rpm
Application :
Money counter, mixer, mincer
Rated torque :
550g.cm
Power :
25W
Description

31mm stainless brush dc motor low noise 12V 3160 electric curtain brushed motor equip with reduce gearbox

Main specification cases:

Model Reference Number: DC3160
Voltage range: DC 12V, 24V
High Speed: 3530rpm to 9000rpm , or tailor-made
Features: High speed, high torque, steady running, low noise


DC brushed motor applies for money counter, blender, shreeder, mixer, mincer etc.

Product name Mechanical commutated brush dc motor
Case Material Stainless steel
Voltage (VDC) 12V-24V
Speed (RPM) 5000-8000
Motor dimension 31mm*60mm
Shaft diameter 5mm
Shaft length 15mm
Motor overall length 79mm approx include shaft
Rated current 0.65A

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY AT MAXIMUM POWER STALL
SPEED
RPM		 CURRENT
A		 SPEED
RPM		 TORQUE
gf.cm		 CURRENT
A		 SPEED
RPM		 TORQUE
gf.cm		 POWER
W		 TORQUE
gf.cm		 CURRENT
A
DC-3160 12 8000 0.35 7100 550 0.65 6500 550 35 1300 4.6
DC-3160 24 5000 0.25 4100 650 0.45 3800 650 30 1600 2.6

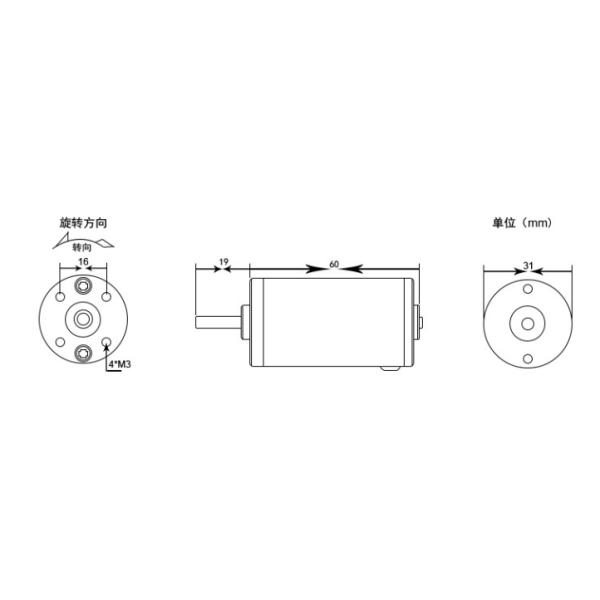

Motor dimensions

31mm Stainless Brush Dc Motor 12V Electric Curtain 3160 With Reducer

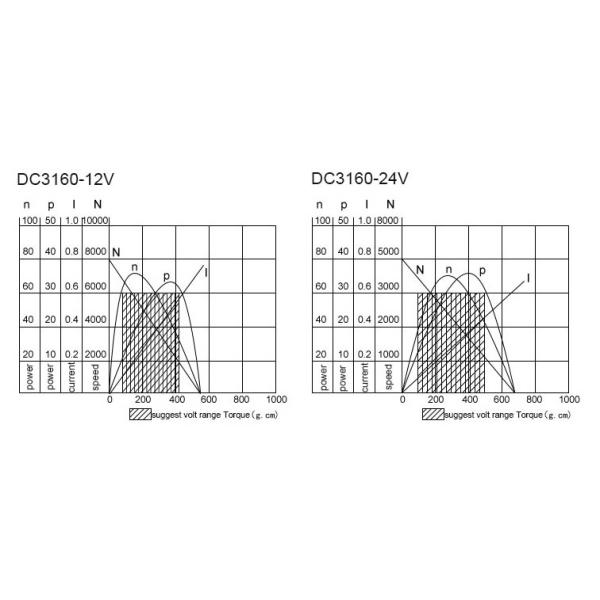

Performance curve

31mm Stainless Brush Dc Motor 12V Electric Curtain 3160 With Reducer

Determine the most suitable motor according to different movement:

  • For applications that run continuously and rarely shift gears, an AC series motor is a better choice.
  • For discontinuous dynamic applications, brushed DC motors or brushless DC motors are ideal.
  • For low-speed and high-load applications, a geared motor is an inevitable choice, that is: AC series motor/DC motor + reducer with a specific reduction ratio.
  • For applications that require stepless speed regulation, brushless DC motors are the best choice.
  • For applications that require precise positioning, stepper motors are a better choice.

Typical Application

Electric toothbrush Electric toys Electric tools Electric callus removers
Robot vacuum cleaner Model railways Treadmill Automobile electric components
Semiconductors Office equipment Power Hand Tool Document handling equipment
