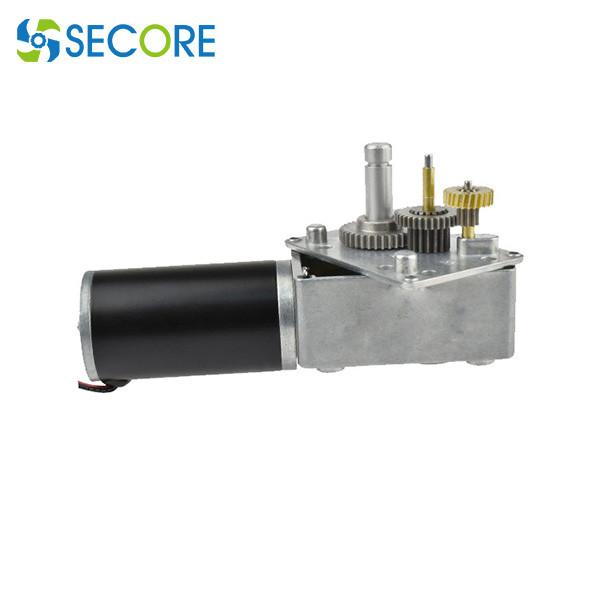

7NM 12V Reversible Adjustable Gear Motor High Torque Self Lock
7NM 12V Reversible Adjustable Gear Motor High Torque Self Lock
7NM 12V Reversible Adjustable Gear Motor High Torque Self Lock
7NM 12V Reversible Adjustable Gear Motor High Torque Self Lock
7NM 12V Reversible Adjustable Gear Motor High Torque Self Lock
7NM 12V Reversible Adjustable Gear Motor High Torque Self Lock
Specifications
Brand Name :
SECORE
Model Number :
SC3157-5840WG
Certification :
ISO9001
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
100pcs per carton or as request
No-load speed :
5rpm
Loaded Speed :
4rpm
Rated voltage :
24V
No-load current :
0.1A
commutation :
brush
Rated torque :
70kg.cm / 7N.m
loaded current :
1.6A
rated power :
2.93W
Stall torque :
70kg.cm
Stall current :
1.4A
Product Type :
5RPM Gear motor, dc high torque reducer motor
Typical application :
motorized curtain, Electric curtain, smart robot
Description

12V High Torque Speed Adjustable Reversible Gear Motor, 7N.M Self Lock Worm Geared Motor

Main features:

Motor type: 24V high torque worm gear motor
Diameter of Gearbox: 58mm*40mm *27mm

Voltage Rated V 24V
Reducer Ratio i:1 17 31 50 100 200 290 505 670
Size L mm L58*W40*H27
No Load Speed rpm 200 110 70 35 17 12 7 5
Current A ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1
Rated load Speed rpm 150 80 50 27 13 9 5 4
Torque Kgf.cm 2.7 5 8 16 32 46 70 70
Current A ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6
Output W 4.24 4.19 4.19 4.52 4.36 4.34 3.66 2.93
Stall Torque Kgf.cm 4.4 8 13 25 51 70 70 70
Current A 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4
Weight g 365



Gear motor dimensions:

7NM 12V Reversible Adjustable Gear Motor High Torque Self Lock

7NM 12V Reversible Adjustable Gear Motor High Torque Self Lock

7NM 12V Reversible Adjustable Gear Motor High Torque Self Lock

7NM 12V Reversible Adjustable Gear Motor High Torque Self Lock

7NM 12V Reversible Adjustable Gear Motor High Torque Self Lock
