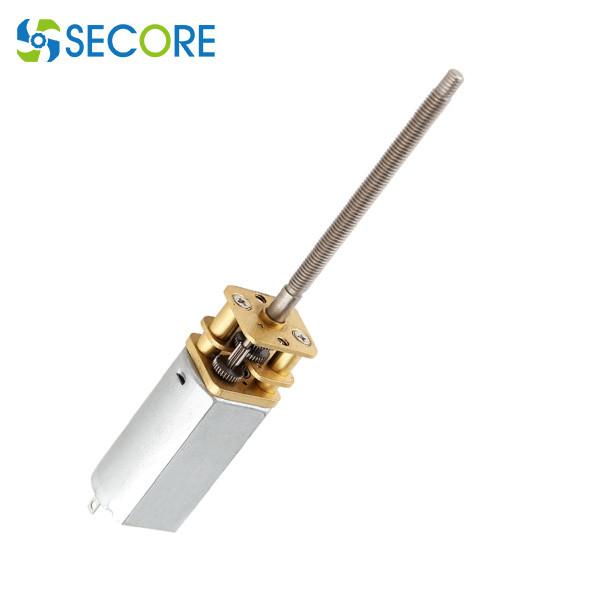

36mm Shaft Thread Gear Motor 6V 550rpm For Aircraft Undercarriage
36mm Shaft Thread Gear Motor 6V 550rpm For Aircraft Undercarriage
36mm Shaft Thread Gear Motor 6V 550rpm For Aircraft Undercarriage
36mm Shaft Thread Gear Motor 6V 550rpm For Aircraft Undercarriage
36mm Shaft Thread Gear Motor 6V 550rpm For Aircraft Undercarriage
36mm Shaft Thread Gear Motor 6V 550rpm For Aircraft Undercarriage
36mm Shaft Thread Gear Motor 6V 550rpm For Aircraft Undercarriage
36mm Shaft Thread Gear Motor 6V 550rpm For Aircraft Undercarriage
Specifications
Brand Name :
SECORE
Model Number :
SC13-050GM
Certification :
CE ROHS
Place of Origin :
Guangdong
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
100pcs per carton or as request
No-load speed :
550rpm
Loaded Speed :
400rpm
Rated voltage :
6V
continuous current :
0.16A
No-load current :
160mA
commutation :
brush
Rated torque :
400g.cm
loaded current :
900mA
Stall torque :
1.5kg.cm
Stall current :
3.3A
Type :
Gear motor, dc reducer motor
Typical application :
model aircraft undercarriage
Description

6V 25g Lightweight 36mm Long Shaft Thread Gear Motor For Model Aircraft Landing undercarriage and pull rod steering

Main features:

Motor type: Brush commutated DC gear motor
Diameter: Gearbox: 9mm*12mm *37.9mm

Volt
6V ( 3v to 24v )
No-Load Speed
550rpm
Rated Speed
4000rpm
Rated Torque
400g.cm
Application
Pull rod steering motor, Model Aircraft Landing Gear


Gear motor dimensions:

36mm Shaft Thread Gear Motor 6V 550rpm For Aircraft Undercarriage

Rated voltage
VDC		 No-load speed
r/min		 No-load current
mA		 Rated torque
g.cm		 Rated speed Rated current
mA		 Stall torque
kg.cm		 Stall current
mA
24 450 85 420 340 240 1.9 450
12 225 65 210 170 200 0.9 400
9 170 40 150 125 180 0.7 350
12 700 150 460 590 430 3 3200
9 520 130 340 440 390 2.5 2600
6 350 95 230 295 310 1.5 1800

Provide motor size, lead requirement, working voltage, no-load conversion, no-load current, load, stall current, etc, TO TAILOR YOUR MOTOR.

36mm Shaft Thread Gear Motor 6V 550rpm For Aircraft Undercarriage

Explanation of motor related parameters:
1. No-load speed: the speed at which the motor is normally energized and without load. (Unit: rpm or revolution/minute or r/min)
2. No-load current: the current when the motor is normally energized without load. (Unit: mA mA)
3. Load Torque: the rated torque during the motor load test, which is only used for test reference; (unit: g-cm grams per centimeter or kg-cm kg per centimeter)
4. Load speed: the speed of the motor under load torque. (Unit: rpm or revolution/minute or r/min)
5. Load current: the current of the motor under load torque. (Unit: mA milliampere or A amp)
6. Locked-rotor torque: also called starting torque, which is the maximum torque standard that the motor can withstand. If the torque is exceeded, the motor will stop or lock
(Unit: g-cm grams per centimeter or kg-cm kilograms per centimeter)
7. Locked-rotor current: also called starting current, which is the maximum current when the motor is blocked and stopped; (unit: mA or A)
