12V 24V 300rpm Quiet Brushless Gear Motor Ball Bearing For Peristaltic Pump
12V 24V 300rpm Quiet Brushless Gear Motor Ball Bearing For Peristaltic Pump
12V 24V 300rpm Quiet Brushless Gear Motor Ball Bearing For Peristaltic Pump
12V 24V 300rpm Quiet Brushless Gear Motor Ball Bearing For Peristaltic Pump
12V 24V 300rpm Quiet Brushless Gear Motor Ball Bearing For Peristaltic Pump
12V 24V 300rpm Quiet Brushless Gear Motor Ball Bearing For Peristaltic Pump
12V 24V 300rpm Quiet Brushless Gear Motor Ball Bearing For Peristaltic Pump
12V 24V 300rpm Quiet Brushless Gear Motor Ball Bearing For Peristaltic Pump
Specifications
Brand Name :
SECORE
Model Number :
BL-2680
Certification :
CE ROHS
Place of Origin :
China
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
50pcs per carton or as request
No-load speed :
600RPM
Rated Speed :
300rpm
Rated voltage :
12V or 24V per request
Rated torque :
1.3N.m
Motor size :
28mm*60mm
Output shaft :
4mm or 6.35mm OD with flat
Typical usage :
Peristaltic pump, walking robot
Noise :
< 45dB
Description

12V EC Pump Motor 24V 300rpm Quiet Brushless Gear Motor For Peristaltic Pump

Specification of Secore BL2860 Brushless outrunner Motor :

•Model #: BL-2860
•Voltage: 12V, 24V or as per request
• Bearing: Ball bearing

• Speed: 300 RPM

•Low Noise, long life, high durability

•Optional driver to be equipped

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED
RPM		 CURRENT
A		 SPEED
RPM		 TORQUE
N.m		 CURRENT
A		 TORQUE
N.m		 CURRENT
A
BL-2860 12V 600 0.25 300 1.3 2.2 6.2 4.0

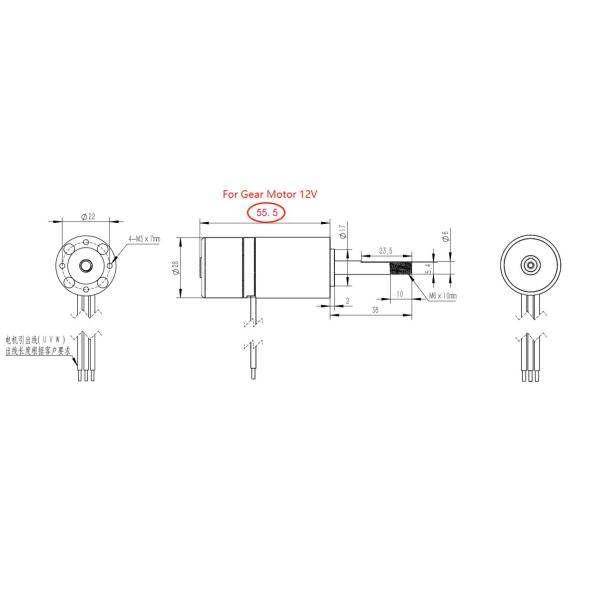

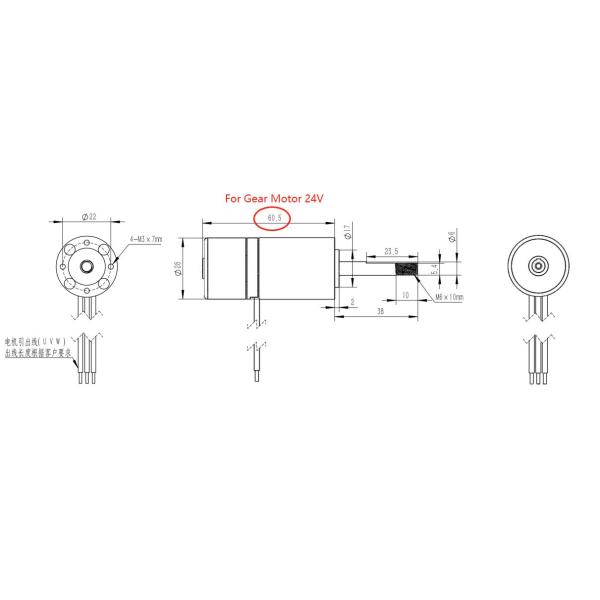

Dimension:

12V 24V 300rpm Quiet Brushless Gear Motor Ball Bearing For Peristaltic Pump

12V 24V 300rpm Quiet Brushless Gear Motor Ball Bearing For Peristaltic Pump
