12v 32mm DC Metal Gear Motor, 24v Revolving Light Reduction Gear Motor 55rpm
12v 32mm DC Metal Gear Motor, 24v Revolving Light Reduction Gear Motor 55rpm
12v 32mm DC Metal Gear Motor, 24v Revolving Light Reduction Gear Motor 55rpm
12v 32mm DC Metal Gear Motor, 24v Revolving Light Reduction Gear Motor 55rpm
12v 32mm DC Metal Gear Motor, 24v Revolving Light Reduction Gear Motor 55rpm
12v 32mm DC Metal Gear Motor, 24v Revolving Light Reduction Gear Motor 55rpm
Specifications
Brand Name :
SECORE
Model Number :
DC2837-32GM
Certification :
CE ROHS
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
7-12 working days
Packaging Details :
100pcs per carton or as request
Model number :
DC2837-32GM
Operating voltage :
12V 24V
Gearbox size :
32mm diameter * 15-28.5mm length
Motor size :
27.8mm * 37.5mm
Rated load speed :
55rpm
Rated torque :
5kgf.cm ( 0.5N.m )
motor type :
brush, brushless optional
Application :
revolving light, rotating light, stage light
Description

12v 32mm Factory Dc Metal Gear Motor, 24v Revolving Light Reduction Gear Motor 55rpm

Gearbox specification:

MODEL# Voltage
VDC		 NO LOAD AT LOAD STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT POWER
±10% r/min mA ±10% r/min mA gf.cm gf.cm A W
DC2837 12 13000 200 11260 1160 90 350 6.5 19.7
24 7800 90 6100 330 90 290 1.2 7.2
Motor parameters:
MODEL# DC2837-32GM Free load speed Rated speed Rated torque Stall torque
Voltage 12V R/Min R/Min kg.cm kg.cm
Gear ratio 5.8 ( 15mm ) 2200 1920 0.4 2.9
17 ( 17.7mm ) 750 650 1.0 7.8
52 ( 20.4mm ) 250 310 3.0 21.0
105 ( 23.1mm ) 120 105 5.0 38.0
278 ( 25.8mm ) 45 40 6.0 45.0
465 ( 25.8mm ) 28 24 8.0 60.0
732 ( 28.5mm ) 18 15 8.0 80.0
1397 ( 28.5mm ) 9 7.9 8.0 80.0
MODEL# DC2837-32GM Free load speed Rated speed Rated torque Stall torque
Voltage 24V R/Min R/Min kg.cm kg.cm
Gear ratio 5.8 ( 15mm ) 1300 1050 0.4 1.5
17 ( 17.7mm ) 450 350 1.0 4.2
52 ( 20.4mm ) 150 115 3.0 7.0
105 ( 23.1mm ) 70 55 5.0 21.0
278 ( 25.8mm ) 28 22 5.0 50.0
465 ( 25.8mm ) 17 13 8.0 60.0
732 ( 28.5mm ) 11 8 8.0 80.0
1397 ( 28.5mm ) 5.5 4.2 8.0 80.0

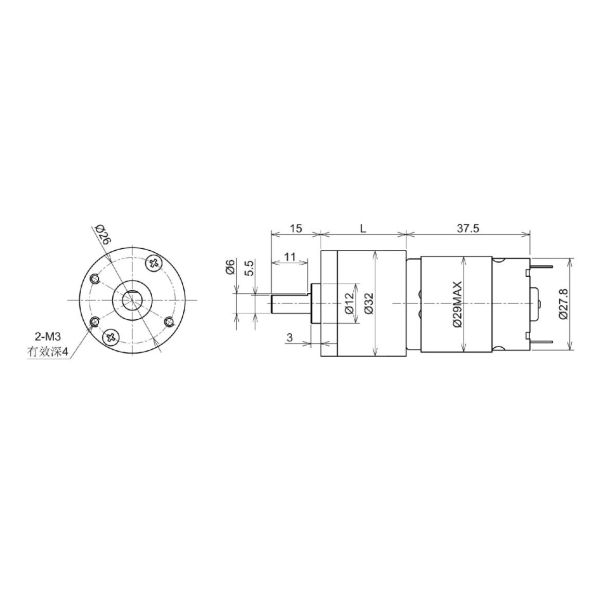

Mounting dimensions:

12v 32mm DC Metal Gear Motor, 24v Revolving Light Reduction Gear Motor 55rpm

Application cases:

12v 32mm DC Metal Gear Motor, 24v Revolving Light Reduction Gear Motor 55rpm
