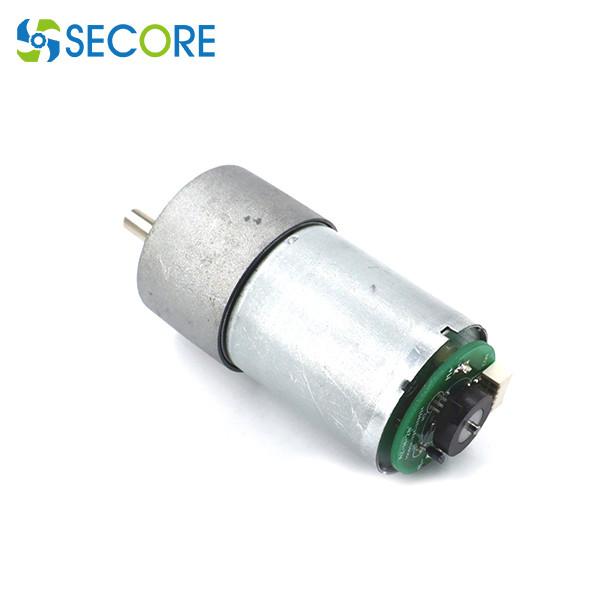

90rpm Door Lock Gear Motor 12V 24V Dia 37mm With Encoder
90rpm Door Lock Gear Motor 12V 24V Dia 37mm With Encoder
90rpm Door Lock Gear Motor 12V 24V Dia 37mm With Encoder
90rpm Door Lock Gear Motor 12V 24V Dia 37mm With Encoder
90rpm Door Lock Gear Motor 12V 24V Dia 37mm With Encoder
90rpm Door Lock Gear Motor 12V 24V Dia 37mm With Encoder
90rpm Door Lock Gear Motor 12V 24V Dia 37mm With Encoder
90rpm Door Lock Gear Motor 12V 24V Dia 37mm With Encoder
90rpm Door Lock Gear Motor 12V 24V Dia 37mm With Encoder
90rpm Door Lock Gear Motor 12V 24V Dia 37mm With Encoder
90rpm Door Lock Gear Motor 12V 24V Dia 37mm With Encoder
90rpm Door Lock Gear Motor 12V 24V Dia 37mm With Encoder
Specifications
Brand Name :
SECORE
Model Number :
DC3773-GB
Certification :
CE ROHS
Place of Origin :
China
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
100pcs per carton or as request
Speed :
90rpm
continuous current :
0.02A
commutation :
brush
voltage :
1.5V~24V
Type :
Spur Gear motor, brush dc gear motor
Rated torque :
3.0 kg.cm
dimension :
37mm diameter, 23mm+ 50mm length
Typical application :
door lock, kids robot toy, carbinet lock
Description

RC toy Gear Motor 6V 12V 24V, 37mm Brush Geared DC Motor With Encoder

Main features:

Motor type: Brush commutated DC gear motor

Gearbox type: Spur gearbox

Diameter: Gearbox: 37mm*23mm L; DC motor:50mm L

Volt
24v
No-Load Speed
90rpm
Rated Speed
77rpm
Rated Torque
3.0kg.cm
Application
AI Robot , door lock , remote control toy, cabinet lock

Gear motor dimensions:

90rpm Door Lock Gear Motor 12V 24V Dia 37mm With Encoder

Motor Technical parameters:

1. Rated Voltage: DC 3V -12V

2. Speed No load: 17~3000RPM
3. Diameter 37mm, length 23mm gearhead+50.3mm motor

4. Weight: approx105g

5. Application: AI Robot, Door lock, Home Appliance, Remote control toy, Medical equipment, automobile systems, communication equipment, digital cameras etc.

Provide motor size, lead requirement, working voltage, no-load conversion, no-load current, load, stall current, etc, TO TAILOR YOUR MOTOR.

Motor solution in Areas of expertise:

printer motor copier motor projector motor
shredder motor surgical robot motor medical stirrer motor
water pump motor vacuum pump motor vacuum cleaner motor
fascia gun motor massager motor treadmill motor
blender motor sweeper motor roll curtain motor
