Conveyor Roller 24V 1650R/ Min Brushless DC Motor Transmission Belt
Conveyor Roller 24V 1650R/ Min Brushless DC Motor Transmission Belt
Conveyor Roller 24V 1650R/ Min Brushless DC Motor Transmission Belt
Conveyor Roller 24V 1650R/ Min Brushless DC Motor Transmission Belt
Conveyor Roller 24V 1650R/ Min Brushless DC Motor Transmission Belt
Conveyor Roller 24V 1650R/ Min Brushless DC Motor Transmission Belt
Conveyor Roller 24V 1650R/ Min Brushless DC Motor Transmission Belt
Conveyor Roller 24V 1650R/ Min Brushless DC Motor Transmission Belt
Conveyor Roller 24V 1650R/ Min Brushless DC Motor Transmission Belt
Conveyor Roller 24V 1650R/ Min Brushless DC Motor Transmission Belt
Conveyor Roller 24V 1650R/ Min Brushless DC Motor Transmission Belt
Conveyor Roller 24V 1650R/ Min Brushless DC Motor Transmission Belt
Specifications
Brand Name :
SECORE
Model Number :
BLS-52101
Certification :
CE ROHS
Place of Origin :
China,Guangdong
MOQ :
50
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
15-18 working days
Packaging Details :
50pcs per carton or as request
Speed RPM :
1650R/Min
Rated Power :
50W
Rated Torque :
0.4N.m
Rated Voltage :
24V
Dimension :
∮52*101 (mm）
Construction :
pernanent magnet
Commutation :
brushless
Origin :
China
Product Type :
Conveyor Roller bldc motor
Typical application :
transmission belt, conveyor roller, assembly line
Description

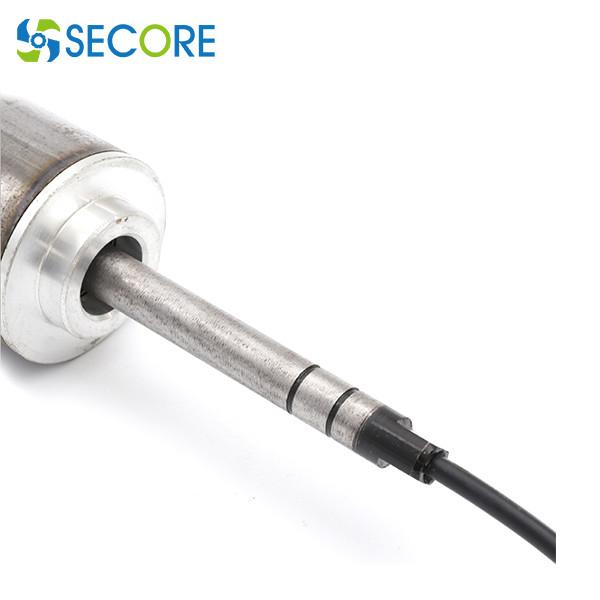

Zinc-plated Conveyor Brushless Motor 24V, Carbon Steel Galvanized BLDC Motor for Transmission Roller

Specifications :

1. Size: Φ 52* L101mm

2. Shaft length: 96mm + 10mm

3. Shaft Dia: 12mm

4. Rated Voltage:24V DC

5. Rated torque: 1650RPM

6. Surface material: Carbon Steel Galvanized

6. Product feature: low noise, long life

product name 24VDC Brushless roller motor MODEL Number BLS-52101
speed r/min 1650 Rated power 50W
Rated torque 0.4 N.m Rated voltage 24V


Conveyor Roller 24V 1650R/ Min Brushless DC Motor Transmission Belt

TO BE TAILORED

♦ Customized voltage, motor performance

♦ Customized mounting, shaft dimension, and lead configuration

♦ EMI/RFI suppression circuit

♦ Overload protection, thermal protection

♦ High temperature and waterproof option

♦ Integrated gearbox, controller, encoder and brake

If there is no suitable specifications, it can be customized according to actual needs.
