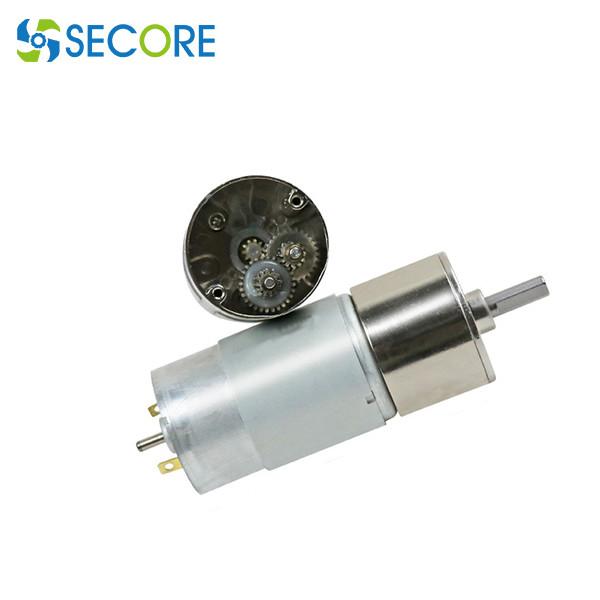

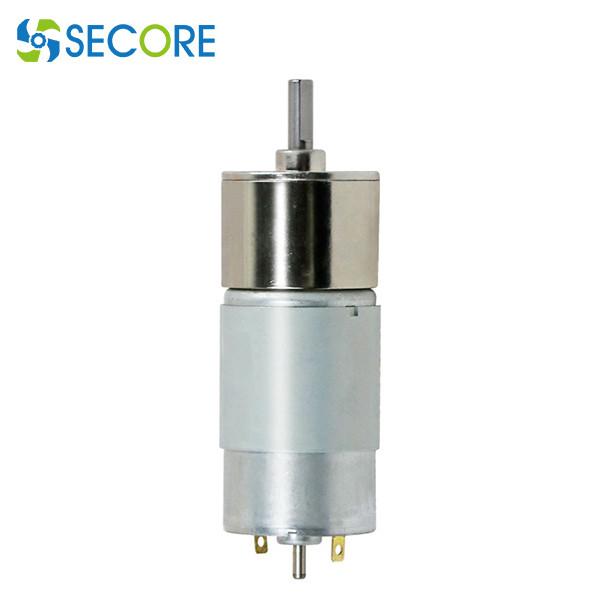

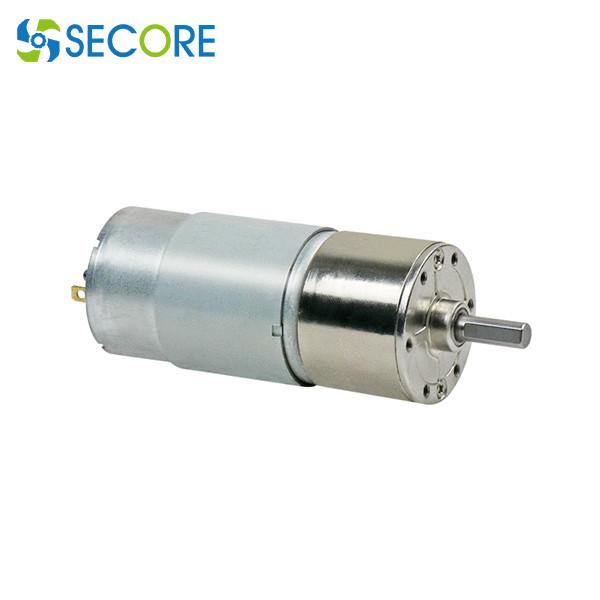

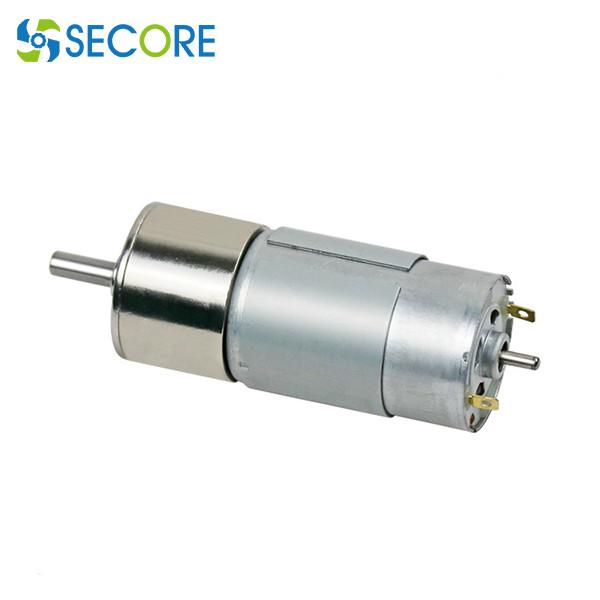

Brushed Spur Gear Motor 37mm Straight Teeth For Shoe Cover Dispenser
Brushed Spur Gear Motor 37mm Straight Teeth For Shoe Cover Dispenser
Brushed Spur Gear Motor 37mm Straight Teeth For Shoe Cover Dispenser
Brushed Spur Gear Motor 37mm Straight Teeth For Shoe Cover Dispenser
Brushed Spur Gear Motor 37mm Straight Teeth For Shoe Cover Dispenser
Brushed Spur Gear Motor 37mm Straight Teeth For Shoe Cover Dispenser
Brushed Spur Gear Motor 37mm Straight Teeth For Shoe Cover Dispenser
Brushed Spur Gear Motor 37mm Straight Teeth For Shoe Cover Dispenser
Specifications
Brand Name :
SECORE
Model Number :
DC3657-37GB
Certification :
CE ROHS
Place of Origin :
Shenzhen
MOQ :
200
Payment Terms :
D/P, T/T,, Western Union, L/C
Delivery Time :
10-12 working days
Packaging Details :
100pcs per carton or as request
Rated Voltage :
6V 12V 24 etc
Rated speed :
10rpm ~500rpm
Rated Torque :
8kg, 35kg or as request
Power :
6.8W
Motor size :
Φ36.5*L57mm, 555 motor
Spur Gearhead :
Φ37*L27mm
Usage :
shoe cover dispenser, tapping machine
product name :
brush dc spur gear motor, 555 spur gear motor
Description

Shoe Cover Dispenser Gear Motor 37mm 555 Straight Teeth Spur Gear Motor Cw Ccw With Self-Locking

Secore Brushed Spur Gear motor 37mm 555 dc motor main features:

MODEL VOLTAGE Motor free load motor with gearbox (no load )
Current A Speed RPM torque kg.cm Motor size gear ratio gearbox length current speed
DC3657-37GB 6 0.25 8000 0.45 57 33 27 0.375 242
DC3657-37GB 6 0.25 8000 0.45 57 77 27 0.375 104
DC3657-37GB 6 0.25 8000 0.45 57 78.3 27 0.375 102
DC3657-37GB 6 0.25 8000 0.45 57 133 27 0.375 60
DC3657-37GB 6 0.25 8000 0.45 57 135 27 0.375 59

MODEL VOLTAGE max efficiency At stall
current A speed rpm torque kg.cm output power W current A torque kg.cm
DC3657-37GB 6 1.125 194 8.6 6.8 5.6 25.8
DC3657-37GB 6 1.125 187 20.1 6.8 5.6 60.3
DC3657-37GB 6 1.125 112 20.4 6.8 5.6 61.3
DC3657-37GB 6 1.125 62 34.7 6.8 5.6 104.2
DC3657-37GB 6 1.125 37 35.2 6.8 5.6 105.8

Brushed Spur Gear Motor 37mm Straight Teeth For Shoe Cover Dispenser

Outline Dimensions:

Brushed Spur Gear Motor 37mm Straight Teeth For Shoe Cover Dispenser

Performance Curve:


Brushed Spur Gear Motor 37mm Straight Teeth For Shoe Cover Dispenser

Application industry cases

Brushed Spur Gear Motor 37mm Straight Teeth For Shoe Cover Dispenser
