3 Phase 28mm Inrunner Brushless Motor , Electric bLDC brushless dC motor
3 Phase 28mm Inrunner Brushless Motor , Electric bLDC brushless dC motor
3 Phase 28mm Inrunner Brushless Motor , Electric bLDC brushless dC motor
3 Phase 28mm Inrunner Brushless Motor , Electric bLDC brushless dC motor
3 Phase 28mm Inrunner Brushless Motor , Electric bLDC brushless dC motor
3 Phase 28mm Inrunner Brushless Motor , Electric bLDC brushless dC motor
3 Phase 28mm Inrunner Brushless Motor , Electric bLDC brushless dC motor
3 Phase 28mm Inrunner Brushless Motor , Electric bLDC brushless dC motor
Specifications
Brand Name :
SECORE
Model Number :
BLS-2838I
Certification :
CE ROHS
Place of Origin :
Guangdong
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
500pcs per carton or as request
Speed :
6000RPM or customized
Rated Torque :
310g.cm or as request
Continuous current :
1.5A or as request
Diameter*Len :
28*38（mm）
Construction :
pernanent magnet
Weight :
75g
Keyword :
motor brushless 12v, brushless electric motor,high torque brushless motor
Typical application :
office appliances, electric fan, power tool
Description

28mm Diameter Brushless Dc Electric Motor Drive 15W With Long Life Efficiency

Specifications :

1. Structure: 6N4P Inner runner rotor + ball bearing

2. Size: Φ28* L38mm

3. Shaft Dia: 2.3mm

4. Rated Voltage:18V DC

5. Endplay: 0.3mm

6. Lifetime: 20000H

7. Phase: 3

8. Rotation: CW/CCW controllable

3 Phase 28mm Inrunner Brushless Motor , Electric bLDC brushless dC motor

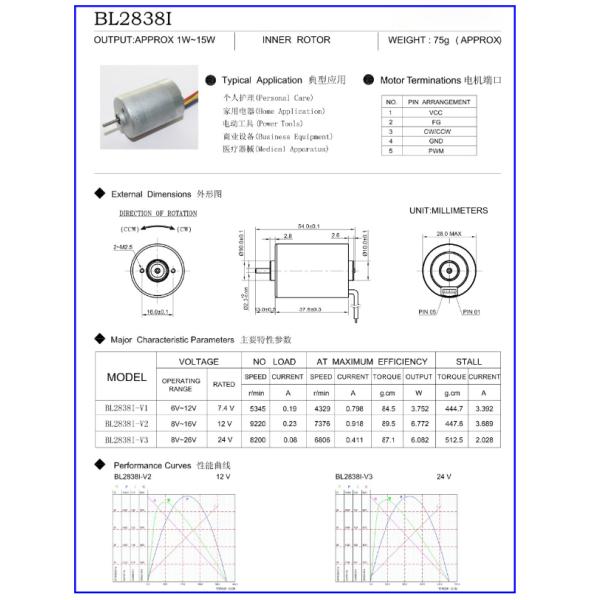

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE		 RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A g.cm W g.cm A
BLS2838I-V1 6V~12V 7.4V 5345 0.19 4329 0.798 84.5 3.752 444.7 3.392
BLS2838I-V2 8V~16V 12V 9220 0.23 7376 0.918 89.5 6.772 447.6 3.689
BLS2838I-V3 8V~26V 24V 8200 0.08 6806 0.411 87.1 6.082 512.5 2.028

What are main criterias for selecting an electric motor?

1. You should choose the types of electric motors ( AC Universal Motor, Brushless DC Motor, Brushed DC Motor, Gearbox Motor )

2. In order to select between above groups, it is necessary to determine the type of application required

3. Depending on the movement your require, specifications and size of the motor are necessary as well ( power, torque, speed, dimension, industrial environment etc )

4. Finally, energy efficiency has become an important factor to take into account when selecting a motor

If there is no suitable specifications, it can be customized according to actual needs.

some of Our customers

3 Phase 28mm Inrunner Brushless Motor , Electric bLDC brushless dC motor

Brushless DC ELectric Motor-Typical Application

Home Application: Electric Window, Electric Curtain, Actuator, Small Appliances, Portable Equipment

Industry Facility: Transmission Equipment, Gear System, Actuator

Electronic Equipment: Electric Valve, Small Switcher, Lighting Adjustor, Small Percussion Drill

Business Equipment: Electric Gate, Banking Facility, ATM, Vending Machine

Personal Care: Massager, Stroker, Vibrator
