Specifications
Application :
Chemical,Medical,Commodity
Type :
Filling Machine, capping machine monoblock
Function :
Roll-on bottle filling and capping
Warranty :
1 year
Automatic grade :
Automatic filling and capping
Bottle type :
Plastic Bottle And Glass Bottle,PET Plastic Bottle / glass bottle
Capacity :
1000-2000 BPH(can be customized)
Machine size :
250*120*165 cm
Filling volume :
50-500ml(customizable)
Brand Name :
METICA
Model Number :
MTFC-1000
Certification :
CE
Place of Origin :
Shanghai
MOQ :
1 SET
Price :
USD 10000-20000/SET
Payment Terms :
L/C,T/T
Supply Ability :
100 SETS PER MONTH
Delivery Time :
25-30 days
Packaging Details :
Fumigation-free wooden boxes that meet international standards
Weight :
around 300kg
Name :
Deodorant bottle filling capping machine
Filling accuracy :
>99%
Description
PLC Auto Monoblock Filling And Capping Machine Dropper Bottle Filling Machine
Product Overview

Automatic Glass Dropper Bottle Filling Machine for CBD Oil Cartridge and Monoblock Filling and Capping Applications

  • Widely used in health care industries for 10-500ml plastic and glass bottle filling and capping
  • Ideal for alcohol, hand soap, oral liquid, topical agents, syrup, vaccine, and nail water products
  • Features 4 nozzles piston type filling with rotating plate positioning capping method
  • Ensures bubble-free, spill-free operation with high filling accuracy
  • Easy to maintain and operate with excellent performance
  • Optional accessories include dust cover, glass pump, stainless steel pump, ceramic pump, or peristaltic pump
Specifications & Features
  • Different bottle types require changing the table and lifter parts
  • Optional anti-dripping tray available near filling nozzles
  • Four filling nozzles with one capping station and one capping head
  • PLC controlled for easy operation with touch screen interface
  • Applicable to both glass and plastic bottles
  • Widely used in cosmetics and health care industries
  • Cap compatibility: common screw cap, anti-theft ring screw cap, spiral cap, press-in-cap, aluminum cap
Workflow Process
  1. Automatic filling
  2. Automatic plugging ball
  3. Automatic capping
Technical Specifications
Speed 1200-2000 bph (customizable)
Filling Accuracy ≥99%
Filling Volume 100-500ml (can be customized)
Filling Method Servo motor + piston
Power Supply 220V 50hz 2kw
Bottles Applicable Glass dropper bottle, plastic bottle
Caps Applicable Press caps / screw caps / Dropper cap
Application Liquid or viscosity liquid
Feature PLC, touch screen, fully automatic
PLC Control Monoblock Filling and Capping Machine with 1000-2000 BPH and 99% Filling Accuracy for Dropper Bottles PLC Control Monoblock Filling and Capping Machine with 1000-2000 BPH and 99% Filling Accuracy for Dropper Bottles

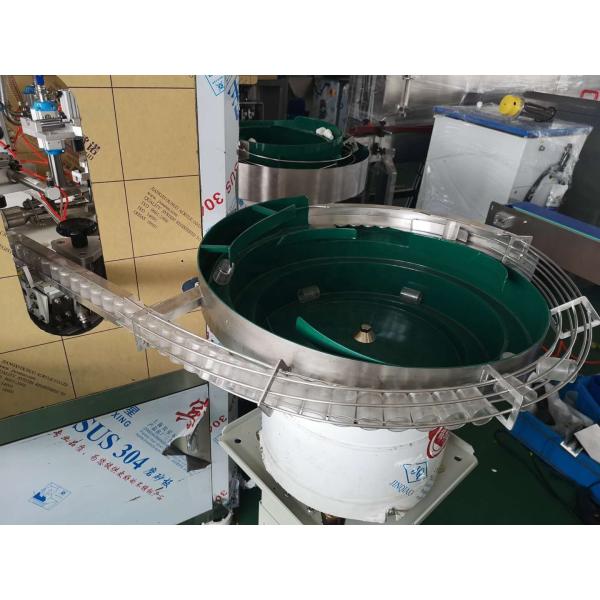

Cap Feeder System
PLC Control Monoblock Filling and Capping Machine with 1000-2000 BPH and 99% Filling Accuracy for Dropper Bottles

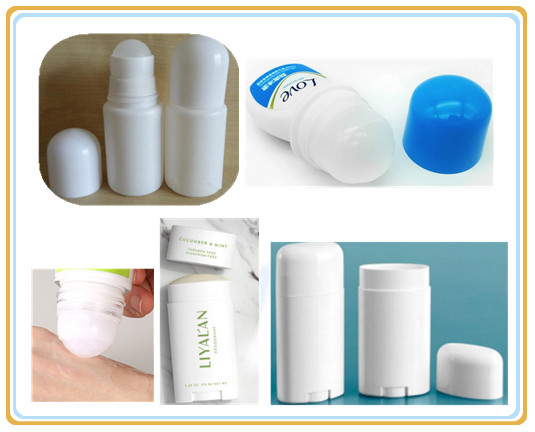

Sample Applications
PLC Control Monoblock Filling and Capping Machine with 1000-2000 BPH and 99% Filling Accuracy for Dropper Bottles
