220V 50Hz 2kW Automatic Pen Sprayer Filling And Capping Machine with 1500-2000BPH and 5-50ml Filling Volume
220V 50Hz 2kW Automatic Pen Sprayer Filling And Capping Machine with 1500-2000BPH and 5-50ml Filling Volume
220V 50Hz 2kW Automatic Pen Sprayer Filling And Capping Machine with 1500-2000BPH and 5-50ml Filling Volume
220V 50Hz 2kW Automatic Pen Sprayer Filling And Capping Machine with 1500-2000BPH and 5-50ml Filling Volume
220V 50Hz 2kW Automatic Pen Sprayer Filling And Capping Machine with 1500-2000BPH and 5-50ml Filling Volume
220V 50Hz 2kW Automatic Pen Sprayer Filling And Capping Machine with 1500-2000BPH and 5-50ml Filling Volume
220V 50Hz 2kW Automatic Pen Sprayer Filling And Capping Machine with 1500-2000BPH and 5-50ml Filling Volume
220V 50Hz 2kW Automatic Pen Sprayer Filling And Capping Machine with 1500-2000BPH and 5-50ml Filling Volume
Specifications
Capacity :
1500-2000BPH
Qualified rate :
>=99%
Automatic grade :
Automatic
Type :
Filling and capping machine
Weight :
about 300kg
Warranty :
one year
Product name :
Pen Sprayer custom packaging machine
Application :
Food,Chemical,Medical,Commodity,Beverage
Brand Name :
METICA
Model Number :
/
Certification :
CE
Place of Origin :
Shanghai
MOQ :
1 SET
Price :
USD 10000-20000/SET
Payment Terms :
L/C,T/T
Supply Ability :
100 SETS PER MONTH
Delivery Time :
25-30 days
Packaging Details :
Fumigation-free wooden boxes that meet international standards
Name :
Pen Sprayer Filling And Capping Machine
Machine size :
1500*1350*1800 mm
Description
220V 50Hz 2kW Custom Packaging Machine Pen Sprayer Filling and Capping
Automatic Pen Sprayer Filling and Capping Machine

This custom packaging machine is specifically engineered for pen sprayers and similar products with spray caps, providing efficient liquid filling and capping solutions for small bottles.

Application
  • Specifically designed for pen sprayers and similar products with spray caps
  • Ideal for all kinds of liquid products filling and capping, primarily for small bottles with volume 5-50 ml
  • Suitable for Essential Oil, Health Care Oil, Eye Drop and similar products
Specifications and Features
  • Machine speed: 20-30 BPM
  • Designed especially for 5-50ml liquid filling and capping
  • Line speed: 20-30 bottles per minute
  • Famous branded electrical parts ensure stable operation and longer working life
  • Adopts peristaltic pump or piston pump with high filling precision
  • No bottle, no fill, no drop, no leak functionality
  • Touch screen with English operation interface for easy operation and adjustment
  • Suitable for single and mass production
  • Emergency stop button and automatic interrupt device for safe operation
  • Labor requirement: 1 worker
Work Flow
  1. Manually load pen on feeder
  2. Pen feeding automatically by feeder
  3. Automatic filling with 2 filling nozzles (customizable)
  4. One cap loading station for loading cap automatically
  5. One capping station for capping automatically
  6. Push out bottle on conveyor after filling and capping
Technical Parameters
Parameter Specification
Speed 1500-2000 BPH (can be customized)
Filling Accuracy ≥99%
Filling Volume 5-50ml (can be customized)
Filling Method Servo motor + piston or peristaltic pump
Power Supply 220V 50Hz 2kW
Air Supply 0.6 MPa
Bottles Applicable Pen with spray cap
Caps Applicable Press caps / Screw caps / Spray pump cap
Application Liquid or viscosity liquid
Feature PLC, touch screen, etc.
Machine Components
220V 50Hz 2kW Automatic Pen Sprayer Filling And Capping Machine with 1500-2000BPH and 5-50ml Filling Volume

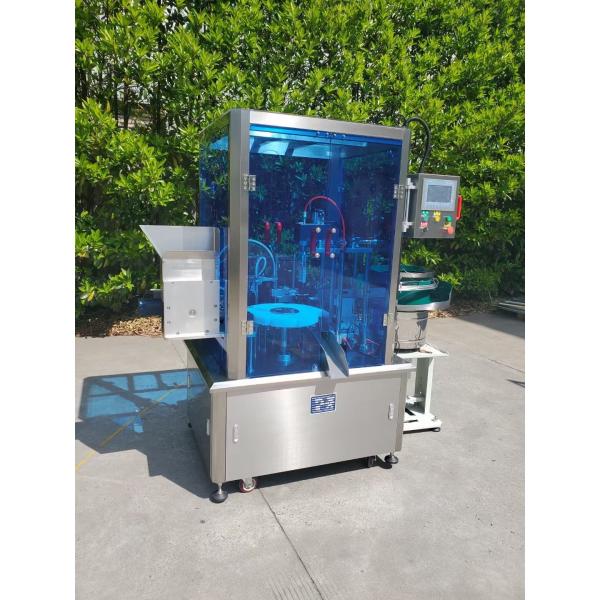

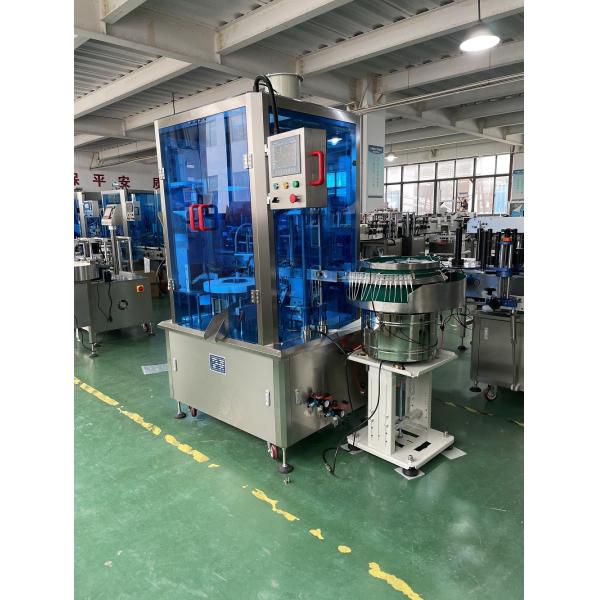

Main Machine Overview
220V 50Hz 2kW Automatic Pen Sprayer Filling And Capping Machine with 1500-2000BPH and 5-50ml Filling Volume
Machine Close-up View
220V 50Hz 2kW Automatic Pen Sprayer Filling And Capping Machine with 1500-2000BPH and 5-50ml Filling Volume
Pen Feeder
220V 50Hz 2kW Automatic Pen Sprayer Filling And Capping Machine with 1500-2000BPH and 5-50ml Filling Volume
Cap Feeder
220V 50Hz 2kW Automatic Pen Sprayer Filling And Capping Machine with 1500-2000BPH and 5-50ml Filling Volume
Product Samples
