2000BPH 50-500ml PLC Control Monoblock Filling Capping Machine for Roll-on Bottles
2000BPH 50-500ml PLC Control Monoblock Filling Capping Machine for Roll-on Bottles
2000BPH 50-500ml PLC Control Monoblock Filling Capping Machine for Roll-on Bottles
2000BPH 50-500ml PLC Control Monoblock Filling Capping Machine for Roll-on Bottles
2000BPH 50-500ml PLC Control Monoblock Filling Capping Machine for Roll-on Bottles
2000BPH 50-500ml PLC Control Monoblock Filling Capping Machine for Roll-on Bottles
Specifications
Automatic grade :
Automatic
Name :
Roll-on bottle filling capping machine
Weight :
400kg
Bottle type :
Plastic Bottle And Glass Bottle
Warranty :
one year
Payment Terms :
L/C,T/T
Machine size :
2500*1200*1650 mm
Filling volume :
50-500ml
Capacity :
1000-2000BPH
Filling accuracy :
>=99%
Application :
Chemical,Medical,Commodity
Function :
Roll-on bottle filling and capping in one
Type :
Filling Machine, capping machine in one
Brand Name :
METICA
Model Number :
MTFC-1000
Certification :
CE
Place of Origin :
Shanghai
MOQ :
1 SET
Price :
USD 10000-20000/SET
Supply Ability :
100 SETS PER MONTH
Delivery Time :
25-30 days
Packaging Details :
Fumigation-free wooden boxes that meet international standards
Description
500ml Deodorant Liquid Monoblock Filling Capping Machine 2000BPH
Product Overview

50-500ml Deodorant Filling Plugging-In Capping In One Roll-On Bottle Monoblock Filling And Capping Machine

Brief Introduction
  • Widely used in pharmaceutical and health care industries for 10-500ml plastic or glass bottle filling and capping
  • Applications include alcohol, hand soap, oral liquid, topical agents, syrup, vaccine, and nail water
  • Features 4 nozzles piston type filling with rotating plate positioning capping method
  • No bubble, no spill operation with accurate filling and excellent performance
  • Easy to maintain and operate
  • Optional accessories: dust cover, glass pump, stainless steel pump, ceramic pump, or peristaltic pump
Specifications & Features
  • Different bottle types require changing the table and lifter parts
  • Optional anti-dripping tray available near filling nozzles
  • Four filling nozzles and one capping station with one capping head
  • PLC controlled for easy operation with touch screen interface
  • Applicable to both glass and plastic bottles
  • Widely used in cosmetics and health care industries
  • Cap compatibility: common screw cap, anti-theft ring screw cap, spiral cap, press-in-cap, aluminum cap
Technical Parameters
Parameter Specification
Speed 1200-2000bph (customizable)
Filling Accuracy >=99%
Filling Volume 100-500ml (can be customized)
Filling Method Servo motor + piston
Power Supply 220V 50hz 2kw
Bottles Applicable Glass dropper bottle, plastic bottle
Caps Applicable Press caps / screw caps / Dropper cap
Application Liquid or viscosity liquid
Feature PLC, touch screen, fully automatic

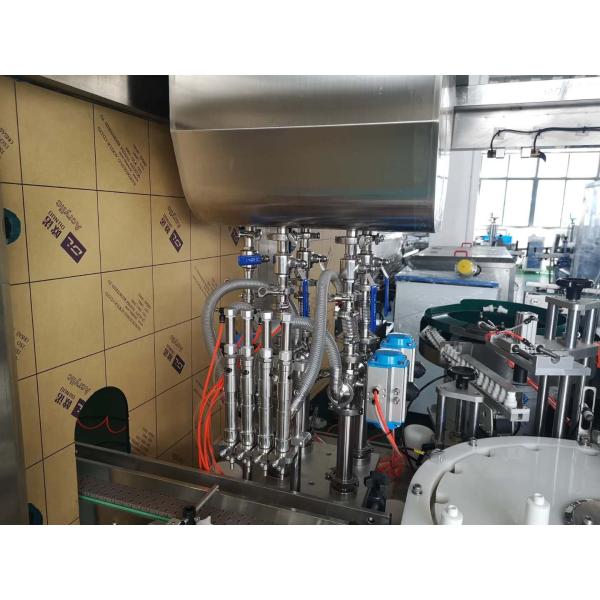

Product Images
2000BPH 50-500ml PLC Control Monoblock Filling Capping Machine for Roll-on Bottles 2000BPH 50-500ml PLC Control Monoblock Filling Capping Machine for Roll-on Bottles

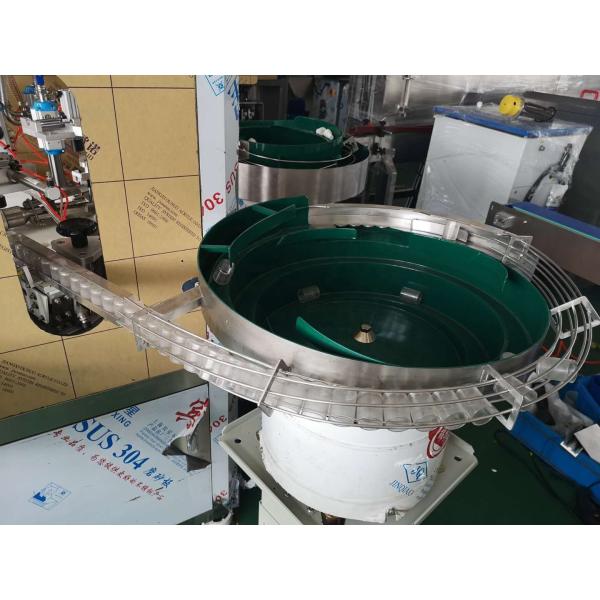

Cap Feeder
2000BPH 50-500ml PLC Control Monoblock Filling Capping Machine for Roll-on Bottles

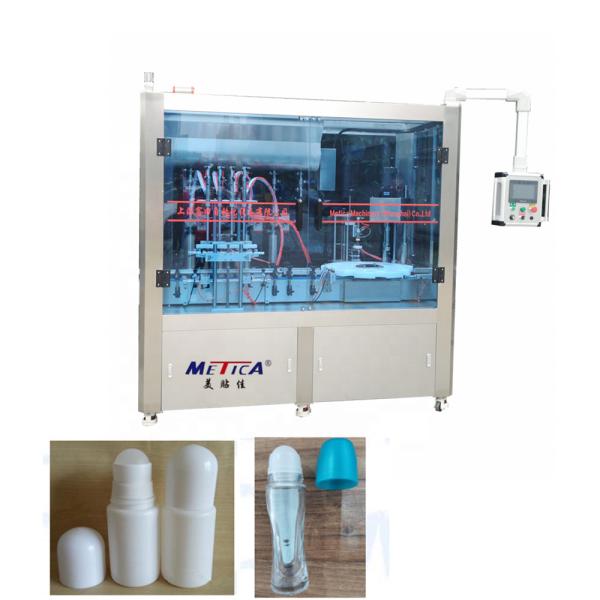

Samples Display
2000BPH 50-500ml PLC Control Monoblock Filling Capping Machine for Roll-on Bottles
About Metica Machinery

Metica Machinery (Shanghai) Co., Ltd. established in 2008, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line.

We are located in Shanghai, very convenient in factory visiting, and goods shipping.

We have more than ten years experience in automatic packaging machinery. Since the date of establishment, our company has always been pursuing the best product quality and service. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We can also provide customers with the manufacture and development of various non-standard machines. We make machines as per GMP Standard. In addition, we have obtained CE certificates.
