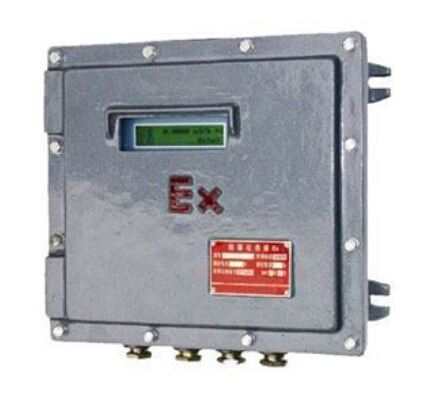

Picture of our fixed wall mounted ultrasonic flowmeter MT100FU









Fixed ultrasonic indicator

• Accuracy can reach ±1%
• Four rows of characters display instantaneous flow rate, flow velocity, the cumulative flow, signal state, etc
• Built-in data recorder, can record dates, cumulative flow, signal condition,
• working time, etc
• OCT output positive, negative, cumulative net pulse signal and the frequency signal (1-9999Hz optional)
• RS232 interface is used to glue network detection or export recorded data
• Suitable for all variable sizes of pipes’ flow metering
• The velocity measuring range 0.01 ~ + 32 m/s
• Suitable for steel, stainless steel, cast iron, PVC, FRP, etc. uniform and compact of pipeline
• Upstream of straight pipe section should satisfy 10D, downstream 5D, 30D to the pump outlet (D refers to the pipe diameter)
• Built-in Ni-MH rechargeable battery can work continuously more than 10 hours
• Small size (220×92×32mm), portable weight (538g)

Optional sensors:
Standard small stents sensor (magnetic)Standard medium stents sensor (magnetic)
Applicable caliber DN15-100mm Applicable caliber DN50-700mm
Fluid temperature ≤110°C Fluid temperature ≤110°C
Overall dimension 200×25×25mm Overall dimension 280×40×40 (2Ps)
Handle length 100mm

Standard large sensorStandard large sensor (magnetic)
Applicable caliber DN300-600mm Applicable caliber DN50-700mm
Fluid temperature ≤110°C Fluid temperature ≤110°C
Overall dimension 80×70×55mm Overall dimension 60×45×45mm
