YC1893D IEC 60736 Automatic Three-Phase Energy Meter Test Equipment
YC1893D IEC 60736 Automatic Three-Phase Energy Meter Test Equipment
Specifications
Brand Name :
GENY
Model Number :
YC1893D
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
L/C,T/T,D/P
Supply Ability :
30 PCS per month
Delivery Time :
30 days after order confirmed
Packaging Details :
Plywood case
Accuracy class :
Class 0.02/0.05
Test voltage output :
3* (24V~288V)(or customized)
Test current output :
3* (1mA - 100A)
Frequency Range :
45Hz~65Hz
Description

YC1893D IEC 60736 Automatic Three-Phase Energy Meter Test Equipment



GENY meter test systems leverage state-of-the-art electronic metrology and a modular architecture, integrating precision reference standards with high-stability power amplifiers to meet the exacting demands of energy-meter manufacturers, power utilities, metrology laboratories, inspection authorities, and industrial test facilities.

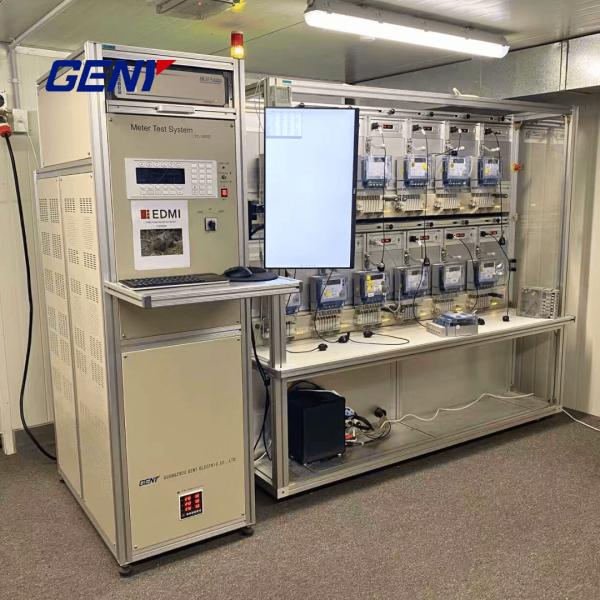

The YC1893D meter test system is a full-automatic test system for testing and calibration of both single-phase and three-phase electric energy meters, which composes of:


  • Three-phase Power source
  • Three-phase Reference standard meter
  • Meter suspension test rack
  • Tariffs control system (fixed voltages, optical port reader, ripple control box)
  • Other necessary parts
  • PC and software controlling the whole system


The YC1893D meter test system is fully compliant with the IEC 60736 standard and is suitable for testing meters according to the following standards:


  • IEC 62052-11 and IEC 62053-11, -21, -22, -23, -24
  • IEC 62056
  • EN 50470-1, EN 50470-2, EN-50470-3
  • IEC 61010



Parameters


Technical spec.


Number of meter positions

24

Accuracy

0.05 / 0.02

Power Source

YCS-103-1200

Standard Meter

SZ03A-K6 / SZ03A-K8 / Radian RD-33

Scanning Head

YCG-S Series

Voltage


Test voltage output(Phase-Neutral)

3* (24V~288V)(or customized)

Power of the voltage output

Max. 3x500VA

Resolution

Better than 0.01% of full scale value of range

Setting accuracy

Better than 0.05% at the final range value

Stability

Better than 0.005% /h (integration time 150s)

Load regulation from 0~max. load

Better than 0.01%

Distortion factor

Better than 0.3% for linear resistance load

Harmonic

2nd~21st free programmable

Current


Test current output

3* (1mA - 100A)

Power of the current output

Max. 3x750VA

Resolution

Better than 0.01% of full scale value of range

Setting accuracy

Better than 0.05% at the final range value

Stability

Better than 0.005% /h (integration time 150s)

Load regulation from 0~max. load

Better than 0.01%

Distortion factor

Better than 0.3% for linear resistance load

Harmonic

2nd~21st free programmable

Phase angle


Range

0~360⁰

Resolution

0.01⁰

Setting accuracy

0.1⁰

Frequency


Range

45Hz~65Hz

Resolution

0.01Hz

Error display


Type of error display

Red LED

Resolution of error displays

8 digitals

Other


Voltage supply

3x220/380V±10%(or customized)

50/60Hz ±2Hz

Ambient temperature

-10°C~+40°C

Relative humidity

35%~85%
