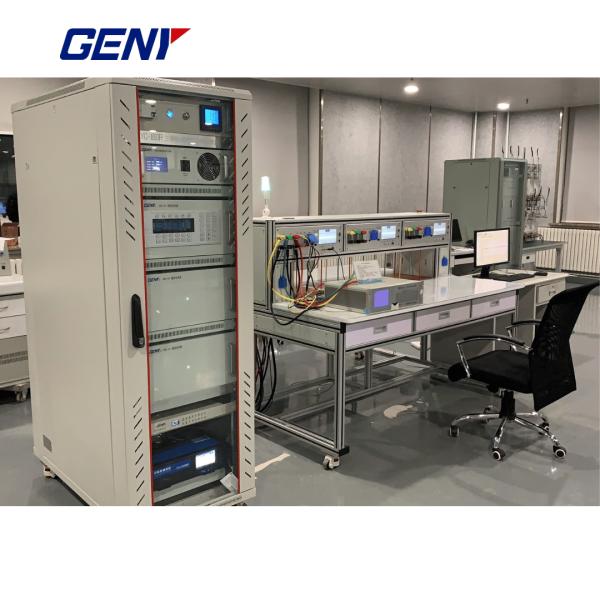

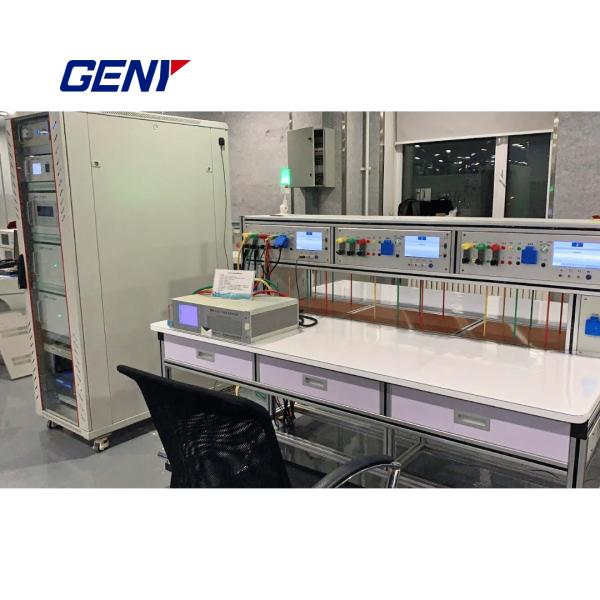

YC1893R Three-Phase High-Precision Energy Meter Verification Equipment
YC1893R Three-Phase High-Precision Energy Meter Verification Equipment
YC1893R Three-Phase High-Precision Energy Meter Verification Equipment
YC1893R Three-Phase High-Precision Energy Meter Verification Equipment
Specifications
Brand Name :
GENY
Model Number :
YC1893R
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
negotiation
Payment Terms :
L/C,T/T,D/P
Supply Ability :
10 PCS per month
Delivery Time :
4-8weeks
Packaging Details :
Standard Export Carton
Usage :
Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter
High accuracy :
0.01
Extremely high power stability :
0.002%
with Three Phase Reference Standard :
Yes
Description

YC1893R Three-Phase High-Precision Energy Meter Verification Equipment



The YC-1893R series three-phase electrical energy standard verification equipment is a high-grade three-phase standard system developed by our company, featuring world-class performance comparable to similar international systems. With an overall accuracy class of 0.01, this premium standard electrical energy testing equipment is tailor-made for institutions such as national and provincial/municipal metrology institutes, electrical power research institutes, and manufacturers of electrical energy metering products. It is primarily used to establish primary standards or serve as a working standard for verifying reference meters.



Product Features



  • Measurement of active power, reactive power, active energy, and reactive energy

  • Start-up and creep testing

  • Automatic index mark detection for accelerated creep/start-up testing

  • Measurement of fundamental error, mean error, standard deviation, and 24-hour variation

  • Voltage influence, frequency influence, harmonic influence (2nd-21st order), and phase sequence influence testing

  • Simultaneous verification of standard energy meters with identical voltage/current parameters but different meter constants

  • Integrated current open-circuit protection and voltage short-circuit protection

  • Dual operation modes: automatic and manual

  • Automated error data processing, storage, and real-time output via software

  • Advanced data management and statistical analysis with configurable reporting formats

  • Barcode scanner compatibility

  • Precision power supply design eliminating beat frequency interference

  • Site-specific structural configuration


Specifications



Device Accuracy Class

0.01% or 0.02%

Power Supply

3P4W 3×380V±10%, 50Hz±2Hz

Ambient Temperature

-10℃ ... +40℃ (Standard Operating Temperature: 20℃±1℃)

Ambient Humidity

35% ... 95% (Standard Operating Humidity: 50%R.H±15%R.H)

Output Voltage Range (L-N)

3×40V ... 450V

Output Voltage Power

3×200VA

Voltage Resolution

0.001%

Voltage Stability

0.002%/120s

Load Change Rate

0.01%

Voltage Distortion

0.05% (Across the Entire Linear Load Range)

Output Current Range

3×1mA ... 120A (Up to 230A Current as Per Customer Request)

Output Current Power

3×300VA

Current Resolution

0.001%

Current Stability

0.002%/120s

Current Distortion

0.05% (Across the Entire Linear Load Range)

Phase Adjustment Range

0° ... 360°

Phase Resolution

0.01°

Frequency Adjustment Range

45Hz ... 65Hz

Frequency Resolution

0.001Hz

Power Output Stability

0.002%/120s

Continuous Current

100A

Maximum Continuous Current for 20 Minutes

120A

Frequency Response

2MHz

Error Display Method

LED Display (One Display Window per Meter Position)
