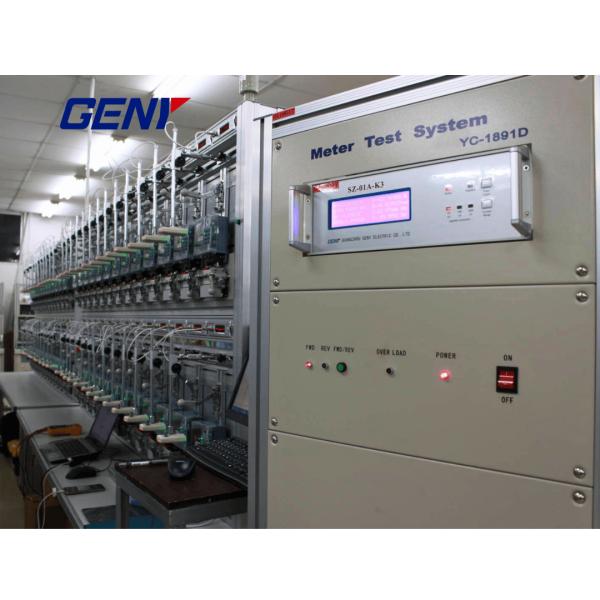

3–60 Position Smart Meter Test Equipment
3–60 Position Smart Meter Test Equipment
Specifications
Brand Name :
GENY
Model Number :
YC-1891D
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1PCS
Price :
negotiation
Payment Terms :
L/C,T/T,D/P
Supply Ability :
30pcs per month
Delivery Time :
30 days after order confirmed
Packaging Details :
plywood case
Output Current Range :
1mA -120A (Up to 230A Max)
Output Current Power :
2000VA (Max)
Output Voltage Power :
1000VA (Max)
Output Voltage Range :
24V -288V
Description

3–60 Position Smart Meter Test Equipment


Specifications



Main Technical Indicators

Parameter Value

Power Supply

AC220V±10%, 50Hz±2Hz

Ambient Temperature

-10°C ... +40°C

Ambient Humidity

35% ... 95%

Output Voltage Range

24V ... 288V

Output Voltage Power

1000VA (Max)

Voltage Resolution

0.01%

Voltage Stability

0.02%/120s

Load Change Rate

0.01%

Voltage Distortion

≤0.3% (Full linear load range)

Output Current Range

1mA ... 120A (Up to 230A Max)

Output Current Power

2000VA (Max)

Current Resolution

0.01%

Current Stability

0.02%/120s

Load Change Rate

0.01%

Current Distortion

≤0.3% (Full linear load range)

Continuous Current

100A

Phase Adjustment Range

0° ... 360°

Phase Resolution

0.01°

Frequency Adjustment Range

45Hz ... 65Hz

Frequency Resolution

0.01Hz

Power Output Stability

0.02%/120s



Key Features



• Active/reactive power & energy metering tests
• Starting & creep tests with auto-calibration
• 24 h drift, error, deviation analysis
• Voltage, frequency, harmonic (2–21), phase-sequence influence tests
• Non-disconnect testing, open-circuit & short-circuit protection
• Simultaneous current measurement; optical head auto-scan
• Electric/manual modes, PC software for data, barcode input
• 3–60 meter positions, rack scalable



Special Functions



• Bidirectional active & reactive energy error testing
• SW-5D precision time-base for daily clock-error measurement
• Communication protocol test and broadcast time synchronization
• Constant verification (pulse counting, elapsed-time, or start-stop energy methods)
• Tariff-switching, demand-interval, and demand-value error testing
• Register reading and combined register error testing
• Optional: power-consumption test, tilt-influence test, prepaid-meter test suite
