Flexible High-Precision Modular Design Energy Meter Testing Equipment for Accurate Power Measurement
Flexible High-Precision Modular Design Energy Meter Testing Equipment for Accurate Power Measurement
Specifications
Brand Name :
GENY
Model Number :
YC-1891D
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
L/C,T/T,D/P
Supply Ability :
100/Year
Delivery Time :
30 days after order confirmed
Packaging Details :
plywood case
Test voltage output (Phase-Neutral) :
24V – 300V
Power of the current output :
1500VA
Frequency Range :
45Hz – 65Hz
Power of the voltage output :
2000VA
Description

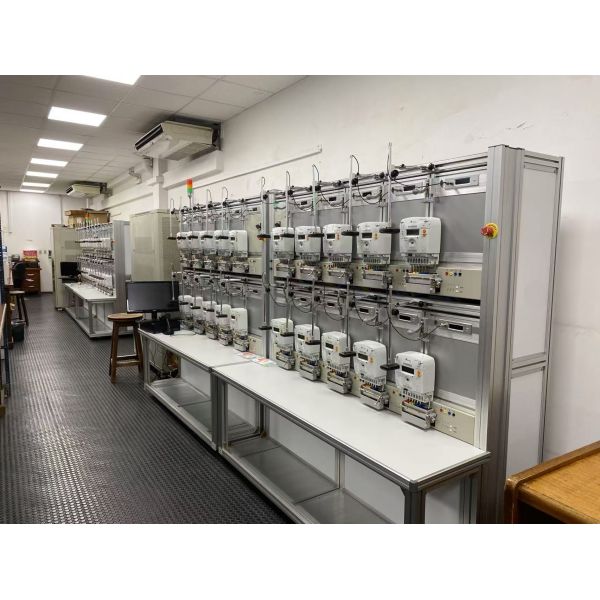

Flexible Energy Meter Testing Equipment


GENY's Meter Test Equipment utilize advanced electronic measurement technology and a modular design. By integrating differential reference standards with high-precision power amplifiers, our systems deliver accurate and reliable performance. They are ideal for:

  • Electric energy meter manufacturers

  • Electric power utilities

  • Metrology laboratories

  • Measurement and quality inspection departments

  • Industrial factories and enterprises

Our solutions are designed to meet the demanding requirements of modern power measurement and testing environments.


Technical Parameter


Power Supply


Voltage

3×230/398V±10%

Frequency

50/60Hz±2Hz

Power capacity

> 6kVA

Ambient temperature

-10°C -- +40°C

Relative humidity

35% -- 85%


Power Source


Voltage

Test voltage output (Phase-Neutral)

24V – 300V

Power of the voltage output

1000VA

Resolution

Better than 0.01% of full scale value of range

Setting accuracy

Better than 0.05% at the final range value

Stability

Better than 0.005%/h (integration time 150 s)

Load regulation from 0-max. load

< 0.01%

Distortion factor

< 0.3% for linear resistance load

Harmonics

2nd – 21st free programmable

Current


Test current output

1mA – 120A

Power of the current output

1500VA

Resolution

Better than 0.01% of full scale value of range

Setting accuracy

Better than 0.05% at the final range value

Stability

Better than 0.005%/h (integration time 150 s)

Load regulation from 0-max. load

< 0.01%

Distortion factor

< 0.3% for linear resistance load

Harmonics

2nd – 21st free programmable

Phase angle

Range

0 -- 360°

Resolution

0.01°

Setting accuracy

0.1°

Frequency

Range

45Hz – 65Hz

Resolution

0.01Hz


MSVT


Number of secondary

50

Voltage range

300V

Ratio

1:1

Primary to secondary ratio error

0.25%

Secondary to secondary ratio error

0.02%

Secondary to secondary Phase error

0.02°

Frequency range

45Hz – 65Hz

Output power (per winding)

15VA
