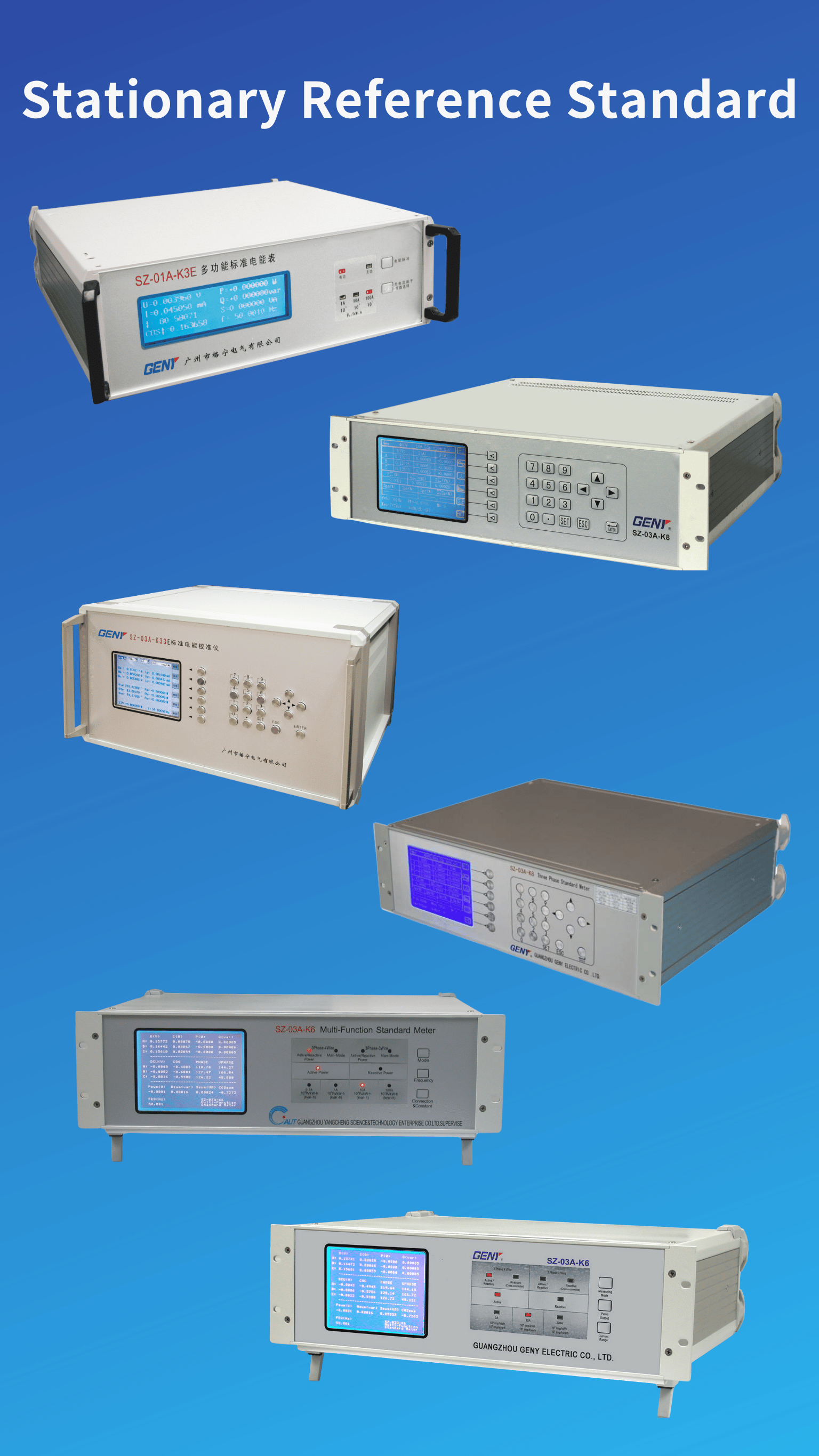

SZ-03A-K8F Series Three Phase Standard Meter
SZ-03A-K8F Series Three Phase Standard Meter
Specifications
Brand Name :
GENY
Model Number :
SZ-03A-K8
Certification :
ISO, CE
Place of Origin :
CHINA
Payment Terms :
L/C,T/T,D/P
Supply Ability :
100/Year
Model NO. :
SZ-03A-K8
Display :
Digital
Installation :
Direct Connected
Usage :
Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter
Electric Equipment :
Three-phase Three-wire
Theory :
Electronic Meter
Power Meter Connection :
Terminal
Measured Signal :
Pulse Peak
Type :
Energy Meter
Customized :
Customized
Trademark :
GENY
Transport Package :
Plywood Case
Origin :
China
HS Code :
9030849000
Port :
Guangzhou, China
Description

SZ-03A-K8F Series Three Phase Standard Meter

General Introduction


SZ-03A-K8F series three phase standard meter utilize such lasted technology as high speed DSP, CPLD,MCU and ADC with self-calibration, etc. Thus, the meter can sample AC signal in high speed and treat them with special digital arithmetic. All of these make the meter’s structure simply and measure 0.02% accuracy of the relative error.


Features


1. High precision and long-term stability

2. Universal unit for many applications

3. Measuring various kinds of electric parameters in the three-phase or single-phase circuit synchronously

4. Calculating directly the reactive power makes the phase place very accurate in angle measurement

5. Three energy constants only, leads to simple calibration and reliable result

6. Have the function of low frequency pulse input to calculate the error

7. Vector diagram display

8. Waveform display for voltage & current of each phase

9. Analysis and display of harmonic

10. Rs232 and Rs485 interface, can be operated by computer system


Product Parameters


Type SZ-03A-K8
Test voltage
Range 5V-480V
Error ±0.02%(5V-480V)
Display range 5.000000V-480.000V
Test current
Range 10mA-120A
Error ±0.02%(50mA-120A) ±0.05%(10mA-50mA)
Display range 1.000000A-120.0000A
Power measure error
Active power ±0.02%(50mA-120A)
Reactive power ±0.05%(50mA-120A)
Apparent power ±0.05%(50mA-120A)
Phase angle
Range 0°-360°
Error ±0.05°
Display range 0.000001°--359.9999°
Frequency
Range 45Hz-65Hz
Display range 45.000-65.000
Pulse output
High frequency output(CH) 1x109(0A-1A)
1x108(1A-10A)
1x107(10A-120A)
Low frequency output(CL) 2x10-5xCH
Pulse ratio 1:01
Output level 5V
Pulse input
Input level 24V
Input frequency 500Hz(Max)
Dimensions(WxHxD)(mm) 432x131x470
Weight(kg) 16
