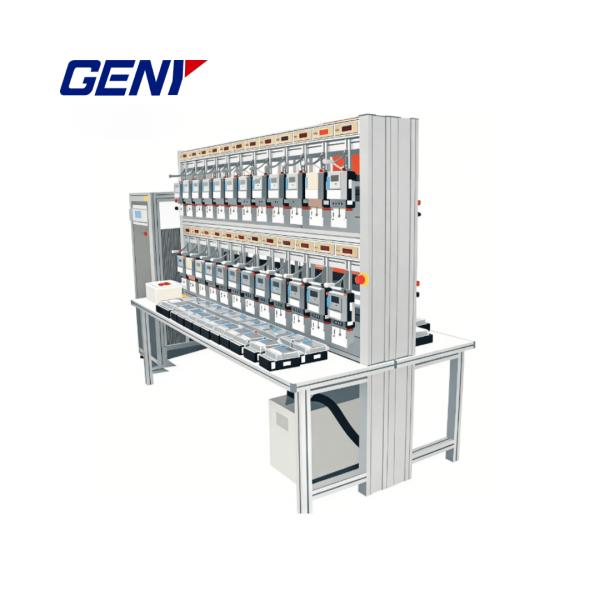

YC-1891G Series Single-Phase Semi-Automatic Meter Test System
YC-1891G Series Single-Phase Semi-Automatic Meter Test System
YC-1891G Series Single-Phase Semi-Automatic Meter Test System
YC-1891G Series Single-Phase Semi-Automatic Meter Test System
YC-1891G Series Single-Phase Semi-Automatic Meter Test System
YC-1891G Series Single-Phase Semi-Automatic Meter Test System
Specifications
Brand Name :
GENY
Model Number :
YC1891G
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
L/C,T/T,D/P
Supply Ability :
100/Year
Delivery Time :
30 Pcs Per month
Packaging Details :
Plywood case
Number of meter positions :
3-60 (customer option)
Photoelectric scanning head :
option
Continuous current :
100 A
Head adjustment: :
Individual height & depth, common flip-over frame
Error display Type :
LED window (one per meter position)
Rack material :
aluminium alloy
Description

YC-1891G Series Single-Phase Semi-Automatic Meter Test System



The YC-1891G Series Single-Phase Semi-Automatic Meter Test System is designed and manufactured in strict accordance with relevant national and industry standards, including GB/T 11150-2001 Electric Energy Meter Test Equipment, JJG 597-2005 Verification Regulation for AC Electric Energy Meter Test Systems, JG 307-2006 Verification Regulation for AC Electric Energy Meters, DL/T 614-2007 Verification Regulation for Multifunction Energy Meters, and DL/T 645-2007 Communication Protocol for Multifunction Energy Meters.


This single-phase meter test system is widely used for the verification and calibration of Class 0.2 and lower accuracy electronic single-phase energy meters, including single-phase carrier meters, prepaid energy meters, and smart energy meters. It is an ideal solution for meter testing laboratories, power utilities, and metering equipment manufacturers, offering high accuracy, reliable performance, and efficient semi-automatic operation.



Specifications



Operating environment

Power supply

AC220 V ±10 %, 50 Hz ±2 Hz

Ambient temperature

–10 °C … +40 °C

Relative humidity

35 % … 95 %


Output Voltage

Voltage range

24 V … 288 V

Max. output power

10 800 VA

Voltage setting resolution

0.01 %

Voltage stability

0.02 % / 50 ppm / 120 s

Load regulation

0.01 %

Voltage distortion

≤ 0.3 % (entire linear load range)


Output Current

Current range

1 mA … 120 A (on request up to 230A)

Max. output power

12 000 VA(MAX)

Current setting resolution

0.01 %

Current stability

0.02 % / 50 ppm / 120 sh

Continuous current

100 A

Load regulation

0.01 %

20-min maximum current

120 A

Current distortion

≤ 0.3 % (entire linear load range)


Output Phase

Phase shift range

0° … 360°

Phase resolution

0.01°


Output Frequency

Frequency range

45 Hz … 65 Hz

Frequency resolution

0.01 Hz
