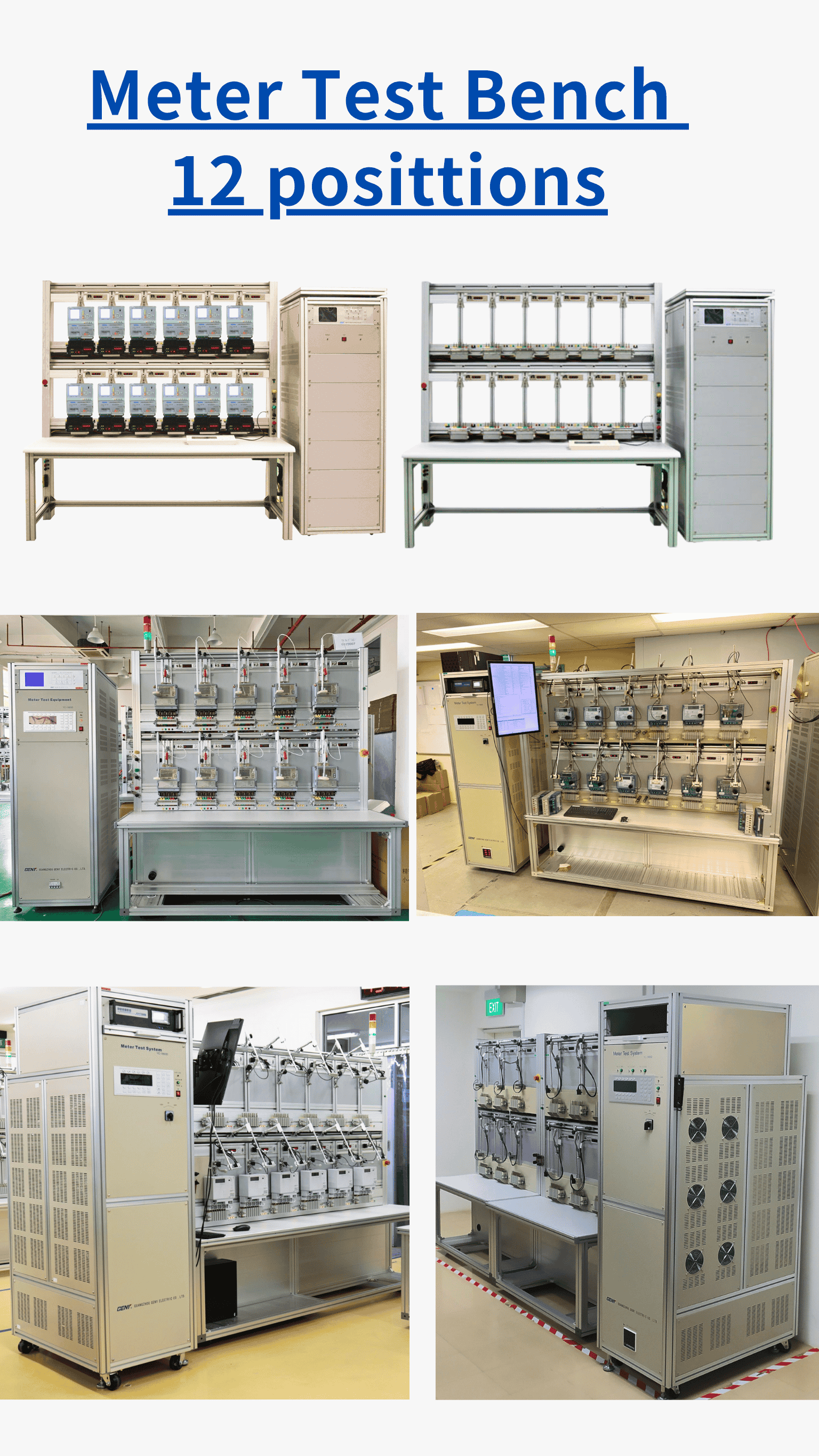

YC1893D Energy Meter Test Equipment for Precision Meter Calibration

Description

• The Three-Phase Energy Meter Test Equipment is a professional, high-precision meter test Equipment designed for the verification and calibration of three-phase and single-phase electric energy meters. It is widely used by power utilities, metrology laboratories, and energy meter manufacturers across Europe, the Middle East, Africa, and Southeast Asia.
• This advanced energy meter test bench supports automatic, semi-automatic, and manual operation, ensuring reliable performance for both laboratory calibration and mass production testing environments.

Key Features

• Installation of ICT (current transformer) at each meter position, enabling accurate testing of three-phase meters with closed I-P links

• Suitable for mechanical meters, electromechanical meters, electronic meters, and smart energy meters

• Supports meter wiring types: 3P4W, 3P3W, and 1P2W

• Multiple testing modes: active energy, reactive energy, and cross-connected reactive energy

• Simultaneous testing of meters with identical specifications but different meter constants

• Automatic disc rotor mark positioning for mechanical meters, improving testing efficiency

• Functions for starting test and creeping test

• Comprehensive protection against overload, voltage short circuit, and current open circuit

• Synchronized scanning head movement for simplified operation and control

• Rugged aluminum alloy structure, lightweight, corrosion resistant, and durable

Software

The meter test Equipment software is compatible with Windows 2000 / XP / 7 / 8 / 10 and provides a user-friendly interface for modern energy meter testing requirements, including:

• Accuracy and error verification test

• Harmonic test

• Demand and load profile test

• Influence and disturbance tests for voltage, frequency, and harmonics

• Communication testing via RS232 and Ethernet ports at each meter position
