1.8M Height Galvanized Hinge Joint Metal Livestock Grassland Cattle Fence Netting

Cattle Fence Description

FIELD FENCE/FARM FENCE is also a kind of popular fence for fields or agriculture, also called farm fence or grassland fence. It is woven by high tensile hot dipped galvanized wire. It is a type of very economical fence for the farm, orchard, fields, grasslands, forest zone,etc. The formation of knotted is automatic twist plait by the line wire and the cross wire. And the spacing between the line wire is normally different, smaller spacing in the bottom of mesh panel, then the spacing become more bigger than the the bottom one. The design is to protect the little rodents or animals from getting through.
Hinge joint knot is most popular used type for FIELD FENCE / FARM FENCE into two types of fixed knot and hinge joint knot.Hinge joint fence with economic benefits is formed by wrapping the vertical wires around horizontal wires at each intersection. This spring shaped knot will provide the most elasticity to absorb the harshest impact energy as well spring back into its original shape.

Cattle Fence Specifications

1. Materials: Low carbon galvanized wire, hot dipped galvanized high carbon wire, low

carbon cold galvanized wire.
2. Knot types:Hinge Kont & Fixed Knot
3. Surface treatment:
Class a: Hot dipped galvanized hinge joint field fece(zinc coated:220-260g/m2)
Class b: Hot dipped galvanized hinge joint field fence(zinc coated:60-70g/m2)
Class c: Electro galvanized hinge joint field fence(zinc coated:15-20g/m2)
4. Mesh wire diameter:1.8mm~2.5mm
5. Edge wire diameter: 2.0mm~3.2mm

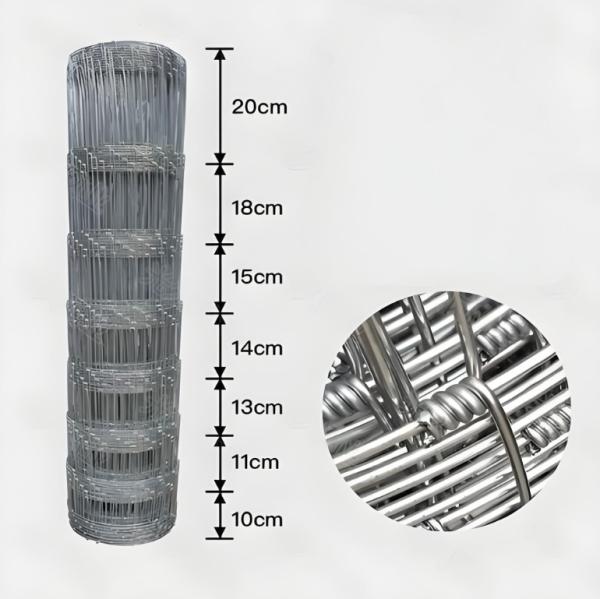

6. Opening in cm: (Warp) 15-14-13-11-10-8-6; (Weft) 15-18-20-40-50-60-65
7. Height: 0.8m,1.0m,1.2m,1.5m, 1.7m, 2.0m, 2.3m. We can also make as the

request of the customer.
8. Length: 50m-100m(According to the request of the customer)

Product Feature Highlights

Novel structure, strong and precise, flat mesh, uniform mesh, strong integrity, toughness, not close together, non-slip, compressive and other characteristics are widely used in: zoo fence, construction site fence, family raising, slope greening, garden greening net, wildlife park, grassland, pasture and other fencing grazing places, especially used in pasture fence project, It can play a very important role in realizing rotational grazing and protecting grassland, and can also be used for isolation and protection of rare flowers, forests and planting parks.

Cattle Fence Mesh Application:

1)Protect your investment with our most reliable comfinement for cattle, hogs and other large animal.

2) Able to withstand the demands of corralling large animal herds

3) Ideal for all terrains,as well as corrals andpastures

4) Special wire crimps withstand even the most severe weather by allowing the fence to expand and contract

5) Galvanized wire resists weathering as wells as wear and tear

Cattle Fence Advantages

Costs the same as a 5 strand barbed wire fence.

Stronger than a 9 gauge hinged joint or barbed wire fence.

Lasts 3 times longer than traditional hinged joint.

Will remain tighter and won't lose its shape.

Better able to absorb impact and maintains its tension even during severe temperature and climate changes.

Uses up to 40% less posts when compared to barbed wire so requires less labor time and is easier to install.

Does not sag or squash down the way traditional hinged joint farm fence does.

Cattle are unable to put their head through the fence.

Kinder to animals and less damage to the animal's hide.

Superior design means that maintenance is negligible.

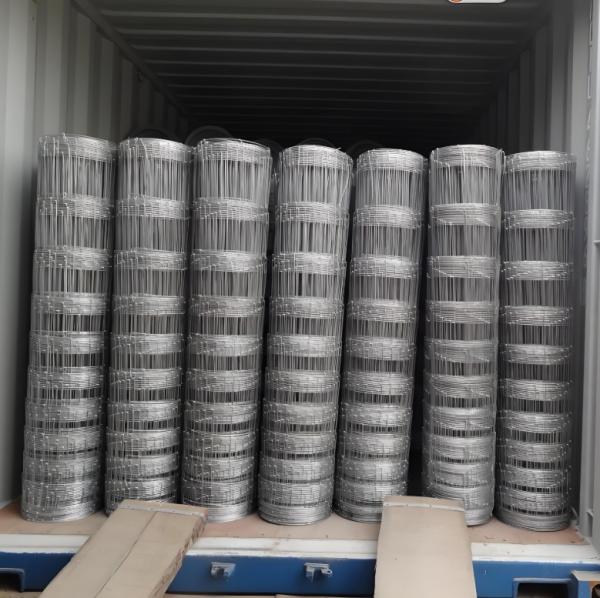

Packing & Loading

FAQ

Q: Are you a manufacture?
A: Yes, we have been in providing the products in this field for 20 years.

Q: Is customized available?
A: Yes, according to your detailed drawings you provide.

Q: Can I get a pcs of your product samples?
A: Yes, free samples will be provided anytime.

Q: What's the payment terms?
A: Usually 30%as deposit, 70%should be pay off before leaving the factory.

Q: What is your usual delivery date?
A: For stocks products, we will load and transport the product to port during 7 working days after receive the advanced payment. For customized products, we need 20- 30 days for the delivery after receive the advanced payment.

Company Information

Anping Laidi Wire Mesh Product Co.,ltd located in Anping County, the Native Land of Wire Mesh in China,mainly produce all kinds of wire mesh fence and wire mesh , wire and so on produts. we do export more than 10years.
Our products are well sold in China and around the world, exported to Canada,America,
Dubai,India,Australia,Kenya,Tanzania and other countries.
