Cattle Fence Description
The hinge joint knots also called field fence ,grassland fence ,cattle wire fence .The hinge joint knot is found on both
galvanized low carbon and high tensile wire products.

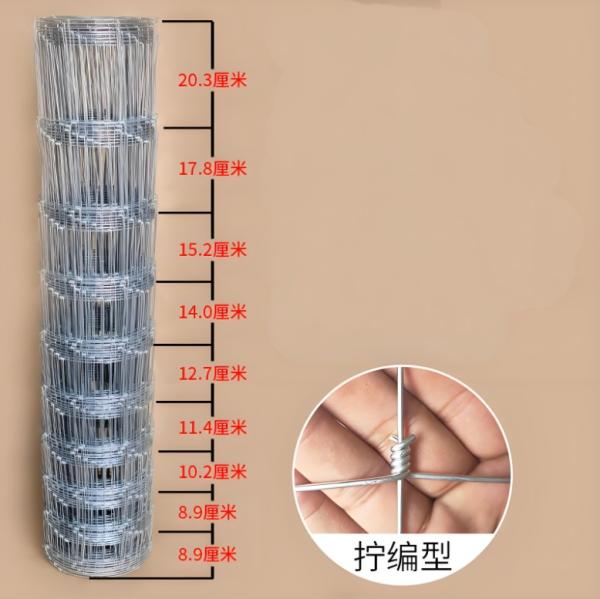

This is the most common knot in agricultural fencing. The knot is formed by wrapping the vertical stay wire pieces
around the line wire at each intersection. This design can also absolve animal impact without damage and is the most economical knot choice available. Besides, they also can be used with barbed wire or chicken wire for farm fencing,garden fencing, road fencing, forest fencing and so on.
Cattle Fence Specifications
*Material: low carbon steel wire(Q195), Tensile strength:550N/MM2
*Diameter of all wires used: Top / BOTTOM wire dia: 2.5MM-3.6mm
*Line /stay wire dia area: 1.7MM-2.5mm
*Top and Bottom wire diameter:2.0-3.2mm
*Hardness Mpa of all wires: according to consumer. (700-1400Mpa)
*Uprightness wire space: 5cm-60cm
*High area: 50cm-200cm
*Length for one rolls: 25m-200m
NO. | Specification | Weight | Bottom | Dia. | |
Type | Specification | ( kg) | (mm) | (mm) | |
1 | 7/150/813/50 | 102+114+127+140+152+178 | 20.8 | 2.5 | 2 |
2 | 8/150/813/50 | 89(75)+89+102+114+127+140+178 | 21.6 | 2.5 | 2 |
3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 22.6 | 2.5 | 2 |
4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 23.6 | 2.5 | 2 |
5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.9 | 2.5 | 2 |
6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 26 | 2.5 | 2 |
7 | 9/150/1245/50 | 102+114+127+140+140+152+178+203+229 | 27.3 | 2.5 | 2 |
8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2 |
9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2 |
10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 19.3 | 2.5 | 2 |
Fixed knot fence Features
Field fences have innovative and firm structure, flat surface, uniform opening and good integration. This product offers good flexibility; good pressure resistance, corrosion resistance and weather resistance properties and can serve for a very long time. Even the cut pieces will not deform under pressure. It has excellent corrosion resistance and anti-oxidizing property. Unlike the welded wire mesh fences with the welding spots getting easily broken, our grassland fences are firm forever once installed and make the best materials for protecting grassland, forestry, highway and environments.
Cattle Fence Advantages
Costs the same as a 5 strand barbed wire fence.
Stronger than a 9 gauge hinged joint or barbed wire fence.
Lasts 3 times longer than traditional hinged joint.
Will remain tighter and won't lose its shape.
Better able to absorb impact and maintains its tension even during severe temperature and climate changes.
Uses up to 40% less posts when compared to barbed wire so requires less labor time and is easier to install.
Does not sag or squash down the way traditional hinged joint farm fence does.
Cattle are unable to put their head through the fence.
Kinder to animals and less damage to the animal's hide.
Superior design means that maintenance is negligible.
Applications:
High Tensile Field Fences are made to with stand the hardness of the grassland climate,which are made of graduated steel wire mesh knotted by special machines popularly used in fields and grassland for breeding of deer, cattle and other animals. Our fence products enjoy innovative design, firm structure, flat surface, uniform opening, good flexibility and long service life. The steel wire used in producing field fence offers high strength against the violent clashing of horses and other animals to ensure the safety. The zinc coating layer adds corrosion and rust resistance for the fences.
FAQ
Q: Are you a manufacture?
A: Yes, we have been in providing the products in this field for 20 years.
Q: Is customized available?
A: Yes, according to your detailed drawings you provide.
Q: Can I get a pcs of your product samples?
A: Yes, free samples will be provided anytime.
Q: What's the payment terms?
A: Usually 30%as deposit, 70%should be pay off before leaving the factory.
Q: What is your usual delivery date?
A: For stocks products, we will load and transport the product to port during 7 working days after receive the advanced payment. For customized products, we need 20- 30 days for the delivery after receive the advanced payment.
Company Information
Anping Laidi Wire Mesh Product Co.,ltd located in Anping County, the Native Land of Wire Mesh in China,mainly produce all kinds of wire mesh fence and wire mesh , wire and so on produts. we do export more than 10years.
Our products are well sold in China and around the world, exported to Canada,America,
Dubai,India,Australia,Kenya,Tanzania and other countries.
Quality Management Certification
The company has passed ISO quality management system certification, and constantly implement and improve. In order to ensure that employees have a safe and healthy working environment, our company has carried out and
passed the safety production standardization and occupational hazard risk control system certification. The
company adheres to the quality management policy of "excellence, zero defect", and integrates the quality consciousness and quality concept into every aspect of the company's operation.
Quality Control

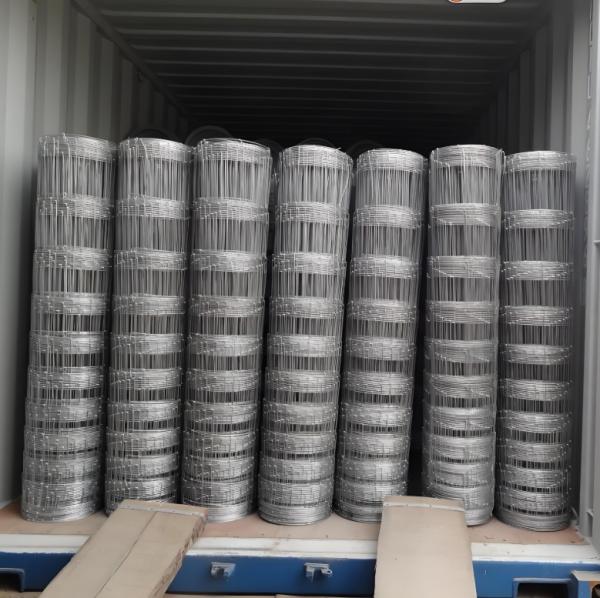

Packing & Delivery
