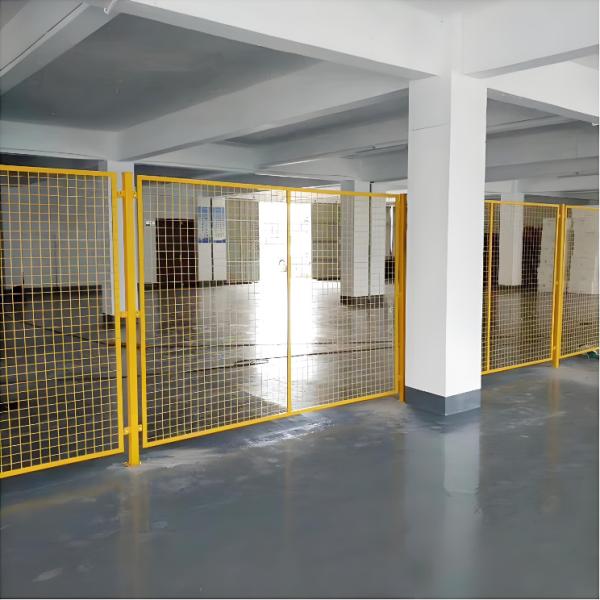

Yellow Color Welded Workshop Isolation Net Partition Metal Wire Mesh Fencing
Yellow Color Welded Workshop Isolation Net Partition Metal Wire Mesh Fencing
Yellow Color Welded Workshop Isolation Net Partition Metal Wire Mesh Fencing
Yellow Color Welded Workshop Isolation Net Partition Metal Wire Mesh Fencing
Yellow Color Welded Workshop Isolation Net Partition Metal Wire Mesh Fencing
Yellow Color Welded Workshop Isolation Net Partition Metal Wire Mesh Fencing
Specifications
Brand Name :
LaiDi
Model Number :
W089
Certification :
ISO9001
Place of Origin :
Hebei,China
MOQ :
100pcs
Price :
$5-$200
Payment Terms :
L/C, T/T
Supply Ability :
2000 meters per day
Delivery Time :
15days
Packaging Details :
Pallet
Material :
Low Carbon Steel
Color :
Yellow
Product Name :
Warehouse Steel Fence
Style :
Industrial
Height :
1-2.5m
Length :
2-3m
Wire :
4mm
Mesh Opening :
50x50mm
Post :
Square Post
Packing :
Metal Pallet
Usage :
Workshop or warehouse
Description

Yellow Color Welded Workshop Isolation Net Partition Metal Wire Mesh Fencing

Introduction of Metal Wire Mesh Fencing

A guardrail is a device used for protection and isolation, usually composed of cross bars, vertical bars and columns, used to
limit the movement or range of activities of people, vehicles or other items to prevent accidents or dangerous situations. It is
used in factories, workshops and other places to isolate the working area to ensure the safety of workers and production order.
Surface dipping process, pure color, not easy to fade. Easy to disassemble and assemble, good reusability, and the fence can be rearranged as needed. Carefully polished, strict requirements for smooth, harsh process can be customized according to customer needs.

Parameters of Workshop isolation network

Fence Height(cm)

Panel

Width

Wire

Diameter

 Mesh size(mm) Folds No. Post style Post size(mm) Post Length(cm)
103

200cm

225cm

250cm

3.5mm

4.0mm

4.5mm

5.0mm

6.0mm

8.0mm

50x50

50x100

50x150

50x200

60x120

75x150

 2 Square post 1 40x60x1.5 150
123 2 40x60x1.8 170
150 2/3 40x60x2 197
153 2/3 Square post 2 60x60x1.5 200
170 3 60x60x1.8 217
173 3 60x60x2 220
180 3 60x60x2.5 227
193 3 Peach post 50x70 240
200 3/4 70x100 250
203 3/4 Holland post 48x1.5 250
240 4 290

Surface Treatment:

1. Hot-dip Galvanized: To work electro chemical protection, to prevent steel rusting from inside to outside
2. Zinc Phosphate: To enhance the adhesive power of coated film to base steel
3. Epoxy Zinc-rich Powder Coat: Excellent antiseptic performance and impact resisting performance
4. Polyester Color Coat: Good wear and UV-stability, Long Anti-dirty performance and self-cleaning

Color: All our fence can be powder coated in a colour of your choice

Application Scenarios


1.Robot Workstation Isolation
Surrounding automated machinery or robotic arms to prevent accidental contact and ensure operator safety.
2.Warehouse Logistics Sorting Areas
Dividing storage zones for efficient material handling and segregating high-traffic areas from restricted zones.
3.Production Line Segmentation
Separating assembly lines or hazardous equipment areas to streamline workflows and comply with safety regulations.

Yellow Color Welded Workshop Isolation Net Partition Metal Wire Mesh Fencing

Yellow Color Welded Workshop Isolation Net Partition Metal Wire Mesh Fencing

Advantages of Workshop Isolation Network:

They are different from woven wire mesh fences. Due to the line welding processing, it has more firm structure and longer service life compared with woven wire fences.
Hot dipped zinc coated welded wire fence offers thicker zinc plating than electro galvanized one and stronger zinc plating adhesion, while costs a little higher.
PVC coated welded wire fence has more colors available than galvanized welded fences.
The surface treatment of welded wire fence include electro galvanized, hot-dipped galvanized, PVC coated

Packing Method

In Metal Pallet

Yellow Color Welded Workshop Isolation Net Partition Metal Wire Mesh Fencing
