Specifications
Product Name :
3D wire mesh fence
Service :
Video of installation
Brand Name :
LaiDi
Model Number :
V01
Certification :
ISO9001:2016
Place of Origin :
Hebei, China
MOQ :
50sets
Price :
US$4-US$50
Payment Terms :
T/T,L/C
Supply Ability :
200 sets per day
Delivery Time :
15-20 days
Packaging Details :
iron steel pallet
Color :
Customized
opening :
50*200mm
Usage :
Garden fence
Mesh Size :
50*50mm,60*60mm
Post Shape :
Peach post. Square post
Wire Diameter :
5.0mm
Material :
Low carbon steel
Frame Finishing :
PVC coated
Panel Size :
1.5m
Description

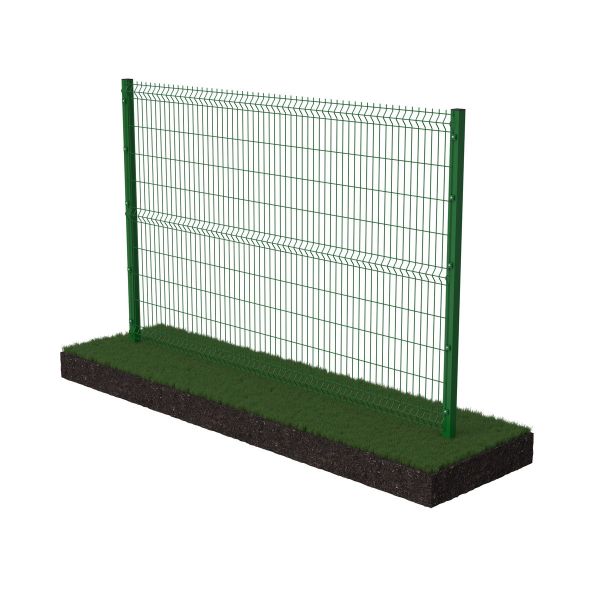

3D Curved Welded Mesh Fence 1.5m PVC Coated 3D Curved Wire Mesh Fence
Product Overview

Security Fence is well known worldwide as an anti-climb and anti-cut barrier, providing high-quality carbon steel wire protection. Designed for attractive, long-lasting, and secure perimeter protection for industrial and commercial properties, public utilities, and perfectly suited for electronic alarm and detection systems with no blind spots for CCTV. Ideal for airports, secure units, and prisons.

3D curved Welded Wire Mesh Fencing provides essential safety and security protection against various threats. This affordable and durable fencing solution is widely used for residential walls and offers easy installation on fences.

1.5m Height 3D Wire Mesh Fence with 50x200mm Opening Made from Low Carbon Steel
Specifications
  • Material: High quality low carbon steel wire (Q235, Q195, S235J2)
  • Process: Material → Straighten and cutting → Welded → Making folds → Parkerising → Galvanized/Hot-dipped → PVC coated → Packing
  • Colors: Green (RAL6005), White (RAL9010), Grey (RAL7004), Yellow (RAL1021), Black (RAL9005), Blue (RAL5005), and custom colors available
Specification Details
Wire diameter 3-5mm (powder spraying); 3-5mm before coating, 4-6mm after coating (PVC coated)
H x W (mm) Height: 0.63-2.4m, Width: 2m, 2.5m, 3.0m
Opening (mm) 50x100mm, 50x150mm, 50x200mm, 75x150mm, etc.
PVC coated thickness (mm) 1.0mm for above 3mm wire; 0.8mm-0.9mm for 3mm or thinner wire
Peach Post 50x70x1.2mm, 70x100x1.2mm, post height matches panel height
Surface treatment Wire mesh panel: galvanized + PVC coated, galvanized + powder spraying. Post: galvanized + powder spraying
Features

3D wire mesh fence connects directly with the mesh without additional buckles, providing effective anti-theft and anti-disassembly protection. Features include beautiful appearance, durability, simple structure, and fast, convenient installation.

Applications
  • Industrial construction fence
  • Airport, railway station service area
  • Highway enclosure
  • Warehouse protection fence
  • School sports field, stadium
  • Garden, park security fence
  • Residential site
  • Agriculture security fence
  • Animal enclosure fence
Fence Post Options
Post Type Dimensions Thickness
Profile post 48mm / 60mm 10/1.1/1.2mm
Square post 40x40, 60x60mm 1.5/2.0/2.5mm
Peach Post 50x70, 70x100mm 10/1.1/1.2mm
Rectangle Post 40x60, 60x80mm 1.5/2.0/2.5mm
I Post 70x44, 100x66mm 1.5/2.0/2.5mm
1.5m Height 3D Wire Mesh Fence with 50x200mm Opening Made from Low Carbon Steel
Fence Panel Specifications
Parameter Specifications
Width 2.50m, 2.75m, 3.0m
Height 830, 1030, 1230, 1430, 1630, 1830, 2030, 2230, 2430mm
Mesh Size 55x100mm, 50x150mm, 50x200mm, 55x200mm, 75x150mm, 60x200mm
Wire thickness 4.0mm, 4.5mm, 5.0mm
Curves 2, 3, 3, 4, 4, 4, 6
Finish Hot dip galvanized, galvanized and epoxy coated, galvanized and PVC coated
Nos. of brackets 2, 3, 3, 4, 4, 4, 6
1.5m Height 3D Wire Mesh Fence with 50x200mm Opening Made from Low Carbon Steel
Advantages
  • Fence posts made with concrete pouring, low cost
  • High strength, good overall stability
  • Color plastic coating/spraying layer provides excellent anti-corrosion and decorative effects
  • Harmonious perimeter appearance with good outlook
After-Sales Service
  • Assistance with finding lowest freight costs for FOB or CIF pricing
  • Full cooperation with third-party inspections and production photo updates
  • Support with shipment arrangement and customs clearance
  • Comprehensive installation, maintenance, and repair instructions
Frequently Asked Questions

Q: Can you provide a free sample?
A: Yes. Contact our sales team for details. Samples are available with charge.

Q: What is your delivery time?
A: Approximately 15-25 days after receiving 30% deposit.

Q: Are you a real factory?
A: Yes. We have manufactured and exported wire mesh since 2013.

Q: What are the payment terms?
A: Available by T/T or Irrevocable L/C at sight.

Q: How can I get a quotation?
A: Please contact us directly.

Product Connection Type
1.5m Height 3D Wire Mesh Fence with 50x200mm Opening Made from Low Carbon Steel
Product Accessories
1.5m Height 3D Wire Mesh Fence with 50x200mm Opening Made from Low Carbon Steel
Packing & Delivery
  • Fence panel: Plastic film / wooden case + metal/wooden pallet
  • Fence post: Plastic bag + metal/wooden pallet (with rainhat installed)
  • Fence accessories: Plastic bag + carton box (clips & screws)

Accessories available in different types and materials as needed. No special attachment required for piping installation - uses propulsion device for easy gripping, fast installation, and cost reduction.

1.5m Height 3D Wire Mesh Fence with 50x200mm Opening Made from Low Carbon Steel
