Specifications
Brand Name :
LaiDi
Model Number :
RW-05
Certification :
ISO9001
Place of Origin :
Hebei, China
MOQ :
10tons
Price :
US$700-US$800
Payment Terms :
T/T
Supply Ability :
10tons/day
Delivery Time :
7-10 work day
Packaging Details :
Wooded Pallet
Product Name :
Razor Barbed Wire
Material :
Low Carbon Steel
Surface Treatment :
Galvanized
Certificate :
ISO9001
Razor Type :
Cross Razor
Wire Diameter :
2.5mm
Color :
Sliver
Inner Wire Material :
Iron wire + electric galvanized
Razor Thickness :
0.5mm-0.6mm
Core Wire Diameter :
1.8mm-2.75mm (2.5mm)
Razor Distance :
8cm
Surface Treament :
Hot Dipped Galvanized
Barbed Width :
15mm
Bundle Quantity :
50 coils
Bladetype :
Sharp razor blades
Kind :
BTO-22,BTO-28,BTO-30 etc
Main Wire Diameter :
2.5mm
Specification :
BTO-22 ,CBT-65
Razor Length :
BTO-22
Length Per Roll :
20m
Chemical Composition :
Fe
Specimen :
Free provide
Description
Double Strand Concertina Tape BTO-22 Razor Barbed Wire Coil Galvanized
Product Overview

Razor Barbed Wire, also known as concertina razor wire, razor fencing wire, razor blade wire, or dannert wire, is a modern security fencing material manufactured from hot-dipped galvanized steel sheets or stainless steel sheets. Featuring sharp blades and strong core wire, this product offers superior protection, enhanced fencing strength, easy installation, age resistance, and long-lasting durability.

Technical Specifications

Materials: High quality low carbon steel wire, PVC wire (available in blue, green, yellow, and other colors)

Weaving Method: Twisting and weaving

Primary Uses: Grass boundary protection, railway security, highway fencing, and perimeter security applications

Product Characteristics

Manufacturing Technology: Wire core with precision-punched blades wrapped around the core wire in a single manufacturing process

Key Features: Superior protection capabilities, excellent intimidation properties, easy installation, and extended service life

Available Types: BTO-10, BTO-12, BTO-15, BTO-18, BTO-22, BTO-28, BTO-30, CBT-60, CBT-65

Configuration Shapes: Linear, cross-type, linear coil-type, cross-coil type

Application Areas: Border quarantine, military facilities, prisons, villa areas, military bases, airports, and high-security installations

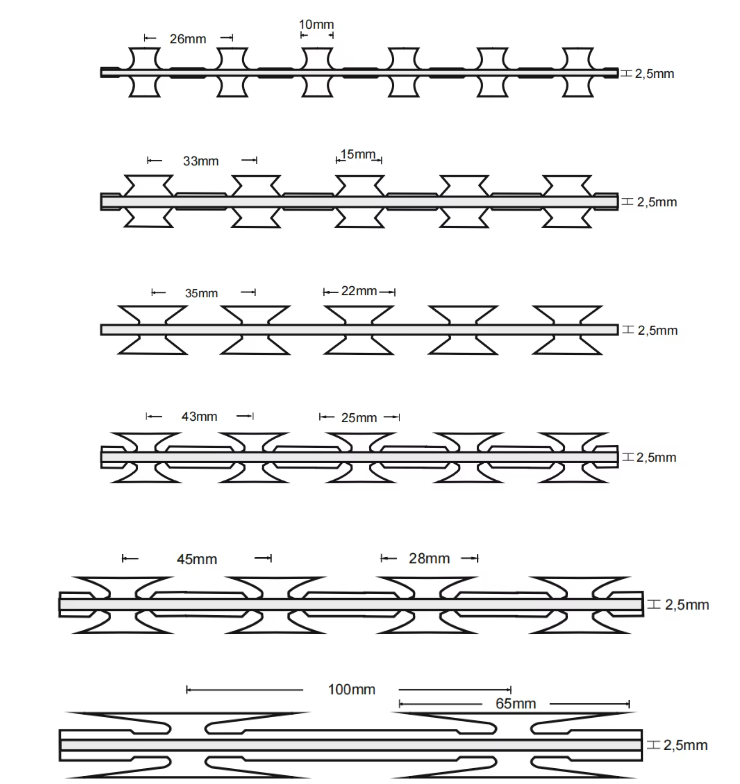

Detailed Specifications
Reference Model Thickness (mm) Wire Diameter (mm) Barb Length (mm) Barb Width (mm) Barb Spacing (mm)
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-15 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-28 0.5±0.05 2.5±0.1 28 15 45±1
CBT-30 0.5±0.05 2.5±0.1 30 18 45±1
CBT-60 0.6±0.05 2.5±0.1 60±2 32±1 100±1
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 100±1
Galvanized Double Strand BTO-22 Razor Barbed Wire for High Security Fencing
Key Features
  • Sharp edges effectively deter intruders and thieves
  • High stability, rigidity, and tensile strength prevents cutting or destruction
  • Resistant to acid, alkali, and harsh environmental conditions
  • Excellent corrosion and rust resistance
  • Compatible with other fencing systems for enhanced security
  • Easy installation, removal, and maintenance
  • Durable construction ensures long service life
Applications

Double twist barbed wire provides high-level security fencing fabricated with high-tensile wire. The design effectively frightens and stops aggressive perimeter intruders with piercing razor blades that make climbing and touching extremely difficult. Widely used in prisons, detention facilities, government buildings, and national security installations. Also popular for residential properties, cottage fencing, and private building security.

Galvanized Double Strand BTO-22 Razor Barbed Wire for High Security Fencing Galvanized Double Strand BTO-22 Razor Barbed Wire for High Security Fencing

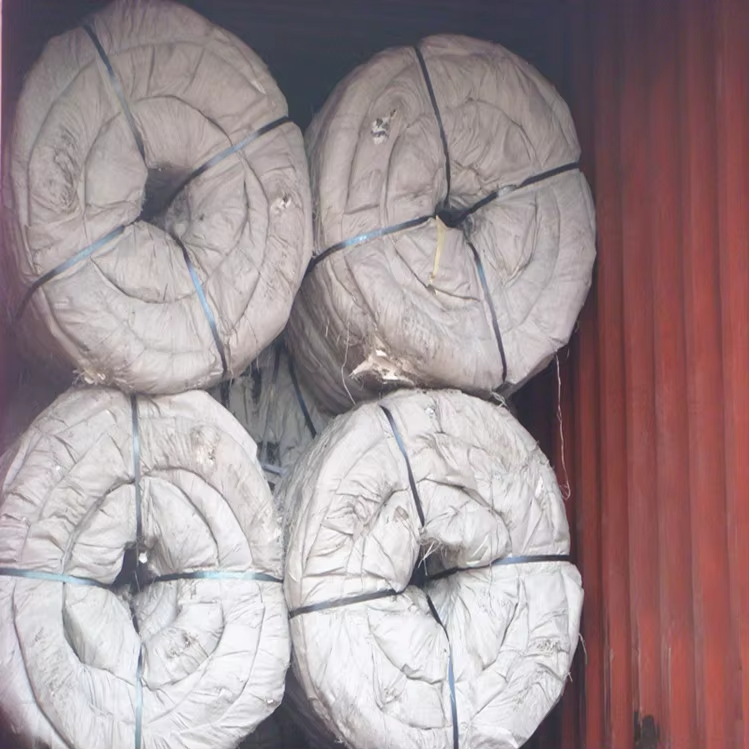

Packaging Options
  • Compression rolls: 5 rolls, 10 rolls, or more rolls as one bundle
  • Water-proof paper inside with woven bag outside
  • Carton packaging: 1 roll, 3 rolls, or 5 rolls in one carton
  • Custom packaging available as per customer request
Galvanized Double Strand BTO-22 Razor Barbed Wire for High Security Fencing
Manufacturer Information

Anping LaiDi Wire Mesh Products Co., Ltd. is an integrated industry and trade enterprise located in Anping County, Hebei Province - China's wire mesh production base. The company operates advanced manufacturing machinery and maintains ISO9001:2000 international quality standards. Specializing in gabion mesh, steel mesh, fence mesh, slope mesh, windproof mesh, hook mesh, plastic coated wire, and decorative mesh products. Exports to Europe, South America, Japan, South Korea, United States, Canada, Middle East, and Southeast Asia.
