Specifications
Brand Name :
LaiDi
Model Number :
G02
Certification :
ISO9001:2015
Place of Origin :
Hebei, China
MOQ :
50 pcs
Price :
US$4-US$200
Payment Terms :
T/T
Supply Ability :
500 pcs per day
Delivery Time :
15-20 days
Packaging Details :
in bulk
Product Name :
Galvanized steel grating
Material :
Carbon steel
Surface Treatment :
Hot dipped galvanized
Color :
Sliver
Type :
Cross bar
Certificate :
ISO9001
Application :
Office building
Warranty :
1 year
Grate Mesh :
40x100mm
Steel Thcikness :
5.0mm
Description
Plain I-Bar Walkway Galvanized Steel Grating For Trench Steel Drain Grate
Product Specifications
Attribute Value
Product Name Galvanized steel grating
Material Carbon steel
Place of Origin Hebei, China
Surface Treatment Hot dipped galvanized
Color Silver
Type Cross bar
Certificate ISO9001
Application Office building
Brand Name LaiDi
Warranty 1 year
Grate Mesh 40x100mm
Steel Thickness 5.0mm
Product Description

Heavy Duty Galvanized Grating 3CM Brico Depot Steel Grates For Driveways Grate

Steel grating is typically made from steel bars or flat steel that are welded or locked together to form a grid pattern. The bars are usually arranged in a parallel or perpendicular manner, creating an open grid with gaps between them. These gaps allow for the passage of air, water, and light, while still providing a sturdy surface for walking or supporting heavy loads. There are different types of steel grating available, including welded steel grating, press-locked grating, riveted grating, and swage-locked grating. Each type offers unique characteristics and advantages depending on the specific application and requirements.

Steel grating is made from carbon steel or stainless steel, which provides excellent strength, durability, and corrosion resistance. The bars can be flat or serrated to enhance traction and prevent slipping. The grating panels are often hot-dip galvanized or coated with a protective finish to further enhance its resistance to corrosion and extend its lifespan.

Plain I-Bar Walkway Galvanized Steel Grating For Trench Steel Drain Grate

Technical Specifications
Material Low carbon, Middle carbon, stainless steel, Q235
Bearing Bar Type Flat bar, serrated bar, I bar, etc
Bearing Bar (Width*Thickness) 25*3m 25*4, 25*4.5, 25*5, 30*3, 30*4, 30*4.5, 30*5, 32*5, 40*5, 50*5, 65*5, 75*6, 75*10...100*10mm etc; I bar: 25*5*3, 30*5*3, 32*5*3, 40*5*3 etc US standard: 1''*3/16'', 1/4''*3/16'', 1/2''*3/16'', 1''*1/4'', 1/4''*1/4'', 1/2''*1/4'', 1''*1/8'', 1/4''*1/8'', 1/2''*1/8'' etc
Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Cross Bar Pitch 24 to 200mm
Cross Bar Size 6*6, 8*8, 10*10, 12*12mm etc.
Surface Treatment Hot dipped galvanized, painted, self-color, etc.
Key Features
  • Resistant to extremely high temperature
  • Corrosion resistance and alkaline resistance
  • Anti-rust
  • Skid resistance
  • Very rigid surface can stand heavy wear and tear
Plain I-Bar Walkway Galvanized Steel Grating For Trench Steel Drain Grate

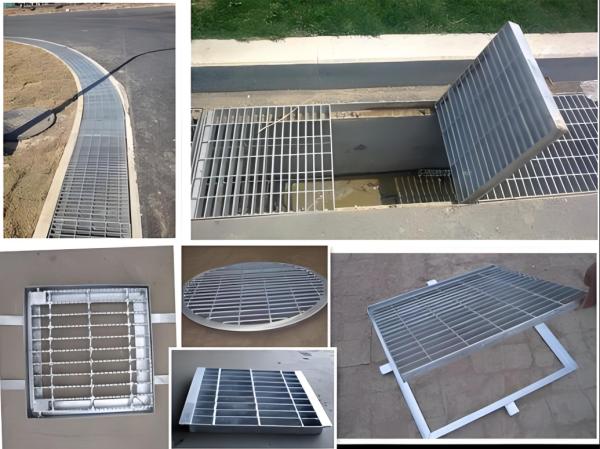

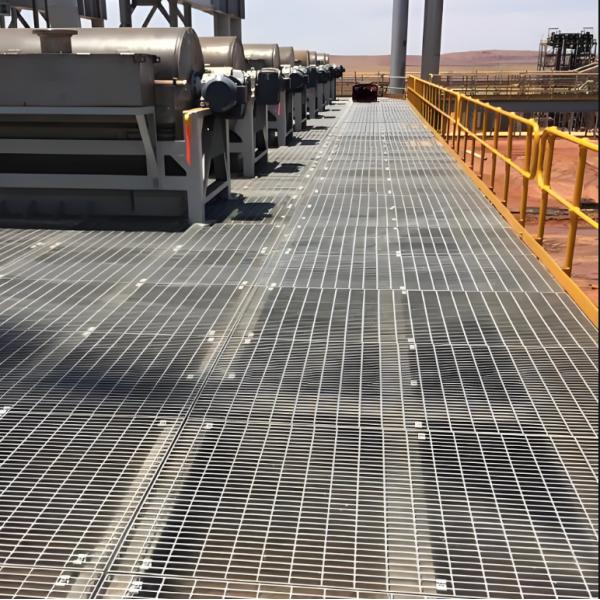

Applications
  • Flooring and Platforms
  • Pedestrian Walkway and Ramps
  • Stair Treads
  • Drain and Manhole Covers
  • Trench Grates
  • Bridge Decking

Plain I-Bar Walkway Galvanized Steel Grating For Trench Steel Drain Grate

Plain I-Bar Walkway Galvanized Steel Grating For Trench Steel Drain Grate

Packing & Delivery
Plain I-Bar Walkway Galvanized Steel Grating For Trench Steel Drain Grate
Frequently Asked Questions
1. Are you factory/manufacturer or trader?

We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra charges by the middle man or trader.

2. Which countries do you export to?

Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand, South Korea and so on.

3. Can I get free samples?

If the sample is available, yes, can be free. If unavailable, need to customize.

4. What is your minimum order quantity?

Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.

5. Which payment method you can accept?

Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.
