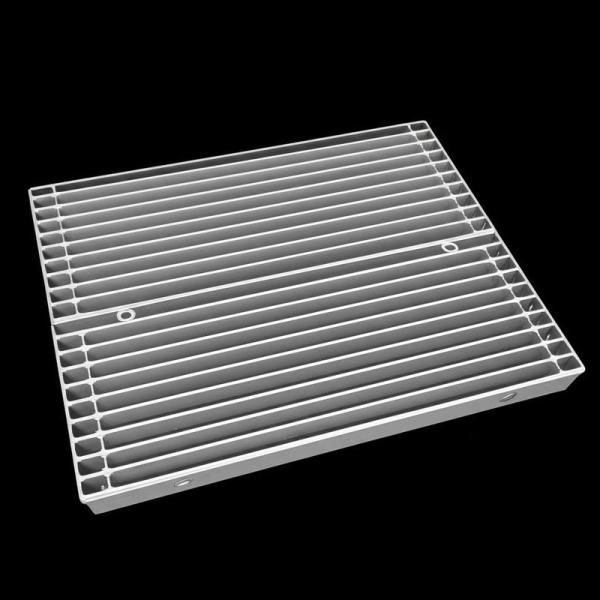

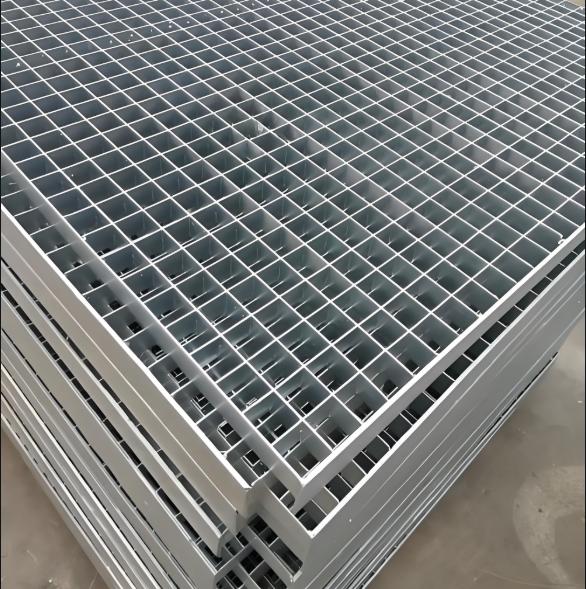

Hot Dipped Galvanized Serrated 30x100MM Platform Steel Grating
Hot Dipped Galvanized Serrated 30x100MM Platform Steel Grating
Hot Dipped Galvanized Serrated 30x100MM Platform Steel Grating
Hot Dipped Galvanized Serrated 30x100MM Platform Steel Grating
Hot Dipped Galvanized Serrated 30x100MM Platform Steel Grating
Hot Dipped Galvanized Serrated 30x100MM Platform Steel Grating
Hot Dipped Galvanized Serrated 30x100MM Platform Steel Grating
Hot Dipped Galvanized Serrated 30x100MM Platform Steel Grating
Specifications
Brand Name :
LaiDi
Model Number :
G02
Certification :
ISO9001:2015
Place of Origin :
Hebei, China
MOQ :
50 pcs
Price :
US$4-US$200
Payment Terms :
T/T
Supply Ability :
500 pcs per day
Delivery Time :
15-20 days
Packaging Details :
in bulk
Product Name :
Galvanized steel grating
Material :
Mild steel
Surface Treatment :
Hot dipped galvanized
Color :
Sliver
Type :
Serrated
Certificate :
ISO9001
Application :
Industrial
Grate Mesh :
30x100mm
Steel Thcikness :
3mm
Bearing Bar Pitch :
40mm
Technique :
Welding
Description
Hot Dipped Galvanized Serrated 30x100MM Platform Steel Grating
Hot Dipped Galvanized Welded Drainage Channel Steel Grating

Galvanized grating, also called galvanized steel grating or galvanized steel bar grating, refers to the steel bar grating made of steel bar with hot dipped galvanized surface treatment.

The carbon steel provides an economical, high strength for uses in most industrial and commercial applications. And hot dipped galvanized surface treatment supplies excellent corrosion resistance performance for durability.

Steel grating is available in various material, such as stainless steel, aluminum, and galvanized steel. Among them, the galvanized steel grating is the most cost effective and economical type with long service life and high load bearing stength. And it is the most widely used in industrial, commercial and residential projects.

Galvanized Steel Grating Specification
Item Description
Bearing bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10,100x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16', 1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8', 1 1/2'x1/8' etc.
Bearing bar pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Cross bar pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' & 4' etc
Material Grate ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc
Surface treatment Black, self colour, hot dip galvanized, painted, spray coating

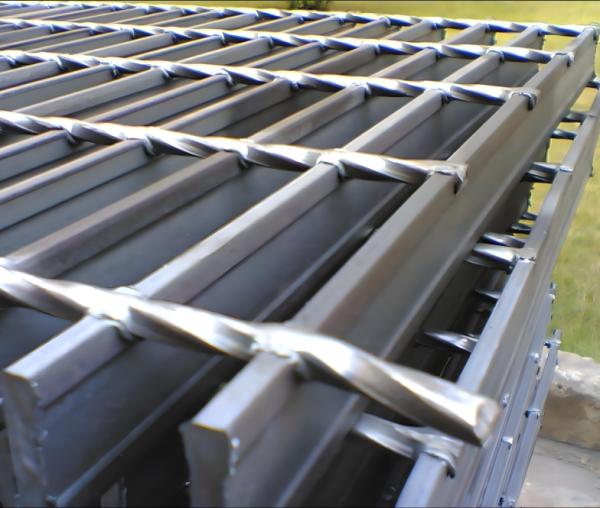

Grating Type Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan :JIS
Application
  • Rotation ways, channels, and platforms for pump rooms and engine rooms in various ships
  • Flooring in various bridges such as railway bridge sidewalks, over-bridges across the street
  • Platforms for oil extraction sites, car washing sites and air towers
  • Fencings for car-parks, buildings and roads
  • Drainage trench covers and drainage pit covers for high strength
Steel Grating Type
Hot Dipped Galvanized Serrated 30x100MM Platform Steel Grating
Versatile and High Quality
Steel grating has been widely used in various industries worldwide. Primarily used as platform plates, ditch covers, stair treads, and building ceilings, our steel grating is manufactured through welding flat steel and bars at specific distances, followed by cutting, opening, and edging processes. The products feature high strength, light structure, excellent load-bearing capacity, and easy installation. The hot-dipped zinc coating provides superior anti-corrosion resistance.
Product Features
  • Lightweight construction
  • High strength and durability
  • Excellent corrosion resistance
  • Good ventilation and light transmission
  • Attractive and long-lasting appearance
  • Simple installation process
Production Process
Hot Dipped Galvanized Serrated 30x100MM Platform Steel Grating
Steel Grating Applications

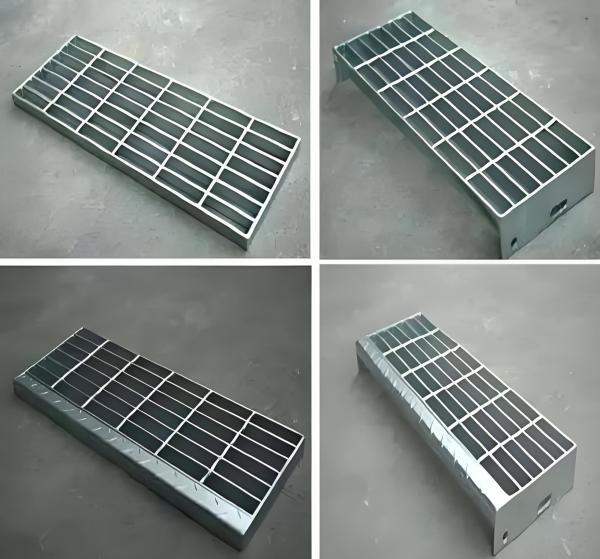

  • Stair stepping boards
  • Ditch covers
  • Steel ladders
  • Tree pool covers
  • Working platforms
  • Catwalk steel grating
  • Steel driveway grates grating
Hot Dipped Galvanized Serrated 30x100MM Platform Steel Grating
Packing & Delivery
  • Bandage and Paperboard: Generally applies to neat steel plate
  • Screw Locking Method: Uses 4 screw rods through the aperture of the steel grid for high strength
  • Steel Pallet: Traditional export packing
Hot Dipped Galvanized Serrated 30x100MM Platform Steel Grating
FAQ

1. Are you factory/manufacturer or trader?
We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra charges by the middle man or trader.

2. Which countries do you export to?
Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand, South Korea and so on.

3. Can I get free samples?
If the sample is available, yes, can be free. If unavailable, need to customize.

4. What is your minimum order quantity?
Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.

5. Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.
