Specifications
Brand Name :
SX-FENCE
Model Number :
40*60mm
Certification :
SGS,CE,BV,ISO
Place of Origin :
Anping, Hebei, China
MOQ :
100
Price :
$39/set
Payment Terms :
T/T, L/C, Western Union, Cash; etc.
Supply Ability :
10000
Delivery Time :
15-25 days after getting the payment
Packaging Details :
metal pallet and carton box
Product Name :
Double Wire Fence
Frame Material :
Metal
Metal Type :
Steel
Color :
Blue
Length :
2200mm
Post OD :
40*60mm
Mesh size :
50x200mm
type :
Fence Panel
Usage :
Highway Fence
Material :
Low Carbon Steel Wire
Description

Twin Wire Black Welded Double Wire Mesh Fence

Double Wire Fence Introduction

Double wire mesh fence is high quality low-carbon steel wire as materials. It have one vertical wire and two horizontal wires. It is stronger than normal welded wire mesh, wire diameter: 6/5/6mm, 8/6/8mm.

656mesh consists of double 6mm horizontal wires together with single 5mm vertical wires.

868mesh consists of double 8mm horizontal wires together with single 6mm vertical wires.

Double Wire Fence Specifications

Height x WidthPanel(mm) Mesh size(mm) Wire Dia(mm) Wire Dia(mm) Wire Dia(mm)
Post Height (mm)
630X2500 50X200 8X2 + 6 6X2 + 5 6X2 + 4 1100
830X2500 50X200 8X2 + 6 6X2 + 5 6X2 + 4 1300
1030X2500 50X200 8X2 + 6 6X2 + 5 6X2 + 4 1500
1230X2500 50X200 8X2 + 6 6X2 + 5 6X2 + 4 1700
1430X2500 50X200 8X2 + 6 6X2 + 5 6X2 + 4 1900
1630X2500 50X200 8X2 + 6 6X2 + 5 6X2 + 4 2100
1830X2500 50X200 8X2 + 6 6X2 + 5 6X2 + 4 2400
2030X2500 50X200 8X2 + 6 6X2 + 5 6X2 + 4 2600
2230X2500 50X200 8X2 + 6 6X2 + 5 6X2 + 4 2800
2430X2500 50X200 8X2 + 6 6X2 + 5 6X2 + 4 3000

Double Wire Fence Application

1> house roof

2> building board

3> Schools
4> Recreation
5> Commercial

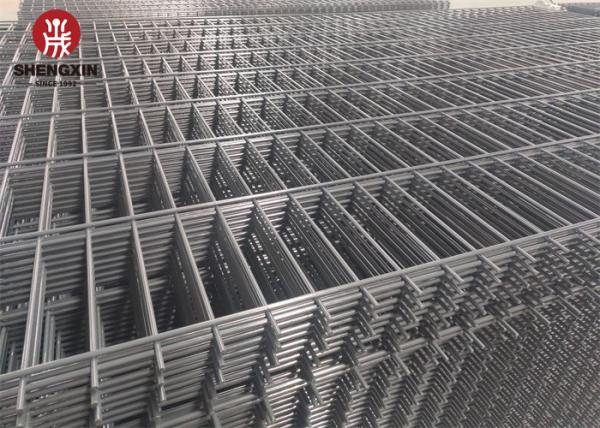

Black Welded 2200mm Double Wire Mesh Fence High Security Anti Climb

Double Wire Fence Advantage

1> Simple to installation: With accessories like brackets and clamp bars, the panel could be installed into the posts easily.
2> Ideal for secondary operations: The fencing could be disassembled into parts easily for secondary use.

3> High security fence, the close mesh means it is virtually impossible to climb.

4> The close mesh also means that the fence is very difficult to cut with anything but power tools.

Double Wire Fence Packing

1> Plastic film at the bottom to avoid the panel be destroyed
2> 4 metal corners to ensure the panel strong and uniform
3> wood plate at the top of pallet to keep the under panel
4> pallet tube size:40*80mm tubes at the botom vertical position.

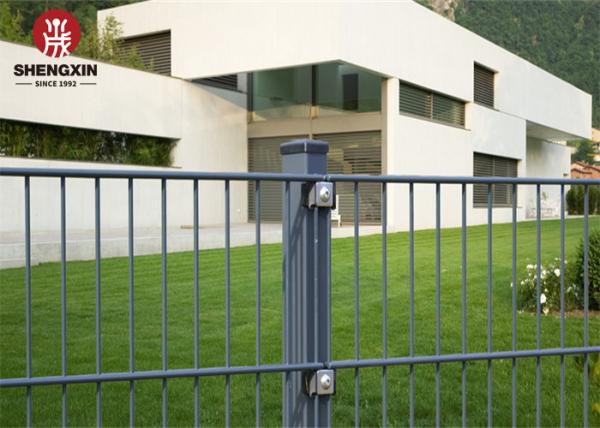

Black Welded 2200mm Double Wire Mesh Fence High Security Anti Climb

Company Introduction


Shengxin is a China-based company. We have nearly 30 years of fence producing experience, and nearly 15 years of exporting experience. Our main products are Single Wire Mesh Fence, Double Wire Mesh Fence, Anti Climb Fence, Chain Link Fence, and also our new product: metal dog cage.

Black Welded 2200mm Double Wire Mesh Fence High Security Anti Climb

Company Advantage


1> We have customers from more than 100 countries, like America, Canada, Mexico, Brazil, Peru, Germany, Russia, France, Poland, Australia, New Zealand, India, Algeria, South Africa, Zimbabwe, PNG, etc.

2> With the location in Anping County, China, it was established in 1992, and then in the year of 1997, Anping County Shengxin Metal Products Co.,Ltd was registered, which has become a well-known established corperation in wire mesh business.

3> We have 11 sets if welding machines, 3 PVC coating production lines, 1 advanced powder coating production line, 2 powder making production lines, and 3 folds marking machines. The production capacity can reach 8,000 square meters per day.

4> With the authentication of ISO 9001, CE, BV, we win our market and get customers' confidednce by abiding conctract, sticking to prestige and strict quality control. We have been enjoying good reputation in both domestic and overseas market

Service

1> Free Sample can be offered
2> Free Drawings can be offered
3> OEM and ODM order are accepted
4> Good Quality + Factory Price + Quick Response + Reliable Service
5> Provide visualization services to view production progress anytime and anywhere
6> Rich exporting market experience offered to enlarge your market
7> Warranty: Best quality products to be manufactured. if the quality is not meet your demand, we are sure to give you full compensation in any way, money back or free reorder.
