Specifications
Brand Name :
SX-FENCE
Model Number :
868
Certification :
SGS,CE,BV,ISO
Place of Origin :
Anping, Hebei, China
MOQ :
100
Price :
$39/set
Payment Terms :
T/T, L/C, Western Union, Cash; etc.
Supply Ability :
10000
Delivery Time :
15-25 days after getting the payment
Packaging Details :
metal pallet and carton box
Product Name :
Double Wire Fence
Frame Material :
Metal
Metal Type :
Steel
Color :
Green
Length :
1.8m
Post OD :
40*60mm
Mesh size :
50x200mm
Service :
3D modeling
Usage :
Garden Fence
Material :
Galvanized Welded Wire Mesh Fencing
Description

With Ground Screw Post Anchor Galvanized Welded Wire Mesh Fencing

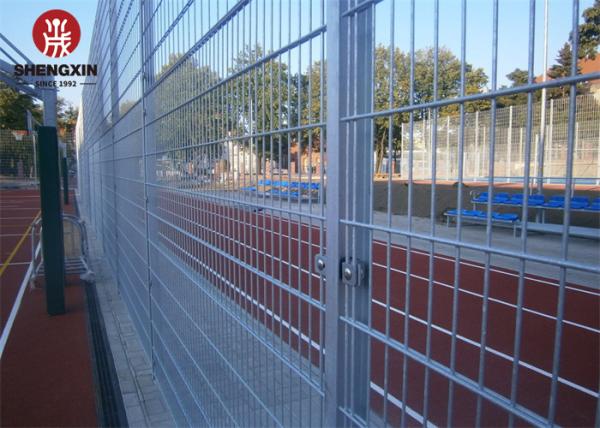

Double Wire Fence Introduction


System is a rigid yet unobtrusive mesh fencing system. It is often used as a perimeter fence for industrial or commercial premises and sports pitches where a strong mesh fencing system is required.

Using high quality Iron Rod as raw material, the welded wire panels, after galvanization, Powders Primer, and Powders top coating; it can resist the corrosive and ultraviolet radiation very strongly. The thickness of powder coating is 100-120 microns usually. The choose wire diameters are 6MM*2+5MM*1. 8MM*2+6MM*1. It obtains high strong powers to resist the construction.

Double Wire Fence Specifications

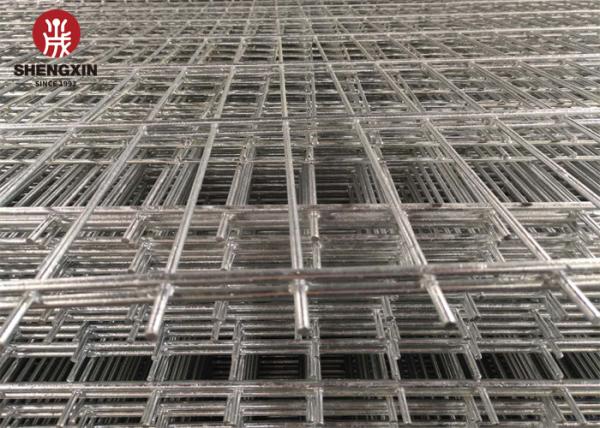

Welded Double Mesh Fence
Fence Panel Wire Diameter(Common Wire Type) 8/6/8mm, 6/5/6mm, 5/4/5mm, and material is Q195, Q235
Mesh Size 50*200mm /55*200mm/50*150mm/55*100mm, can be customized
Panel height From 0.4m - 3.03m
Panel Width 2.0m, 2.5m as standard
Surface Treatment Hot-dipped Galvanized then PVC coatingElectric Galvanized then PVC coatingHot-dipped Galvanized
Fence Post Dimensions of Type Rectangle post/Rectangle post/Peach post/Round post, material is Q195-Q235, most common is 60x40mm post:Post (4 options with different sections)
•60x60mm and 50x50mm SHS steel Post
•40x60mm RHS steel post
•50x70 and 70x100 Peach shape post
•48mm and 60mm Round section post
Surface Treatment Hot-dipped Galvanized then PVC coatingHot-dipped Galvanized
Fence Accessories Clips/Clamps(Link Post and Panel) Metal Clips and Plastic Clips, there are over 6 type as choice
Rainhat or caps for posts Metal caps or plastic caps

Double Wire Fence Application

1> airport
2> seaport
3> poultry

4> Home garden

5> road safety

Post 40x60mm Galvanized Welded Wire Mesh Fencing With Ground Screw

Double Wire Fence Advantage

•Easy Installation
•Cost effective
•Nice looking
•Different options on color according to the using environment
•Strong anti rust and anti corrosion ability
•Different options of install clips such as metal or plastic
•Different options of post

Double Wire Fence Packing

1> Plastic film at the bottom to avoid the panel be destroyed
2> 4 metal corners to ensure the panel strong and uniform
3> wood plate at the top of pallet to keep the under panel
4> pallet tube size:40*80mm tubes at the botom vertical position.

Post 40x60mm Galvanized Welded Wire Mesh Fencing With Ground Screw

Company Introduction


Shengxin is a China-based company. We have nearly 30 years of fence producing experience, and nearly 15 years of exporting experience. Our main products are Single Wire Mesh Fence, Double Wire Mesh Fence, Anti Climb Fence, Chain Link Fence, and also our new product: metal dog cage.

Post 40x60mm Galvanized Welded Wire Mesh Fencing With Ground Screw

Company Advantage


1> We have customers from more than 100 countries, like America, Canada, Mexico, Brazil, Peru, Germany, Russia, France, Poland, Australia, New Zealand, India, Algeria, South Africa, Zimbabwe, PNG, etc.

2> With the location in Anping County, China, it was established in 1992, and then in the year of 1997, Anping County Shengxin Metal Products Co.,Ltd was registered, which has become a well-known established corperation in wire mesh business.

3> We have 11 sets if welding machines, 3 PVC coating production lines, 1 advanced powder coating production line, 2 powder making production lines, and 3 folds marking machines. The production capacity can reach 8,000 square meters per day.

4> With the authentication of ISO 9001, CE, BV, we win our market and get customers' confidednce by abiding conctract, sticking to prestige and strict quality control. We have been enjoying good reputation in both domestic and overseas market

Service

1> Free Sample can be offered
2> Free Drawings can be offered
3> OEM and ODM order are accepted
4> Good Quality + Factory Price + Quick Response + Reliable Service
5> Provide visualization services to view production progress anytime and anywhere
6> Rich exporting market experience offered to enlarge your market
7> Warranty: Best quality products to be manufactured. if the quality is not meet your demand, we are sure to give you full compensation in any way, money back or free reorder.
