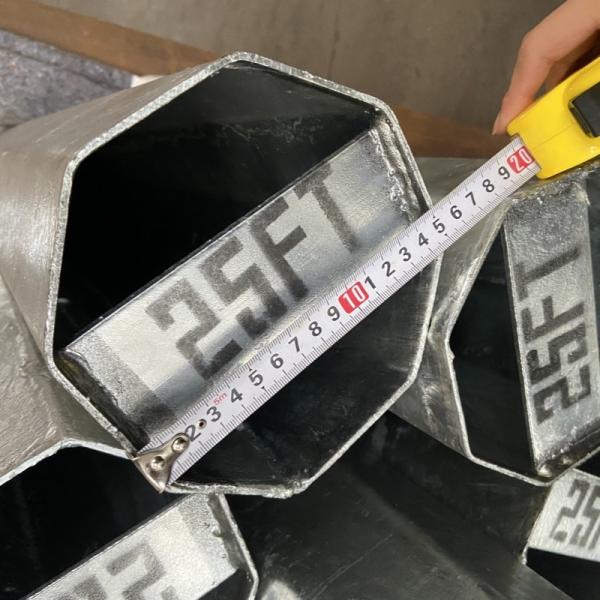

Q345 2.5mm Galvanized Electric Pole Philippines Nea Standard Metal Electric Pole 25FT
Q345 2.5mm Galvanized Electric Pole Philippines Nea Standard Metal Electric Pole 25FT
Q345 2.5mm Galvanized Electric Pole Philippines Nea Standard Metal Electric Pole 25FT
Q345 2.5mm Galvanized Electric Pole Philippines Nea Standard Metal Electric Pole 25FT
Specifications
Brand Name :
Hongxin
Model Number :
HX-25
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 tons
Price :
800 USD
Payment Terms :
T/T,L/C
Supply Ability :
1000 tons per month
Delivery Time :
Within 15 working days
Packaging Details :
Bare delivery, Sack Wrap or Fabrics
Height :
25FT/7620mm
Shape :
Octagonal/ 8 sides
Material :
Q355/Q235
Thick :
2.75mm/ 3.0mm
Load :
350KGF
Surface :
Hot dip galvanized / Black tar painting
Galvanizing Thick :
Min average over 86 microns
Applied :
15kv power line
Warranty :
5 years
Description

Q345 2.5mm Thick Philippines Nea Standard Galvanized 25FT Steel Pole

China Steel Pole Factory

Over 25 Years History

Pole height: 25FT(7620mm)

Shape: Octagonal

Material: ASTM A572 with Fy≥50ksi min yield strength (equals to Q355B Steel)

Top diameter: 120mm

Butt diameter: 152mm

Thickness: 2.5mm

Design load: 300KGF

Material

Raw material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.

China-GB

America-ASTM

Equivalent

Q255

Grade D

SS400,S235JO

Q355

Grade50[345]

S355JR

Q420

Grade60[415]

S420NL

Q460

Grade65[450]

S460NL

Q345 2.5mm Galvanized Electric Pole Philippines Nea Standard Metal Electric Pole 25FT

Manufacturing Process

Our factory owns advanced production lines and machines including two bending calibration machines, hydraulic plate shearing machine, cutting machine, slitting machine, two gas welding machines, hydraulic straightener, etc. All insure us to produce steel poles with best quality.

Q345 2.5mm Galvanized Electric Pole Philippines Nea Standard Metal Electric Pole 25FT

Finshed Products

Steel Pole of National Electrification Administration

(PHILIPPINES)

Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,45FT.

Height

(ft)

Thickness

(mm)

Butt Diameter

(mm)

Top

Diameter

(mm)

Design

Load

(kg)

Yield

Stress

(MPA)

Zinc

Coating

(microns)

25

2.5

152

120

300

345

86

30

3.0

226

127

500

345

86

35

3.0

248

127

500

345

86

40

3.0

317

127

500

345

86

45

4.0

328

127

750

345

86

Q345 2.5mm Galvanized Electric Pole Philippines Nea Standard Metal Electric Pole 25FT

Inspection
To ensure the quality, we have professional engineers to inspect the poles during the manufacturing and before delivery.
We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.

Q345 2.5mm Galvanized Electric Pole Philippines Nea Standard Metal Electric Pole 25FT

Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.

FAQ

1. Are you a manufacturer or a trading company?
A:We are the direct factory manufacturer and the trading company.
2. Where is your company located?
A:Our factory is located in Yinhe Road No.3, Wanshi town, Jiangsu, China(mainland).
3. What are your main products?
A:Our main products are electric poles, street lighting poles, high mast pole, telecommunication tower poles, traffic signal poles, wind generation poles, etc.
4. What's your nearest port?
A: Shanghai Port is our nearest port.
5. What's your payment term?
A: Normally 30% deposit and rest by TT before shipping. Or L/C.
6. What's your delivery time?
A: Normally within 15 working days. If our factory is busy and your quantity is large, then around one month.
7. What's your price term?
A: Price Term: EXW, FOB, CFR or CIF.
EXW: Poles Cost
FOB: Pole Cost + Land Transportation + Fee on Port
CFR: Pole Cost + Land Transportation + Fee on Port + Sea Freight
CIF: Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.
