13.2kv 25ft 30ft 35ft 40ft 45ft 8 Sided Steel Utility Pole Hot-Dip Galvanizing For Distribution Power Line
13.2kv 25ft 30ft 35ft 40ft 45ft 8 Sided Steel Utility Pole Hot-Dip Galvanizing For Distribution Power Line
13.2kv 25ft 30ft 35ft 40ft 45ft 8 Sided Steel Utility Pole Hot-Dip Galvanizing For Distribution Power Line
13.2kv 25ft 30ft 35ft 40ft 45ft 8 Sided Steel Utility Pole Hot-Dip Galvanizing For Distribution Power Line
Specifications
Brand Name :
Hongxin
Model Number :
HX-2545
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 tons
Price :
800 USD
Payment Terms :
T/T,L/C
Supply Ability :
1000 tons per month
Delivery Time :
Within 15 working days
Packaging Details :
Bare delivery, Sack Wrap or Fabrics
Height :
25FT-45FT
Shape :
Octagonal/ 8 sides
Material :
Q355
Thick :
2.5mm/ 2.75mm/ 3.0mm/ 3.75mm/ 4.0mm
Load :
300KGF/ 500KGF/ 750KGF
Surface :
Hot dip galvanized
Galvanizing Thick :
Min average over 86 microns
Welding :
AWS D1.1
Applied :
15kv power line
Warranty :
5 years
Description

13.2KV 25FT 30FT 35FT 40FT 45FT 8 Sided Hot-dip Galvanizing Steel Pole for Distribution Power Line

The Hot-dip Galvanized NEA standard steel poles are widely used in the Philippines 13.2KV power lines. With over 25 years history, advanced machines, experienced engineers and skilled workers, Yixing Hongxin Illumination Facilities Co.,Ltd. is the direct factory specialized in manufacturing the distribution steel poles.

Height: 25FT-45FT

Material: Q355B/ ASTM A36

Thickness:2.5mm/ 2.75mm/ 3.0mm/ 3.75mm/ 4.0mm

Shape: Octagonal/ 8 sides

Design Load: 300KGF/ 500KGF/ 750KGF

13.2kv 25ft 30ft 35ft 40ft 45ft 8 Sided Steel Utility Pole Hot-Dip Galvanizing For Distribution Power Line

Material

Raw material of general-purpose steel GB/T1591-2008, Q255, Q355, Q420, Q460 used in China.

China-GB

America-ASTM

Equivalent

Q255

Grade D

SS400,S235JO

Q355

Grade50[345]

S355JR

Q420

Grade60[415]

S420NL

Q460

Grade65[450]

S460NL

Manufacturing Process

Our factory owns advanced production lines and machines including two bending calibration machines, hydraulic plate shearing machine, cutting machine, slitting machine, two gas welding machines, hydraulic straightener, etc. All insure us to produce steel poles with best quality.

13.2kv 25ft 30ft 35ft 40ft 45ft 8 Sided Steel Utility Pole Hot-Dip Galvanizing For Distribution Power Line

Finshed Products

Steel Pole of National Electrification Administration

(PHILIPPINES)

Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,45FT.

Height

(ft)

Thickness

(mm)

Butt Diameter

(mm)

Top

Diameter

(mm)

Design

Load

(kg)

Yield

Stress

(MPA)

Zinc

Coating

(microns)

25

2.5

152

120

300

345

86

30

3.0

226

127

500

345

86

35

3.0

248

127

500

345

86

40

3.0

317

127

500

345

86

45

4.0

328

127

750

345

86

13.2kv 25ft 30ft 35ft 40ft 45ft 8 Sided Steel Utility Pole Hot-Dip Galvanizing For Distribution Power Line

Inspection
To ensure the quality, we have professional engineers to inspect the poles during the manufacturing and before delivery.
We have Lab Test, Workload Test, Steel thickness Test, Galvanization thickness Test, etc.

13.2kv 25ft 30ft 35ft 40ft 45ft 8 Sided Steel Utility Pole Hot-Dip Galvanizing For Distribution Power Line

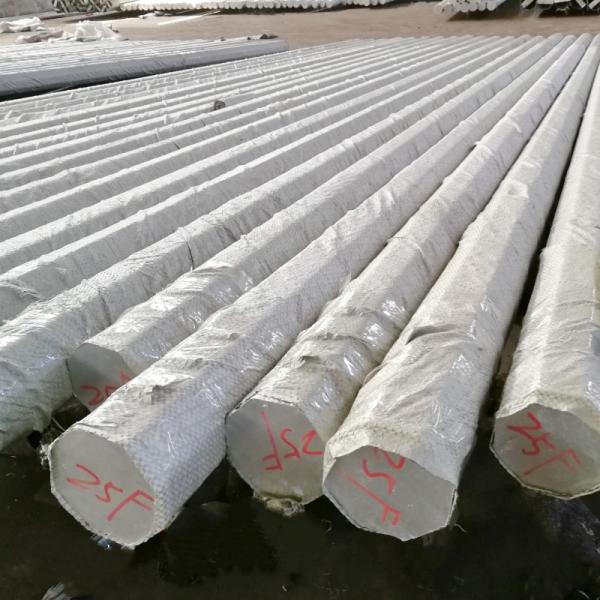

Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.

FAQ

1. Are you a manufacturer or a trading company?
A:We are the direct factory manufacturer and the trading company.
2. Where is your company located?
A:Our factory is located in Yinhe Road No.3, Wanshi town, Jiangsu, China(mainland).
3. What are your main products?
A:Our main products are electric poles, street lighting poles, high mast pole, telecommunication tower poles, traffic signal poles, wind generation poles, etc.
4. What's your nearest port?
A: Shanghai Port is our nearest port.
5. What's your payment term?
A: Normally 30% deposit and rest by TT before shipping. Or L/C.
6. What's your delivery time?
A: Normally within 15 working days. If our factory is busy and your quantity is large, then around one month.
7. What's your price term?
A: Price Term: EXW, FOB, CFR or CIF.
EXW: Poles Cost
FOB: Pole Cost + Land Transportation + Fee on Port
CFR: Pole Cost + Land Transportation + Fee on Port + Sea Freight
CIF: Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.
