Skewable Jack Truss Wooden Connectors Skewed Nail Plate Tie Plate Bracket For Trusses
Skewable Jack Truss Wooden Connectors Skewed Nail Plate Tie Plate Bracket For Trusses
Skewable Jack Truss Wooden Connectors Skewed Nail Plate Tie Plate Bracket For Trusses
Skewable Jack Truss Wooden Connectors Skewed Nail Plate Tie Plate Bracket For Trusses
Specifications
Brand Name :
Cangzhoufutong
Model Number :
Truss Connector
Place of Origin :
China
MOQ :
500
Price :
USD0.5-3.0
Payment Terms :
L/C,T/T
Supply Ability :
10000 pcs/day
Delivery Time :
5-8 work days
Packaging Details :
Carton
Material :
G300 Z275 Galvanised Steel
Surface :
Galvanized or powder coating
Size :
3 1/2" x 3 3/8"
Key words :
Truss Connector
Description

Skewable Jack Truss Connector, Skewed Nail Plate Tie Plate Bracket for Trusses Wood Timber Connectors, Size: 3 1/2" x 3 3/8", Metal Steel Thickness 1.5mm

About this item
Jack Truss Connector, Carbon Steel + Surface Galvanizing Finished
Length: 3 1/2"(88mm), Width: 3 3/8"(86mm), Thickness: 1.5mm(16 Gauge)
Adjustable from 0° to 90°(shipped with 135° bend)
Staggered nail pattern for a secure connection that resists splitting
Anti-corrosion, wear resistance, anti-rust. Smooth surface and edges without burrs.
Skewable Jack Truss Wooden Connectors Skewed Nail Plate Tie Plate Bracket For TrussesSkewable Jack Truss Wooden Connectors Skewed Nail Plate Tie Plate Bracket For Trusses
Product description
Application:
Jack Truss Connector. Adjustable from 0° to 90° (shipped with 135° bend). Nail hole locations allow for easy installation.

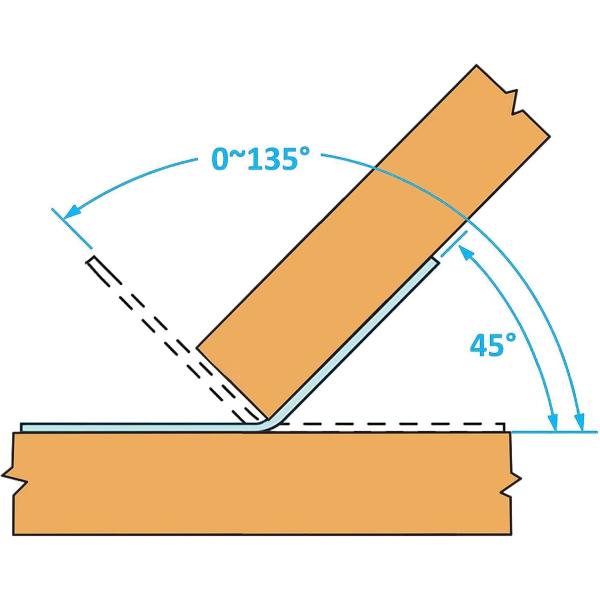

Position the jack truss on the inside of the bend line with the end of the jack truss flush with the bend line. Bend the skewed nail plate to the desired position (one bend cycle only).

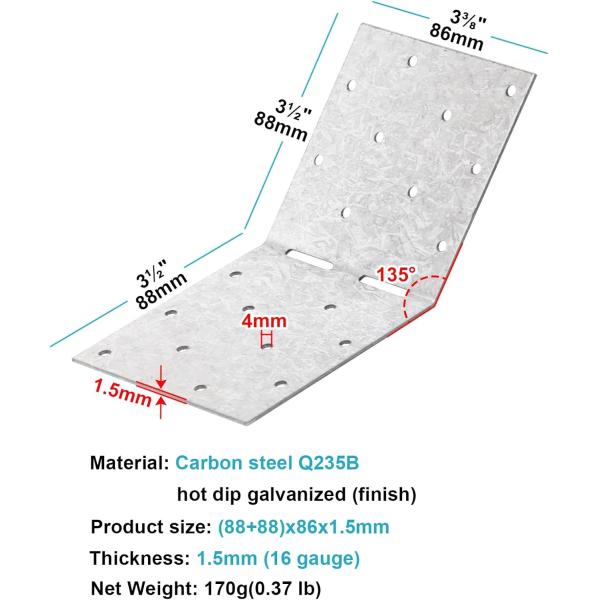

Specification:
Material: Carbon Steel Q235B
Surface Treatment: Hot Dip Galvanized
Appearance: smooth surface and edges without burrs
Color: Silver
Adjustable from 0° to 90°(shipped with 135° bend)
Thickness: 1.5mm(16 Gauge)
Length: 3 1/2"(88mm)
Width: 3 3/8"(86mm)
20 Nail Holes Diameter: Ø4mm, Apply M4 screw
Weight: 6 oz(170g)-1 piece, 4 lb(1.82kg)-10 pieces
Package Content:
10 x Jack Truss Connector

FAQ

1,Q: Are you trading company or manufacturer?
A: We are factory and manufacturer.
2,Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide free samples ?
A: Yes, the sample is free.
4,Q: What is your terms of payment ?
A:30% T/T in advance,70% before shipment.
5.Could you make custom size and OEM packing?
Yes, we could make custom metal products and OEM package according to your design.
6,Q:What's your main products?
A:Our main products include gang nail plates,knuckle nail plates,strip brace,joist hanger,and other timber connectors.
The products and packages could be customized according to your requirements.
7,Q:for your timber connector, what material grade will be used?
A: G300-Z275 galvanized sheet or stainless steel (Accept custom Service).
8, Q:What's the material thickness of your products?
A:0.6mm to 10mm
3,How many years has your factory been in the field of wooden building fittings?
-We have been in this field for 15 years, and we have 5 engineers, 10 technicians, and 200 employees;
