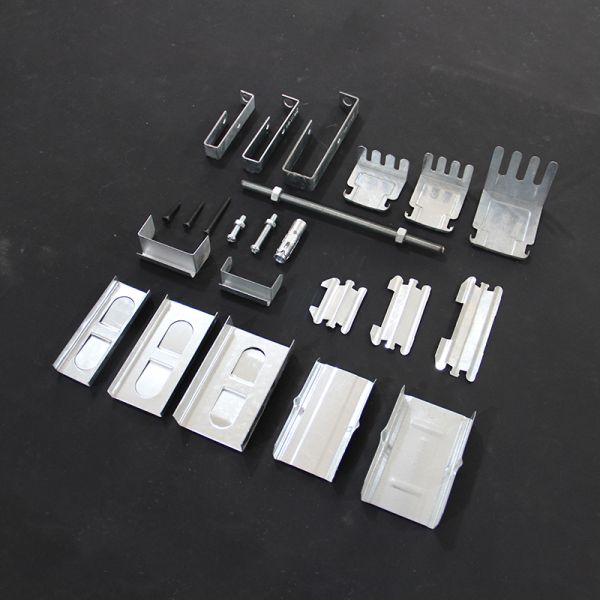

Gypsum Channels Board Accessories Galvanized Steel Drywall Profile Metal Stud/Track/Omega/C/U Furring Channel For Dry Lining

Gypsum Channels Board Accessories Galvanized Steel Drywall Profile Metal Stud/Track/Omega/C/U Furring Channel For Dry Lining

Product Description:

The selection of Metal Stud accessories should be determined based on specific construction requirements and environmental conditions. For example, in high humidity environments, accessories with good rust prevention performance should be selected; In areas that require a high fire rating, accessories treated with fire-resistant coatings should be selected. In addition, the installation of accessories must strictly follow the construction specifications to ensure the safety and stability of the entire partition system.

Features:

Made of galvanized steel sheet or alloy steel material, with low density and light weight (only one-third of the weight per unit area of traditional wooden keel), it greatly reduces building loads and is easy to transport and install.

The thickness of steel plates is usually 0.5-1.5mm, and the section moment of inertia is enhanced through cold bending forming technology, which significantly improves the bending and shear resistance compared to wooden materials, ensuring the stability of large-span structures.

The thickness of the surface galvanized layer is ≥ 8 μ m (superior products ≥ 14 μ m), effectively isolating oxygen and moisture. It can withstand corrosion for more than 15 years in humid environments such as bathrooms and basements.

Hanging components: The upper ceiling accessories must withstand a load of ≥ 2000N (equivalent to 200kg static pressure), with a residual deformation of ≤ 2.0mm; the non upper ceiling accessories must withstand a load of ≥ 1200N to meet the safety requirements of different scenarios.

Under the static load test of the keel component, the deflection of the load-bearing keel is ≤ 5.0mm (L/200), and the deflection of the cladding keel is ≤ 10.0mm (L/100), far exceeding the national standard and adapting to dynamic loads such as earthquakes and wind pressure.
